MINIATURE TRANSLATION STAGES
|
|

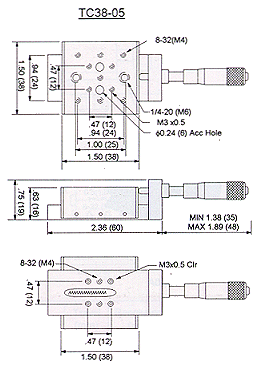

TC38 - 05:
|
|
|
Crossed roller bearing for smooth precision movement
Special coating surface reducing glare and reflection
Generous array of Imperial or Metric tapped mounting holes
38 x 38 mm mounting platform
13 mm travel
|
| Stock Number |
Drive Type |
Travel (mm) |
Resolution (µm) |
Load (kg) |
| TC38 - 05 |
Micrometer |
13 |
2 |
2 |
| TC38 - 05A |
100-pitch screw |
13 |
1 |
2 |
|
To order Metric model, add "M" to the stock number. |
| Stock Number |
Description |

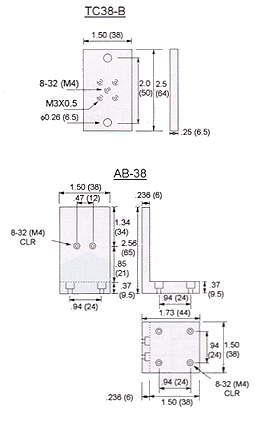

| TC38 - B |
Baseplate |
| AB - 38 |
90° angle bracket |
|
To order Metric model, add "M" to the stock number. |
|
|
TS30:
Crossed roller bearing for smooth precision movement
31.5 x 31.5 mm mounting platform
13 mm travel
| Stock Number |
Drive Type |
Travel (mm) |
Resolution (µm) |
Load (kg) |
| TS30 |
Micrometer |
13 |
2 |
2 |
| TS30A |
100-pitch screw |
13 |
1 |
2 |
|
To order Metric model, add "M" to the stock number. |
| Stock Number |
Description |

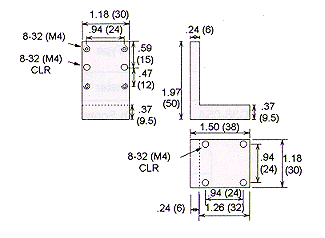

| AB - 30 |
90° angle bracket |
|
To order Metric model, add "M" to the stock number. |
Our application engineers and technical staff will
be happy to help you with any further enquiries. Monday through
Friday, 9 am to 6 pm, Singapore Standard Time, call (65)-4409746 or email us
anytime at smart_sense@yahoo.com. We response within
24 hours.
|
