COMPLETE OPTICAL TABLE SYSTEMS

High quality steel honeycomb table tops: Greatly reduces weight and yet with increased rigidity maximum mechanical stability is guaranteed and damping improved. An array of mounting holes in tops are provided to attach optical components to the table.

Any directional vibration isolation: Isolators provide excellent isolation in all directions by the specially designed horizontal vibration removal mechanism and the isolator's natural frequency is very low.

High damping: Pneumatic isolator utilizes pneumatic damping technics, and reduces the amplification at the natural frequency and prevents the system from rocking in response to transient disturbances.

Self-levelling top: The constant height is maintained and controlled by an air regulator valves actuated by table motion. This system also provides self-levelling of the table top when loads are moved across the work surface or sudden load change occurs

Optical tables are available in a choice of two types of table supports; DVIO-I type, pneumatic isolators and DVIO-R type, rigid supports.

DVIO-I type: High performance pneumatic isolators are used to support optical tops for the precision optical experiments.

DVIO-R type: Economical rigid supports are used to support optical tops when the environmental vibration level is low.

Ordering copmplete systems:

DVIO	-	I	-	2010	M	-	200t	(800H)
		(1)		(2)	(3)		(4)	(5)

(1)	I: Pneumatic isolation support; R: Rigid Support
(2)	Size of optical tops (W x D) mm
(3)	Hole patterns-threads: metric (M) or inch (E)
(4)	Thickness of optical tops (50/100/200/300t)
(5)	Height (from floor to top skin)

ORDERING CHART

MODEL	SIZE
MODEL	W (mm)	D (mm)	t (mm)
DVIO-I/R-0909	900	900	100
DVIO-I/R-1007	1000	750	100
DVIO-I/R-1206	1200	600	100
DVIO-I/R-1209	1200	900	100
DVIO-I/R-1212	1200	1200	100
DVIO-I/R-1506	1500	600	100
DVIO-I/R-1507	1500	750	100/200
DVIO-I/R-1509	1500	900	100/200
DVIO-I/R-1510	1500	1000	100/200
DVIO-I/R-1512	1500	1200	100/200
DVIO-I/R-1515	1500	1500	200
DVIO-I/R-1806	1800	600	100

MODEL	SIZE
MODEL	W (mm)	D (mm)	t (mm)
DVIO-I/R-1807	1800	750	200
DVIO-I/R-1809	1800	900	200
DVIO-I/R-1812	1800	1200	200
DVIO-I/R-1815	1800	1500	200
DVIO-I/R-2010	2000	1000	200
DVIO-I/R-2015	2000	1500	200
DVIO-I/R-2409	2400	900	200
¹DVIO-I/R-2412	2400	1200	200/300
¹DVIO-I/R-2415	2400	1500	200/300
¹DVIO-I/R-3012	3000	1200	200/300
²DVIO-I/R-3015	3000	1500	200/300
²DVIO-I/R-3612	3600	1200	200/300
²DVIO-I/R-3615	3600	1500	200/300

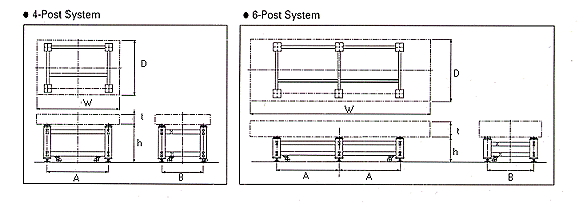

NOTE:
1: Available in 4 or 6-post system.
2: 6-post system only.

Click here if you are looking for optical table tops or breadboards.

Looking for table supports? Then click here.

Our application engineers and technical staff will be happy to help you with any further enquiries. Monday through Friday, 9 am to 6 pm, Singapore Standard Time, call (65)-4409746 or email us anytime at smart_sense@yahoo.com. We response within 24 hours.
