PRECISION ROTARY STAGES

360° coarse/± 5° fine adjustment

360° scale graduated in 1° increments

Resolution: 10 arc-sec

All inside moving parts are made of stainless steel

100-pitch fine adjustment

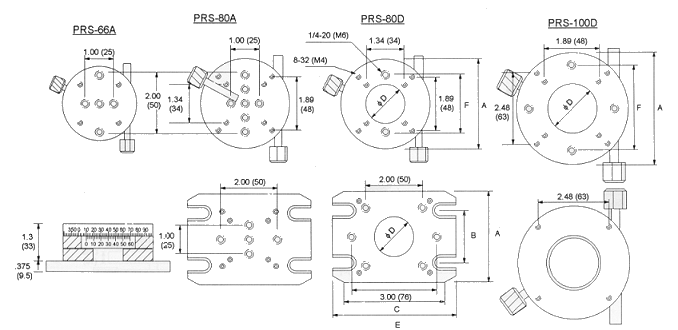

Stock Number	A	B	C	D	E	F	Platform
PRS - 66A	2.6 (66)	1.00 (25)	3.00 (75)	–	3.54 (90)	–	Solid
PRS - 80A	3.15 (80)	2.00 (50)	3.00 (75)	–	3.54 (90)	–	Solid
PRS - 80D	3.15 (80)	2.00 (50)	3.00 (75)	1.58 (40)	3.54 (90)	2.00 (50)	Aperture
PRS - 100D	3.94 (100)	2.00 (50)	4.00 (100)	2.00 (50)	4.72 (120)	3.00 (75)	Aperture
To order Metric model, add "M" to the stock number.

Mounting Bridles:

A set of 4 to secure PRS - 80A/PRS - 80D (with baseplate removed) directly to translation stages

Stock Number

MBR - 1

To order Metric model, add "M" to the stock number.

Our application engineers and technical staff will be happy to help you with any further enquiries. Monday through Friday, 9 am to 6 pm, Singapore Standard Time, call (65)-4409746 or email us anytime at smart_sense@yahoo.com. We response within 24 hours.
