TILT/ROTATION STAGES

2 independent tilt adjustments and an in-plane rotation adjustment

Tilt range: ± 5°

Tilt resolution: 15 arc-sec

Rotation range: ± 3°

Rotation resolution: 8 arc-sec

High resolution 100-pitch adjustment screws

A spring loaded mounting clamp is included

Stock Number	Load

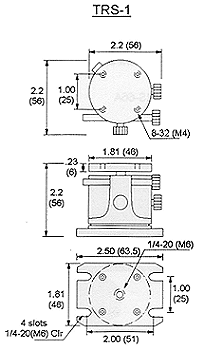

TRS - 1	2 kg

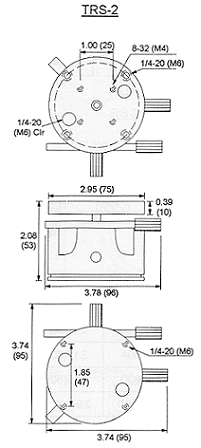

TRS - 2	5 kg
To order Metric model, add "M" to the stock number.

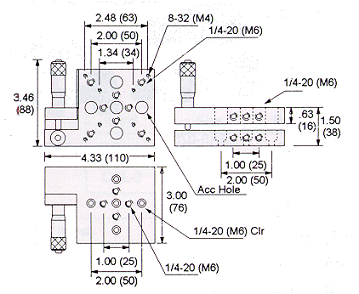

Single Axis Tilt Platform:

Special disc spring design for superior stiffness and stability

Tilting range: ± 5°

Stock Number	Drive Type	Resolution
IS - 1	Micrometer	3.5 arcsec
IS - 1A	100-pitch screw	2 arcsec
To order Metric model, add "M" to the stock number.

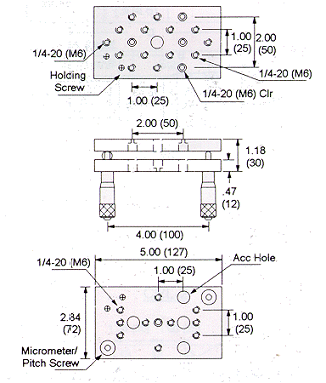

2 Axis Tilt Platform:

Special disc spring design for superior stiffness and stability

Tilting range: ± 5°

Stock Number	Drive Type	Resolution
TP - 1	Micrometer	3.5 arcsec
TP - 1A	100-pitch screw	2 arcsec
To order Metric model, add "M" to the stock number.

Multi Axis Tilt Platform:

Stage surface: 120 x 120 mm

Straightness of travel: ± 1 µm

Stock Number	Drive Type	Resolution
TP - 2	Micrometer	3.5 arcsec
TP - 2A	100-pitch screw	2 arcsec
To order Metric model, add "M" to the stock number.

Our application engineers and technical staff will be happy to help you with any further enquiries. Monday through Friday, 9 am to 6 pm, Singapore Standard Time, call (65)-4409746 or email us anytime at smart_sense@yahoo.com. We response within 24 hours.
