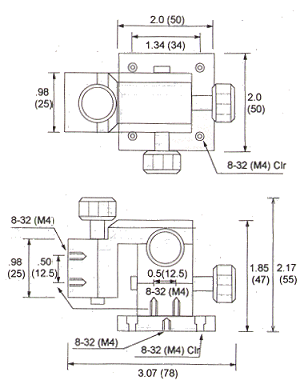

TC53:
|
Crossed roller bearing for smooth precision movement
Special coating surface reducing glare and reflection
Generous array of Imperial or Metric tapped mounting holes
Stage surface: 53 x 53 mm, 80 x 96 mm
Straightness of travel: ± 1 µm
|
|
Stock number abbreviation used:
TS - Side type drive
TC - Center type drive
H - Aperture platform
A - 100-pitch adjustment screw
Stock
Number |
Drive
Type |
Travel
(mm) |
Resolution
(µm) |
Load
(kg) |
| TS53 - 1 |
Micrometer |
25.4 |
2 |
5 |
| TS53 - 1A |
100-pitch screw |
25.4 |
1 |
5 |
|
To order Metric model, add "M" to the stock number. |
|

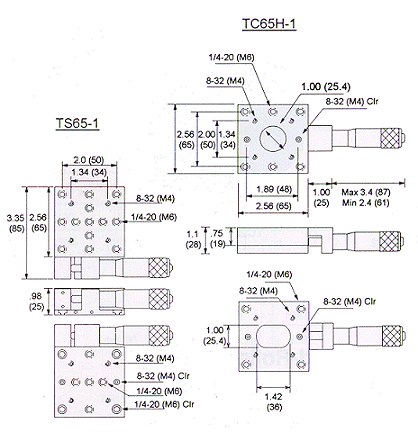

TS65/TC65H:
Crossed roller bearing for smooth precision movement
Special coating surface reducing glare and reflection
Generous array of Imperial or Metric tapped mounting holes
Stage surface: 65 x 65 mm
Straightness of travel: ± 1 µm
| Stock Number |
Drive Type |
Travel (mm) |
Resolution (µm) |
Load (kg) |
| TS65 - 1 |
Micrometer |
25.4 |
2 |
5 |
| TS65 - 1A |
100-pitch screw |
25.4 |
1 |
5 |
| TC65H - 1 |
Micrometer |
25.4 |
2 |
5 |
| TC65H - 1A |
100-pitch screw |
25.4 |
1 |
5 |
|
To order Metric model, add "M" to the stock number. |
| Stock Number |
Description |
| AB - 65 |
90° angle bracket |
|
To order Metric model, add "M" to the stock number. |
|
|
TS90/TC90:
|
Stage surface: 90 x 90 mm
Straightness of travel: ± 1 µm
|
| Stock Number |
Drive Type |
Travel (mm) |
Resolution (µm) |
Load (kg) |
| TS90 - 1/TC90 - 1 |
Micrometer |
25.4 |
2 |
10 |
| TS90 - 1A/TC90 - 1A |
100-pitch screw |
25.4 |
1 |
10 |
| TS90H - 1/TC90H - 1 |
Micrometer |
25.4 |
2 |
10 |
| TS90H - 1A/TC90H - 1A |
100-pitch screw |
25.4 |
1 |
10 |
|
To order Metric model, add "M" to the stock number. |

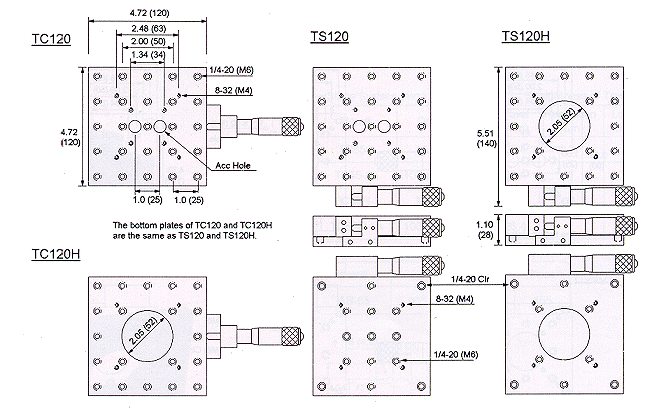

TS120/TC120:
|
Stage surface: 120 x 120 mm
Straightness of travel: ± 1 µm
|
| Stock Number |
Drive Type |
Travel (mm) |
Resolution (µm) |
Load (kg) |
| TS120 - 1/TC120 - 1 |
Micrometer |
25.4 |
2 |
15 |
| TS120 - 1A/TC120 - 1A |
100-pitch screw |
25.4 |
1 |
15 |
| TS120H - 1/TC120H - 1 |
Micrometer |
25.4 |
2 |
15 |
| TS120H - 1A/TC120H - 1A |
100-pitch screw |
25.4 |
1 |
15 |
|
To order Metric model, add "M" to the stock number. |
TS180/TC180:
Stage surface: 80 x 180 mm
Straightness of travel: ± 2 µm
|
|
| Stock Number |
Drive Type |
Travel (mm) |
Resolution (µm) |
Load (kg) |
| TS180 - 2 |
Micrometer |
50.8 |
2 |
15 |
| TS180 - 2A |
100-pitch screw |
50.8 |
1 |
15 |
| TS180 - 4A |
Micrometer & 100-pitch screw |
101.6 |
2 |
15 |
|
To order Metric model, add "M" to the stock number. |
