1974 Honda CT-70
    Exhaust Heat Sheilds

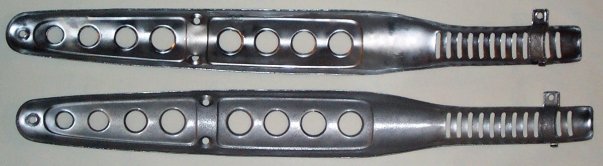

    CT-70 Exhaust Heat Sheilds - Front View

    CT-70 Exhaust Heat Sheilds - Rear View

    CT-70 Exhaust Heat Sheilds
    I cleaned these parts with the "liquid/bead power blaster",
    then applied a couple of coats of "Clear-Coat" on the bottom side,
    and then painted the front side "flat black" (not very clear in upper picture).

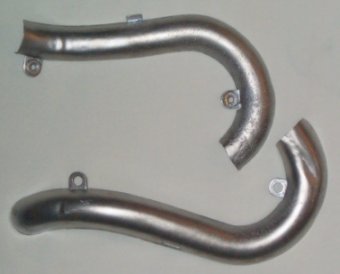

    Lower Exhaust Heat Sheilds - Front View

    Lower Exhaust Heat Sheilds - Rear View

    Lower Exhaust Heat Sheilds
    Well worn, and pitted.
