PRODUCTION:	Atwater Kent
MODEL:	44
YEAR:	1928
STATE:	USA
DESIGN	Desktop flat
MATERIAL:	Iron box
WIRING:	Audion
RANGE:	MW
TUBES:	8
TUBE TYPE:	| 80 | 227 | 226 | 226 | 226 | 226 | 226 | 171A |

DESCRIPTION:	Flat iron box. One tuning element and one reostat. Built-in power supply. Four hf stages. Two lf stages.
MANUFACTURER:	Atwater Kent Manufacturing Company
POWER:	110 V / 50 - 60 Hz

Tubes

Tube	Fil. Volts	Plate Volts	Tube Type	Use in Circuit
80	5.0 V	-	Double diode	Full-wave rectifier
171A	5.0 V	180 V	Triode	Power output
226	2.5 V	275 V	Triode	RF amplifier
227	2.5 V	275 V	Triode	General amplifier

Parts location	Parts pictures

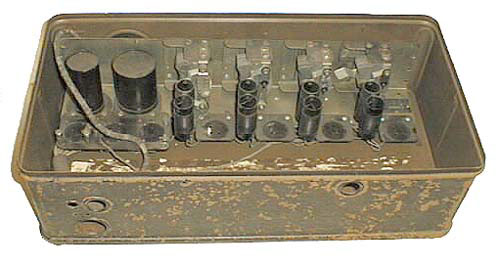

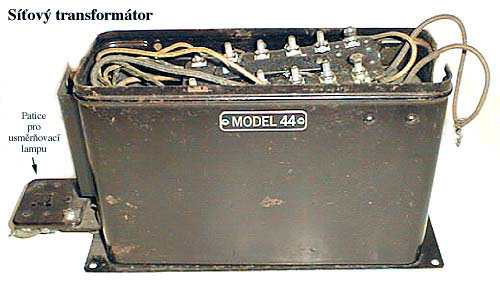

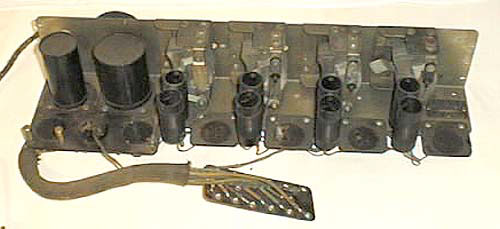

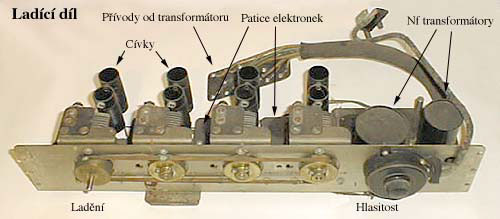

	Tuning part - front Tuning part - back Transformer Complex without transformer
