BEACH SQUASH


Beach Squash was created to meet the needs of touring shows, holiday villages, playgrounds, sports clubs and anywhere where a mobile and demountable structure will fill the requirement.  A 10 x 7 metre area and a 6.5 metre height is enough to assemble a Beach Squash court.

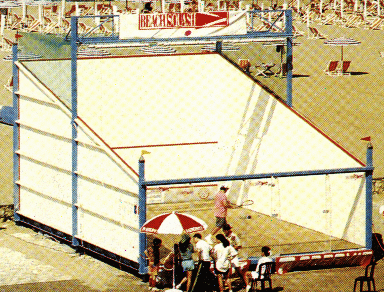

The walls are made up of special panels to give the correct bounce to the ball.  The back wall is particularly strong and is made of transparent thermo-plastic material.  The lighting system is designed to give the correct amount of light for play at night.  The whole system is very easy to maintain and to set up or take down.  See the photos at the end of this page.

TECHNICAL CHARACTERISTICS

Metal Structure.  The metal structure rests on 10 adjustable supports that are suitable for all kinds of ground.  Protection from the elements is guaranteed by zinc coating to which two layers of oleophenolic grains are added.  All components are assembled with stainless steel bolts.
The system also includes a central framework supporting the lighting system.

Floor.  The wood is all autoclaved and specially treated so that it is waterproof and weather resistant.  The playing lines are made with a special enamel paint.

Walls.  The outside walls are made of a double layer of plastic laminate; the inside is covered with high density panels which have perfect rebound qualities for the game of Squash.

Back Wall.  The wall is made of transparent thermo-plastic panels.  The outer supports are made of the same material.  There is a central lockable door.

Containing net.  A nylon net covers the whole front section of the top of the court to prevent balls from going out of the court.

OTHER USES

A Beach Court can also be used for other purposes such as Aerobics, Fitness, Yoga, Dance etc.  By adding simple kits it can be transformed into a 4 player football pitch or volleyball court.  Its outer walls can be transformed into a free climbing surface.

OPTIONS

A cover can be provided or a light cover to cut down the level of sunlight.

TECHNICAL SPECIFICATION

Total Length 9.92 metres
Total Width 6.90 metres
Front wall height 4.57 metres
Back wall height 2.13 metres
Central framework height 6.70 metres
Metal Structure 3700 kg.
Other elements 700 kg.
Kit 700 kg.

Supporting Blocks (to be supplied by customer)

Placement of Supporting Blocks

Arrangement of Supporting Feet

What the Buyer has to provide.

Provision of the ten 60 x 60 cm. supporting blocks or plates and the leveling and consolidation of the ground
Provision of a reliable electrical earth point.
Provision of Electrical supply.  Specify electrical  availability  with your order (i.e. 220v 50Hz)

Contact Information

Beach Squash s.r.l.  Contact: Dott. Arch. Giulio Dall'Olio
Piazza Roma 14
43018 Sissa (PR), Italy
Tel/Fax:  (390) 521 879770
