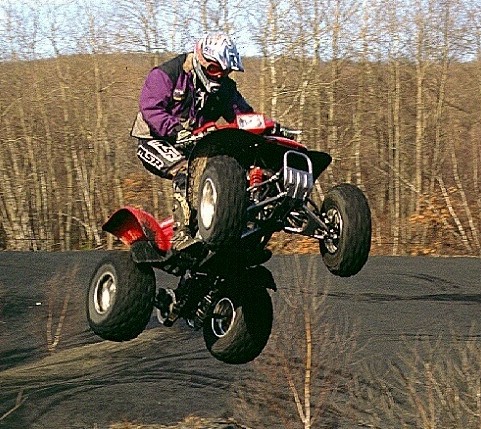

Honda 300EX

Suggested Retail Price: $4,799
Engine Type: 282cc air-cooled SOHC single-cylinder four-stroke
Bore and Stroke: 74.0mm x 65.5mm
Carburetion: 32mm piston-valve with accelerator pump
Ignition: Solid-state CD with electronic advance
Starter: Electric
Clutch: Manual
Transmission: Five-speed with reverse
Driveline: O-ring-sealed chain
Front Suspension: Independent, double-wishbone with dual shocks, five-position spring preload adjustability; 6.7-inch travel
Rear Suspension: Swingarm with single shock, five-position spring-preload adjustability; 7.9-inch travel
Front Brakes: Dual hydraulic disc
Rear Brake: Single hydraulic disc
Front Tires: 22 x 7-10 knobby
Rear Tires: 22 x 10-9 knobby
Length: 67.7 inches
Width: 43.5 inches
Height: 42.7 inches
Wheelbase: 45.3 inches
Seat Height: 30.3 inches
Ground Clearance: 4.9 inches
Turning Radius: 10.2 feet
Dry Weight: 377.0 pounds
Fuel Capacity: 2.2 gallons, including 0.5-gallon reserve
Colors: Yellow, Red
