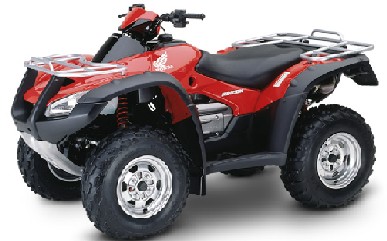

Honda Rincon 650

Engine Type: 649cc liquid-cooled OHV semi dry-sump longitudinally mounted single-cylinder four-stroke
Bore and Stroke: 100.0mm x 82.6mm
Carburetion: 37mm CV
Ignition: Solid-state CD with electronic advance
Starter: Electric with auxiliary recoil
Transmission: Fully automatic three-speed automotive-style with hydraulic torque converter
Driveline: Direct front and rear driveshafts with torque-sensing limited-slip front differential and Traxlok
Front Suspension: Independent double-wishbone; 6.9-inch travel
Rear Suspension: Independent double-wishbone; 8.0-inch travel
Front Brake: Triple-sealed hydraulic drum
Rear Brake: Single hydraulic disc
Front Tires: 25 x 8-12 radial
Rear Tires: 25 x 10-12 radial
Length: 83.7 inches
Width: 46.1 inches
Height: 46.8 inches
Wheelbase: 50.7 inches
Seat Height: 34.2 inches
Ground Clearance: 10.7 inches
Turning Radius: 10.8 feet
Dry Weight: 600.0 pounds
Fuel Capacity: 4.5 gallons, including 1.0-gallon reserve
Colors: Red, Olive
