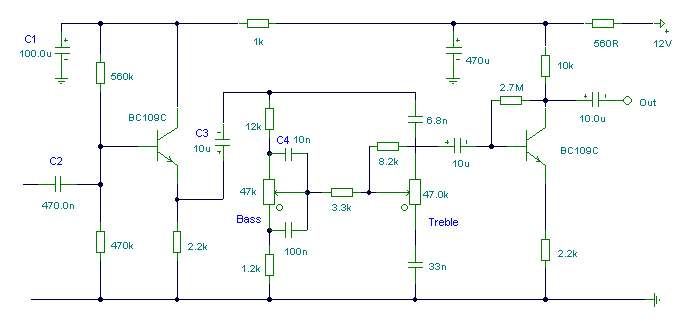

| Notes: Based on the classic Baxendall tone control circuit, this provides a maximum cut and boost of around 10dB at 10K and 50Hz. As the controls are passive, the last transistor provides a slight boost. The output is designed to feed an amplifier with input impedance of 10k to 250k. |
| Bass & Treble Switch |
 |
