| Phoenix Gold |
| Octane-R 10 10" 400 watts , 90 DB |
| $ 95 |
| Octane-R Series |
| ____________________________ |
| features: injection molded aluminum plated grained polypropylene cone , 3-peice injection molded dustap with aluminum plating , carb on fibre inlay with blue backlight , computer optimized bumped motor assembly , large roll rubber butyl surround , injection molded rubber motor housing |
| E-wing Car Audio 2003 |
 |
| Octane-R 10D 10" 400 watts , 90 DB dual voice coil |
| Octane-R 12 12" 500 watts , 91 DB |
| Octane-R 12D 12" 500 watts , 91 DB dual voice coil |
| TX 10 10" 600 watts , 2" voice coil , 65 Oz magnet , 89 DB |
| $110 |
| Tantrum-X Series |
 |
| TX 10D 10" 600 watts , dual 2" voice coil , 65 Oz magnet , 89 DB |
| TX 12 12" 700 watts , 2" voice coil , 65 Oz magnet , 90 DB |
| TX 12D 12" 700 watts , dual 2" voice coil , 65 Oz magnet , 90 DB |
| TX 15 15" 800 watts , 2" voice coil , 65 Oz magnet , 91 DB |
| TX 15D 15" 800 watts , dual 2" voice coil , 65 Oz magnet , 91 DB |
| features: injection molded aluminum plated grained polypropylene cone , injection molded dustap with blue LED backlight , moldeded rubber mounting gasket and magnet boot , large roll rubber butyl surround ,cast aluminum basket |
| ____________________________ |
| Titanium10 10" 500 watts RMS, 102 Oz Y-30 grade double stacked magnets , 4-layer 2.5" voice coil on kapton former , 89 DB |
| $ 190 |
| Titanium Series |
| Titanium10D 10" 500 watts RMS, 102 Oz Y-30 grade double stacked magnets , dual 4-layer 2.5" voice coil on kapton former , 89 DB |
| Titanium12 12" 500 watts RMS, 102 Oz Y-30 grade double stacked magnets , 4-layer 2.5" voice coil on kapton former , 89 DB |
| Titanium12D 12" 500 watts RMS, 102 Oz Y-30 grade double stacked magnets , dual 4-layer 2.5" voice coil on kapton former , 89 DB |
| Titanium15 15" 650 watts RMS, 102 Oz Y-30 grade double stacked magnets , 4-layer 2.5" voice coil on kapton former , 90 DB |
| Titanium15D 15" 650 watts RMS, 102 Oz Y-30 grade double stacked magnets , dual 4-layer 2.5" voice coil on kapton former , 90 DB |
| features: Titanium grained anodized aluminum diaphragm , cast aluminum basket |
| ____________________________ |
| Ti12D Elite 12" 1200 watts RMS, 235 Oz triple stacked magnets , 3" hi-temp voice coil , , 89 DB |
| $ 615 |
| Titanium Elite Series |
 |
 |
| features: custom tooled deep aluminum basket , replacable cone and coil assembly , true 3" peak to peak excursion , black anodized aluminum former , integrated aluminum cooling ring , cast aluminum backplate heatsink , large roll rubber surround , hybrid flat panel aluminum diaphragm , dual 9" custom tooled spiders , custom tooled vented spder spacers |
| ____________________________ |
| T8 8" 200W , 4-layer 1.5" voice coil , 30 oz magnet , 87 DB |
| $ 90 |
| Tantrum Series |
| T8D 8" 200W , dual 4-layer 1.5" voice coil , 30 oz magnet , 87 DB |
| $ 95 |
 |
| T10 10" 250W , 4-layer 2" voice coil , 43 oz magnet , 88 DB |
| T10D 10" 250W , dual 4-layer 2" voice coil , 43 oz magnet , 88 DB |
| $ 100 |
| $ 105 |
| T12 12" 300W , 4-layer 2" voice coil , 48 oz magnet , 90 DB |
| $ 115 |
| T12D 12" 300W , dual 4-layer 2" voice coil , 48 oz magnet , 90 DB |
| $ 120 |
| T15 15" 400W , 4-layer 2" voice coil , 48 oz magnet , 91 DB |
| T15D 15" 400W , dual 4-layer 2" voice coil , 48 oz magnet , 91 DB |
| $ 150 |
| $ 155 |
| features: black mica filled poly cone , butyl rubber surround , integrated molded rubber mounting gasket , |
| ____________________________ |
 |
| QX8 8" 125Watts RMS , 1.5" voice coil , 30 oz magnet , 87 DB |
| $ 80 |
| QX Series |
| QX10 10" 150Watts RMS , 2" voice coil , 43 oz magnet , 88 DB |
| QX12 12" 200Watts RMS , 2" voice coil , 48 oz magnet , 90 DB |
| QX15 15" 250Watts RMS , 2.5" voice coil , 48 oz magnet , 92 DB |
| features: poly laminate cone , also availablie in 8ohm and DVC, add 8 or DVC to the end of part # |
| ____________________________ |
 |
| Xmax8 8" 250Watts RMS , 2" voice coil , 43 oz magnet , 86 DB |
| $ |
| X-Max Series |
| Xmax10 10" 350Watts RMS , 2" voice coil , 86 oz magnet , 87 DB |
| Xmax12 12" 500Watts RMS ,2..5" voice coil , 96 oz magnet , 89 DB |
| Xmax15 15" 500Watts RMS , 2.5" voice coil , 96 oz magnet , 92 DB |
| features: improved backplate, top-plate and pole peice designed to give maximum motor efficiency , re-designed voice coil assemblies for better excursion and power handling , new adhesive technology specially designed for gluing XMAX composite materials |
| ____________________________ |
 |
| XS84 8" 150Watts RMS , 1.5" voice coil , 30 oz magnet , 87 DB |
| $ |
| XS Series |
| XS104 10" 200Watts RMS , 2" voice coil , 36 oz magnet , 87 DB |
| XS124 12" 250Watts RMS , 2" voice coil , 36 oz magnet , 89 DB |
| XS154 15" 300Watts RMS , 2" voice coil , 48 oz magnet , 91 DB |
| XS84DVC 8" 150Watts RMS , dual 1.5" voice coil , 30 oz magnet , 86 DB |
| XS104DVC 10" 200Watts RMS ,dual 2" voice coil , 36 oz magnet , 87 DB |
| XS124DVC 12" 250Watts RMS , dual 2" voice coil , 36 oz magnet , 89 DB |
| XS154DVC 15" 300Watts RMS , dual 2" voice coil , 48 oz magnet , 91 DB |
| features: glass fibre cone |
| ____________________________ |
 |
| Octane-R Series |
| Octane-R 3.0c Coax 3" 60 Watts max , 90 DB |
 |
 |
| $ 47 |
| Octane-R 4.0c Coax 4" 90 Watts max , 89 DB |
| $ 62 |
| Octane-R 46.0c Coax 4x6" 90 Watts max , 89DB |
| $ 70 |
| Octane-R 5.0c Coax 5.25" 100 Watts max , 89DB |
| $ 70 |
| Octane-R 57.0c Coax 5x7" 120 Watts max , 90DB |
| $ 80 |
| Octane-R 6.0c Coax 6" 120 Watts max , 90DB |
| Octane-R 65.0c Coax 6.5" 120 Watts max , 90DB |
| $ 75 |
| $ 75 |
| Octane-R 69.0c Coax 6x9" 140 Watts max , 91DB |
| $ 85 |
| Octane-R 5.0comp 5.25" component , 140 Watts max , 89DB |
| Octane-R 6.0comp 6" component , 140 Watts max , 90DB |
| Octane-R 65.0comp 6.5" component , 140 Watts max , 90DB |
| ____________________________ |
| Tantum-X Series |
| TX4.0Coax 4" 100 watts max , 88 DB |
| $ 75 |
| TX46.0Coax 4x6" 120 watts max , 90 DB |
| TX5.0Coax 5.25" 120 watts max , 90 DB |
| TX57.0Coax 5x7" 140 watts max , 90 DB |
| $ 80 |
| $ 90 |
| $ 100 |
| TX6.0Coax 6" 140 watts max , 89 DB |
| TX65.0Coax 6.5" 140 watts max , 91 DB |
| $ 100 |
| $ 95 |
| TX69.0Coax 6x9" 140 watts max , 90 DB |
| $ 120 |
 |
 |
| TX5.0Comp 5.25" 150 watts max , 89 DB |
| TX6.0Comp 6" 150 watts max , 90 DB |
| TX65.0Comp 6.5" 150 watts max , 90 DB |
| features: injection molded grained polyproplylene cone , butyle rubber surround , pivoting 25mm silk dome tweeter with ferro-fluid filled neodynium motor, flush,surface or angle mounting hardware , external 24DB/octave acoustic crossover |
| ____________________________ |
| features: injection molded aluminum plated grained polypropylene cone , butyl rubber surround , flat linear roll spider , blue mylar color matched angle tweeter |
| Titanium Elite Series |

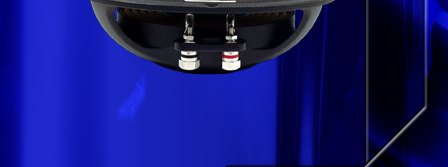

| Ti9M Elite midrange driver , 300 watts max , 89 DB |
 |
 |
| $ 305 |
| features: solid 1-peice polypropylene cone and dust cap assembly , FEA optomized inner radial neodynium motor structure , custom cast aluminum basket , 3" multi-layer voice coil , ultra thin 2.5" mounting depth , binding posts , |
| ____________________________ |
| Ti5 comp 5.25" component, 300 watts RMS , 90 DB |
| Ti6 comp 6.5" component, 300 watts RMS , 90 DB |
| Ti951 comp 9", 5" and 1" tweeter, component, 300 watts RMS , 89 DB |
| features: solid 1-peice polypropylene cone and dust cap assembly , FEA optomized inner radial neodynium motor structure , custom cast aluminum basket , 3" multi-layer voice coil , ultra thin 2.5" mounting depth , binding posts , 28mm hand doped tweeter, audiophile grade external crossover |
| $ 700 |
| $ 1025 |
| $ 730 |
| QX Series |
| QX320 3.5" 60 watts max |
| QX420 4" 90 watts max |
| QX462 4x6" 90 watts max |
| QX520 5.25" 100 watts max |
| QX572 5x7" 100 watts max |
| QX620 6.5" 120 watts max |
| QX620E 6.5" oversized , 120 watts max |
| QX692 6x9" 140 watts max |
| $ 40 |
| $ 60 |
| $ 70 |
| $ 68 |
| $ 75 |
| $ 75 |
| $ 75 |
| $ 82 |
 |
 |
| features: 1mm black mylar tweeter , polypropylene cone , flat linear roll spider , 18db/octave acoustic crossover |
| QX130 5.75" component |
| QX160 6" component |
| QX165 6.5" component |
| $ 80 |
| $ 82 |
| $ 83 |
| ____________________________ |
 |

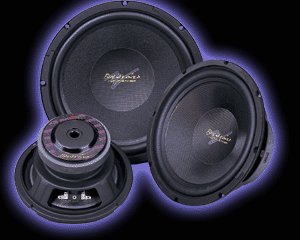

| XS Series |
| XSM100 4" mid-range , 100 watts max , 88 Db |
| XSM130 5.25" mid-range , 120 watts max , 89 Db |
| XSM160 6" mid-range , 140 watts max , 90 Db |
| XSM165 6.5" mid-range , 140 watts max , 90 Db |
| features: woven glass fibre cone , butyl rubber surround , flexible mounting basket , oversized magnet structure , decorative magnet boot |
 |
| XS42 4", 100 watts max |
| XS32 3", 70 watts max |
| XS46 4x6", 100 watts max |
| XS52 5.25", 110 watts max |
| XS57 5x7", 120 watts max |
| XS62 6", 140 watts max |
| XS62e 6" oversized, 140 watts max |
| XS69 6x9", 120 watts max |
| features: woven glass fibre cone , butyl rubber surround , flexible mounting basket , oversized magnet structure , decorative magnet boot , pivoting 19mm silk dome tweeter , audiophile grade crossover components |
| XS100 4"component, 100 watts max , 88DB |
| XS130 5.25"component, 120 watts max , 89DB |
| XS160 6"component, 140 watts max , 90DB |
| XS165 6.5"component, 140 watts max , 90DB |
 |
| features: woven glass fibre cone , butyl rubber surround , flexible mounting basket , oversized magnet structure , decorative magnet boot , pivoting 19mm silk dome tweeter , audiophile grade crossover components , external custom cast XS style crossover housing |
| ____________________________ |
| Tantrum Series |
| T5.0comp 5.25 "component, 120 watts max |
| T6.0comp 6 "component, 140 watts max |
 |
| T6.5comp 6.5 "component, 140 watts max |
| $ |
| $ 145 |
| $ 145 |
| $ 145 |
| features: black mica filled poly cone , butyl rubber surround , integrated molded rubber mounting gasket , pivoting 25mm parachute silk dome tweeter , ferro-fluid filled neodynium motor (tweeter) , angle,flush or surface mounting hardware , external 24 DB/octave acoustic crossover |
| ____________________________ |
| Octane-R Series |
 |
| Octane-R 30.0:1 class D mono-block 3000W X 1 @ 2 Ohms |
| Octane-R 15.0:1 class D mono-block 1500W X 1 @ 2 Ohms |
| Octane-R 8.0:1 class D mono-block 800W X 1 @ 2 Ohms |
| Octane-R 5.0:1 class D mono-block 500W X 1 @ 2 Ohms |
| features: 18DB variable Lp cross over and subsonic filter , low pass level port LPL |
| Octane-R 2.5:2 2 channel 80W X 2 @ 4 Ohms 250W X 1 @ 4 Ohms |
| Octane-R 4.0:2 2 channel 125W X 2 @ 4 Ohms 400W X 1 @ 4 Ohms |
| Octane-R 8.0:4 4 channel 125W X 4 @ 4 Ohms 400W X 2 @ 4 Ohms |
| Octane-R 5.0:4 4 channel 80W X 4 @ 4 Ohms 250W X 2 @ 4 Ohms |
| Octane-R 9.0:5 5 channel front/rear 125W X 4 @ 4 Ohms subwoofer 400W X 1 @ 2 Ohms features: seperate front/rear/sub inputs |
| features:12DB HP/LP crossover , low pass level level port LPL , grained aluminum insert , carbon fibre badge backlight with blue LED , optional neon inserts for all amp models , overload and comparatory circuitry , full range thru output , remote monitoring display, twin bass circuitry at 45 Hz |
| ____________________________ |

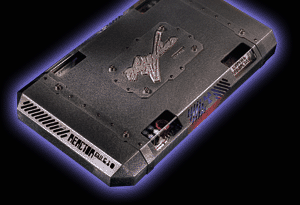

| Reactor Series |
| $ 3500 E-mail for further info |
 |
| Reactor 5 channel (ZX450 & ZX500) front/rear 75W X 4 @ 4 Ohms 150W X 4 @ 2 Ohms 250 W X 2 @ 4 Ohms Mono subwoofer 200W X 2 @ 4 Ohms 300W X 2 @ 2 Ohms 600W X 1 @ 4 Ohms Mono |
| features: 24DB continuis variable linkwitz riley HP/LP crossover , 18DB bass boost , |
| reactor composition: 16 guage brushed steel, clear finish featuring custom extruded magnesium alloy PG badging with unit serial number burned into it. reactor exclusivity: total production not to exceed 500 units..each reactor is individually numbered XXX of 500. reactor pwr/audio connections: located under custom shrouds on both sides of amp for stealth installation applications reactor flight case: a totally unique shipping case engineered with aluminum corners,structure strapping and custom radioactive graphics. this case is sure to find its way into a few extreme reactor applications. |
| ____________________________ |

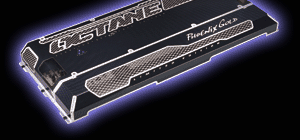

| Octane Series |
 |
| Octane 3 channel front/rear 100W X 2 @ 4 Ohms 200W X 2 @ 2 Ohms subwoofer 400W X 2 @ 4 Ohms mono |
| features: 24DB continuis variable linkwitz riley HP/LP crossover , 18DB bass boost , auxilary output channels , built in parametric sub equalization "bass cube" and the integrated "rail" stiffening capacitor bank , racing cosmetics , ultr light aluminum chassis , laser cut expanded metal venting/logo, all wrapped in carbon fibre graphics |
| ____________________________ |
| Titanium Series |
| Ti400.2 2 channel 100W X 2 @ 4 Ohm 200W X 1 @ 4 Ohm |
| Ti600.2 2 channel 150W X 2 @ 4 Ohm 600W X 1 @ 4 Ohm |
 |
 |
 |
| Ti1000.2 2 channel 250W X 2 @ 4 Ohm 1000W X 1 @ 4 Ohm |
| $ 395 |
| $ 525 |
| $ 710 |
| Ti500.4 4 channel 75W X 4 @ 4 Ohm 150W X 4 @ 2 Ohm 250W X 2 @ 2 Ohms |
| $ 525 |
| Ti800.1 mono-block 800W X 1 @ 2 Ohm Dual built in fan controlled operation , RMD/RDDP monitoring port , 24DB continuisly HP/LP variable crossover with subsonic filter , cross over configured auxilary output , twin bass EQ , LPL low pass level control |
| $ 575 |
| Ti1200.1 mono-block 1200W X 1 @ 2 Ohm Dual built in fan controlled operation , RMD/RDDP monitoring port , 24DB continuisly HP/LP variable crossover with subsonic filter , cross over configured auxilary output , tewin bass EQ , LPL low pass level control |
| $ 890 |
| Ti900.7 7channel 50W X 5 @ 4 Ohm 200W X 2 @ 2 Ohm 400W X 1 @ 2 Ohm independant crossover for front/rear/sub channels , Dual built in fan controlled operation , superbrite Tri-LED power on , RMD/RDDP monitoring port , 24DB continuisly HP/LP variable crossover with subsonic filter , cross over configured auxilary output , tewin bass EQ , LPL low pass level control |
| $ 940 |
| ____________________________ |
| Tantrum Series |
| features:selectable Q control , titanium finish , built in fan controlled operation , 24 Db HP/Lp cross over , twin T Bass control , low pass level control |
| T200.2 2channel 50W X 2 @ 4 Ohm 200W X 1 @ 4 Ohm |
| $ 155 |
| T250.2 2channel 60W X 2 @ 4 Ohm 250W X 1 @ 4 Ohm |
| features: speaker level inputs , preamp outputs , HP/LP crossover , 18DB bass boost , thermal efficient haetsink , timed acoustically integrated muting , differential RCA or speaker level inputs , tri-linear capability allows simultaneous stereo bridged operation , variable twin "T" bass EQ , auxillary outputs route full range signals , optional RMD remote monitoring display port |
| T300.2 2channel 75W X 2 @ 4 Ohm 300W X 1 @ 4 Ohm |
| $ 205 |
| $ 225 |
| T500.2 2channel 125W X 2 @ 4 Ohm 500W X 1 @ 4 Ohm |
| $ 285 |
| $295 |
| T400.4 4channel 50W X 4 @ 4 Ohm 200W X 2 @ 4 Ohm |
| T600.4 4channel 75W X 4 @ 4 Ohm 300W X 2 @ 4 Ohm |
| $345 |
| T1200.1 mono-block 1400W X 1@ 2 Ohm features: low pass level control , twin "T" bass EQ , 18DB LP/HP continuisly variable crossover with subsonic filter , high efficiency tri-path operation , remote monitoring display port , |
| $475 |
| ____________________________ |
 |
 |
| Xs Series |
| XS660 6channel 100W X 6 @ 4 Ohm 200W X 3 @ 2 Ohm |
| $440 |
| $ 665 |
| $ 405 |
| $ 285 |
| $ 245 |
| $ 115 |
| $ 135 |
| $ 215 |
| $ 175 |
| $ 385 |
| $ E-mail for further info |
| $ 95 |
| $ 115 |
| $ 115 |
| $ 200 |
| $ 270 |
| $ 210 |
| $ 195 |
| $ 275 |
| $115 |
| $135 |
| $135 |
| $ 165 |
| $ 185 |
| $ 185 |
 |
 |
| $115 |
| $115 |
| $120 |
| $157 |
| $165 |
| $ 85 |
| $100 |
| $135 |
| $ |
| $ |
| $ |
| $ |
| $ |
| $ |
| $ |
| $ |
| $ |
| $ |
| $ |
| $ |
| $ |
| $ |
| $ |
| $ |
| $ |
| $ |
| $ |
| $ |
| $ |
| $ |
| $ |
| $ |
| $ |
| ____________________________ |
 |
| QX Series |
| QX100.2 2channel 35W X 2 @ 4 Ohm 100W X 1 @ 4 Ohm |
| $160 |
| QX180.2 2channel 50W X 2 @ 4 Ohm 180W X 1 @ 4 Ohm |
| $170 |
| QX150.4 4channel 35W X 4 @ 4 Ohm 75W X 2 @ 4 Ohm |
| $200 |
| QX300.4 4channel 50W X 4 @ 4 Ohm 150W X 2 @ 4 Ohm |
| $260 |
| QX350.2 2channel 125W X 2 @ 4 Ohm 350W X 1 @ 4 Ohm |
| $360 |
| QX500.5 5channel front/rear 50W X 4 @ 4 Ohm 225W X 1 @ 4 Ohm |
| $330 |
| QLink/2 links 2 QX series amps together |
| $350 |
| QX900.1 mono-block 450W X 1 @ 4Ohm 900W X 1 @ 2Ohm |
| $40 |
| ____________________________ |
| features: huge rail voltage capacitance , double sided circuit board , fully complimentary output stage and bi-polar topology |
 |
