512-revised

The Question is:

Does your machine have
4 sticks of 64MB (4-RIMM's) - or-
2 sticks (2-RIMM's) of 128MB with 2 blanks (2-CRIMM's)?

Pray for CRIMMS!


You will have to buy either two $65 Corsair sticks (if you are lucky and find 2 CRIMM's) or four $65 Coursair sticks (if you are unlucky and find 4 RIMM's).

You have to eyeball the memory slots and see what you have or look in the BIOS settings


Sony webpages for: VAIOŽ PC: PCV-RX470DS, PCV-RX480DS

IQ Knowledge Base Article ID 131657

What are the supported Random Access Memory (RAM) configurations?

Use this table to determine the supported Random Access Memory (RAM) configurations.

NOTES:

These computers have a total of four memory slots and ship with two 64MB memory modules and two continuity modules, for a total memory amount of 128MB.

Memory modules can be added and used in any size combination, to a maximum memory amount of 512MB.

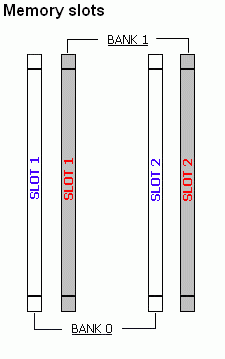

All slots must be filled using either matching pairs of memory modules in each bank [FIG. 1] or a combination of matching memory modules and a pair of continuity modules.

Continuity modules (CIMM) do not contain memory and are only used to fill slots that do not have memory modules installed.

128MB

64MB

Continuity module

64MB

Continuity module

4-RIMM's:
Replace the 4-RIMM's with 4 Corsair 128MB sticks.

256MB

64MB

2-RIMM's and 2-CRIMM's:
Replace the 2-CRIMM's with 2 Corsair 128MB sticks.

256MB

128MB

Continuity module

128MB

Continuity module

384MB

128MB

64MB

128MB

64MB

512MB

128MB

FIG. 1

Search Frys ( www.outpost.com ) for RAMBUS:

Product Search Results
Displaying 6 items. [1 - 6]

Item #	Product Name	Platform	Shipping	Price
3014039	Premium 128MB RAMBUS 184pin PC-800 - Lifetime Warranty	Rambus Memory - PC-800	Same Day	$62.99
3181580	Premium 512MB RAMBUS 184pin PC-800 - Lifetime Warranty	Rambus Memory - PC-800	Same Day	$249.99
	CORSAIR is a big, big name in memory products - buy Corsair.
3222881	Corsair 128MB RAMBUS 184pin PC-800 - Lifetime Warranty	Rambus Memory - PC-800	Same Day	$64.99
3222951	Corsair 256MB RAMBUS 184pin PC-800 - Lifetime Warranty	Rambus Memory - PC-800	Same Day	$129.99
2951235	Premium 256MB RAMBUS 184pin PC-800 - Lifetime Warranty	Rambus Memory - PC-800	Same Day	$109.99
2689702	Premium 256MB RAMBUS 184pin PC-800 - 1 Year Warranty	Rambus Memory - PC-800	Same Day	$119.00

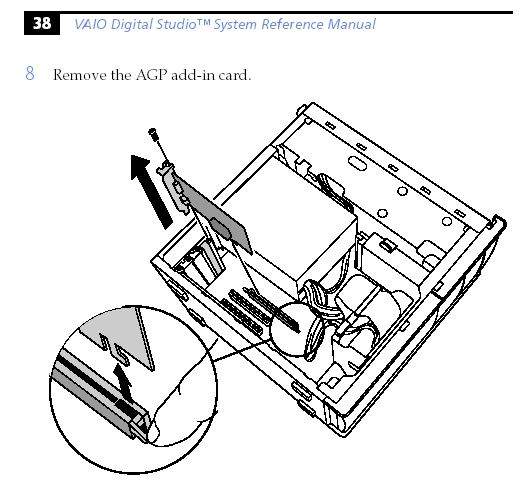

You could do it yourself. You have to remove the power supply and the AGP video card to get at the RIMM slots.

You have to ground yourself to the chassis to prevent a static discharge through the chip. First unplug the computer from the wall and then stick your tongue into the socket. Grab the chassis and squirm around a bit to try to get your body at the exact same voltage level. Do this for a minute or so. Keep the memory sticks in the Static Package while installing - do not touch the bare memory sticks.

Yahoo search: static discharge RIMM

http://www.support.gateway.com/support/manlib/cmponts/Memory/8508751/
Installing or replacing RIMM memory














VAIO Digital Studio™ System Reference Manual 22

Accessing the BIOS Setup Utility

You must access the BIOS Setup Utility to make changes to the BIOS settings (see "CMOS Setup Options" on page 85 for information on BIOS settings).

1 Reboot your computer by selecting Shut Down... from the Start menu, then selecting Restart.

2 When the Sony logo appears, press F3. The following message appears at the bottom of the screen.

Press <F2> for setup.

3 Press F2.

Each menu presents options for modifying the system configuration.

Use the left and right arrow keys to select a menu from the menu bar.

Use the up and down arrow keys to select items within a menu. Once an item is highlighted, use the plus/minus (+/-) keys to modify a setting.

If an item has a triangle ( ) to its left, this indicates that a sub-menu of options is available. Press ENTER to access a sub-menu. If a submenu contains items with a triangle, there is another layer of options from which to select.

4 Once you select an option, press ESC to back out of each menu until you reach the top level, where the menu bar appears.

5 To exit the BIOS setup utility, press ESC from any top-level screen and follow the prompts.

! Before rebooting the system, save and close all open files, and exit open applications.
