Boat Specifications
| Length on Deck: 32' | Powerplant: Volvo MD2B Diesel ~25hp |
| Load Waterline Length: 27'6" | Designer: Colin Archer > William Atkins > Bill Crealock |
| Overall Length: 40' | Displacement: 19,500 lbs. w/ 7,000 lbs lead ballast |
| Beam: 11' | Rig: Cutter w/ 753 sq.ft. of sail area |
| Draft: 5' | Water: 80 gallons Fuel: 60 gallons |
| Year Built: 1976 | Registered Tons: Net 13 |

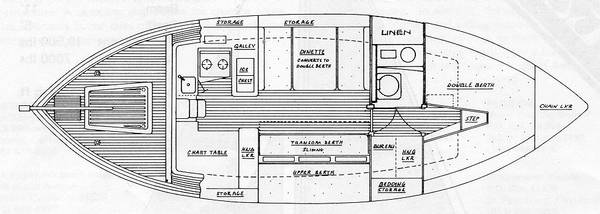

Interior Layout
Due to the fact that nearly half of the Westsails sold were in kit form, variations in the interior abound. Despite the multitude of owner-completed boats, most will be found to have been completed with a high degree of craftmanship and pride, a testament to the sailors that sought this traditional design.
