In recent years, ©LYCRA has becomed the same meaning with the convenient yarn. Dressers feel convenient and soft complexion by adding in the fabric material. For this sake, TTM sepecially design the unique machine for producing large high quality fabric with LYCRA.

Developing based on all TX5 structure, TX5-S3C has the same outlook and electronic controller which save much in maintainence. TTM specially develop a device for have the wire of ©LYCAR run smoothly. So it is almost scarcely condition that TX5-S3C stop by adding procedure of LYCRA knitting.

As we know the speed is also the point which user may think the most important, TX5-S3C has 3 CAM SYSTEM to knit 3 lines in one run. One cam is ©LYACRA CAM and the others are knit cam. That's make it possible to knit 2 color and one LYCRA by 3 CAM SYSTEM at the same speed with MONO color by SINGLE CAM SYSTEM! In many public places it's mobility impress present everyone !

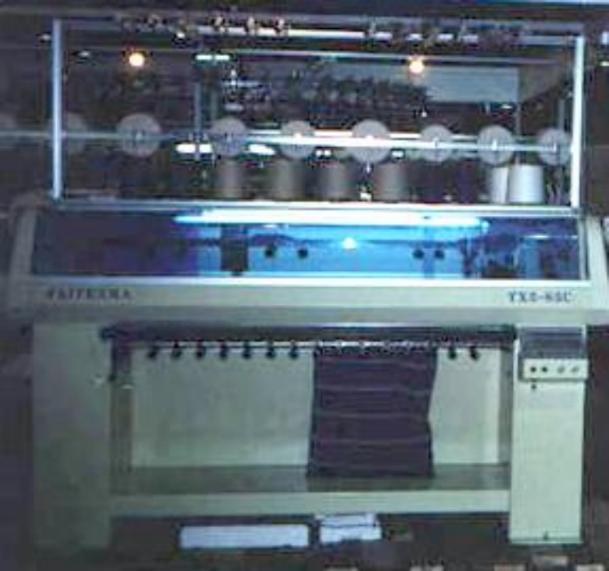

3 SYSTEM ©LYCRA COLLAR KNITTING MACHIHNE

MODEL: TX5-S3C
GAUGE: 12, 14G KNITTING
WIDTH: 52"
KNITTING SPEED: 1-1.2 M/ SEC DRIVED BY INVERTER, HIGH/LOW SPEED SELECTION BY INDIVIDUAL BUTTOM
DRIVING: CARRIAGE DRIVED BY GEAR BELT, CARRIAGE STROKE FREELY ADJUSTABLE
COLORS: SIX YARN FEEDERS CAN BE CHANGED ON BOTH SIDES
CAMS MOTION: 2 KNITTING CAM + 1 TUCK CAM = 3 CAM SYSTEM, COMPLETE KNITTING THREE YARN WIRES
IN ONE RUN.
DENSITY: 0 - 99 DEGREE, CONTROLLED BY STEPPING MOTOR ON BOTH SIDES.
RACKING: COMANDED BY STEPPING MOTOR, 1/2P. 1P UP TO 6P
NEEDLES: HIGH/LOW BUTT NEEDLE UNIVERSAL NEEDLES
TKAE DOWN: STEPLESS ADJUSTABLE BY TENSION MOTOR
CONTROL BOX: LED MONITOR, DIRECT INPUT KNITTING PROGRAM ON TOUCH PANEL, MAX 999 COURSES
STORED IN A MEMORY CARD (OPTIONAL) INSERTED IN THE LEFT SIDE FOR
DATA TRANSFER.
POWER: 1/2 HP, 3 PHASE, AC MOTOR, 220V, 50/60HZ, SINGLE PHASE 1KVA
