3.0 DOHC

This page will be used for pics of the DOHC and probably pics comparing against the SOHC, both are '92 engine. The DOHC is out of a Stealth R/T, and the SOHC is out of a Daytona IROC. Thanks again to Mike for the engine and tranny and Rick for helping getting the stuff to my house. More pics will come!

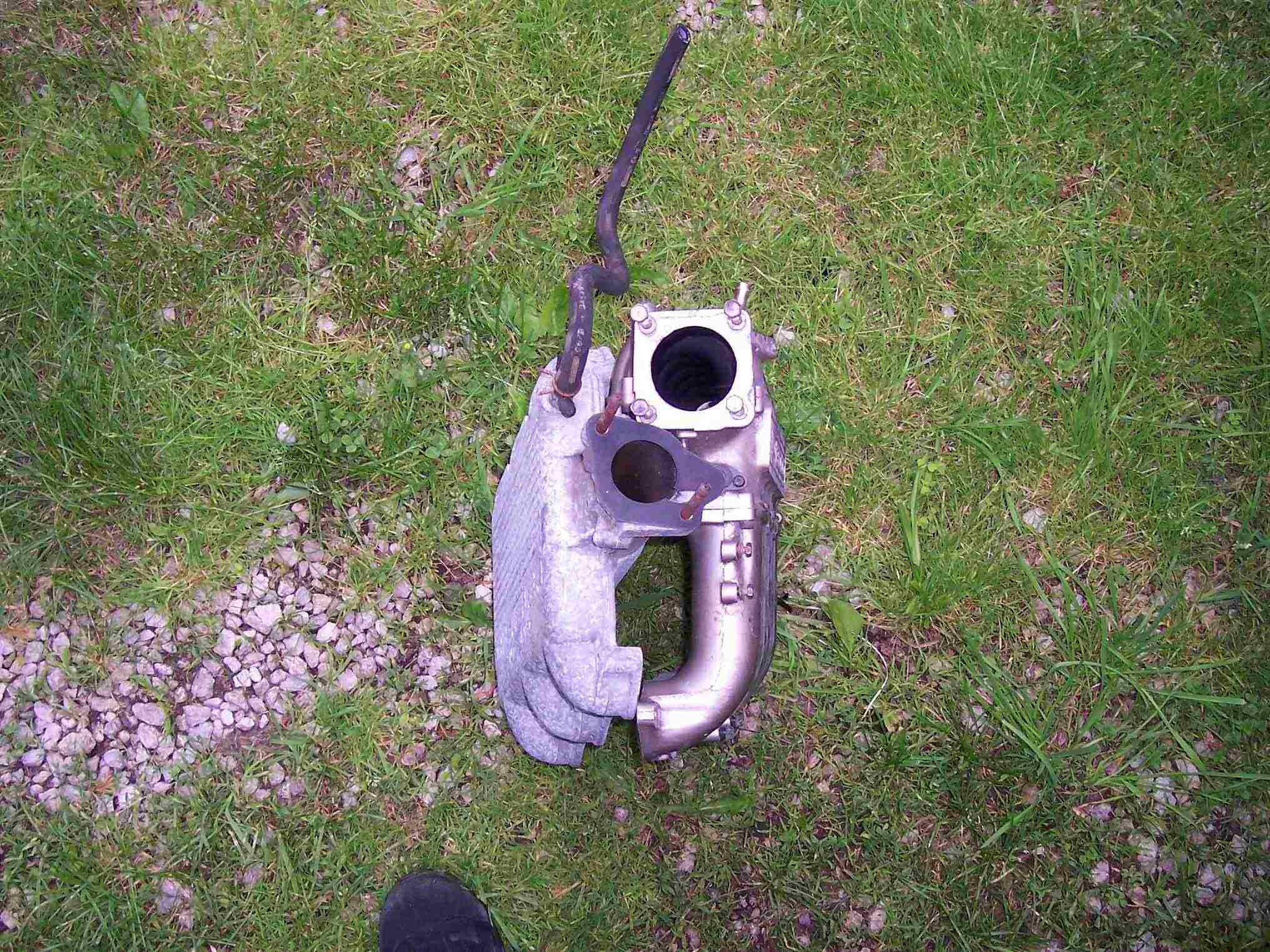

Look at what the Chrysler  SOHC intake manifold against the Mitsubishi manifold, the DOHC manifold is a 60mm while the SOHC is

52mm on the manifold but our's only come with a 46mm throttle body, time to start porting!

There are more pictures for now on my FTP site, go ahead and take a look at them, they are a bit bigger so I have to resize them before

I put them on the net.

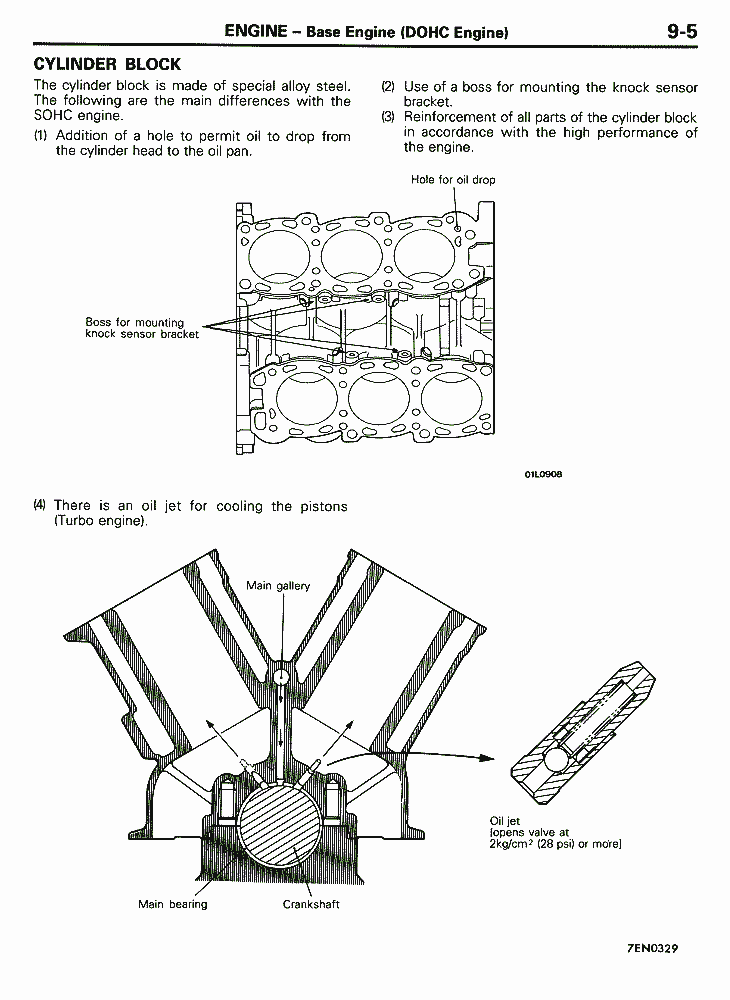

Found this on www.stealth316.com which shows the differences between the blocks of the SOHC and the DOHC engine.
