This very flexible balanced interconnect is protected against outside
interference by a 3 layer shielding. The 2 centre conductors are made
of 40 dense and very pure silver coated strands made of a very high
grade Matched Crystal (MC) OFC. Over each centre conductor an
extra Linear Structured Carbon ® (LSC) saturated layer is applied.
This extra layer of LSC highly improves the quality of the signal
transmission by performing electrical bridging on micro-scale and
by converting the external magnetic field close to the conductors
into an electrical signal again.
The resistance of each centre conductor is 5.5 Ohm/100 meter.
The capacitance between the 2 internal conductors is a very low 37 pF/meter,
The insulation of the two centre conductors is made of polyethylene foam
Surrounding the centre conductors, special treated artificial filler fibres provide
a perfect protection against losses caused by increased humidity over a longer period.
The triple shielding consists of 2 helical layers with a total of 180 dense and very pure
silver coated strands made of a very high grade of Matched Crystal (MC) OFC with an
extra layer of LSC saturated tape in between.
The yellow-orange coloured jacket is made of our HULLIFLEX ® 4.
The external diameter of the D - 102 III HYBRID is 7.25 mm.
C - 7.3 RCA type connectors.

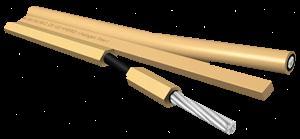

diameter high purity Matched Crystal OFC with a very dense pure
silver coating. Each conductor exhibits a cross-section area of 2.96 mm˛,
equalling AWG 12.5. Covering the two conductors you find an extra
Linear Structured Carbon ® saturated layer to improve the sonic
performance and to transform the radiated magnetic field into an
audio-signal again.
The resistance per lead is: 0.58 Ohm/100 meter.
The capacitance between the 2 leads is: 32 pF/meter.
The cable jacket is made of HULLIFLEX ® 3, a very flexible
and mechanically superb insulation material.
The insulation of the plus and minus leads is different in shape
with printing in the flat middle section.
This innovative banana plug is worldwide approved
as a loudspeaker connector due to the safety
pin design . Fully insulated, high contact pressure
due to the expanding inner spike. Easy one hand
operation. Extremely compact. The sloping angle
screws (T-6) for an extra-tight pressure connection
and additional cable strain relief.
Easy fit for wire size up to 10mm˛(8AWG).
