Instantly recognisable solution to the sonic problems
caused by standing waves within the cabinet.
This shape ensures that wave cancellation that can
affect the speaker performance does not occur.

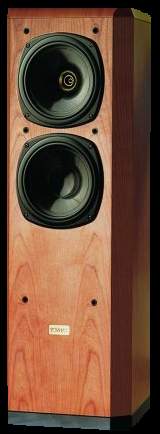

The D500 is equipped with a patented Dual ConcentricTM
Drive unit, the rigidity of the die-cast chassis combined
with the oversized magnet assembly ensures this drive
unit provides reliable and effortless performance.
To make the most of its modest proportions, this
model employs a double-chamber reflex system
for extended and controlled bass.The D500 is capable
of high power handling with impressive musical accuracy.
RMS Peak power handling: 265 watts maximum peak
Maximum SPL: 115db for 265 watt input
Input Sensitivity (for 2.83V @ 1m): 91dB
Frequency response : 40Hz to 30kHz +/- 2dB
Nominal impedance: 6 ohms
Crossover frequency: 1.7kHz, 400Hz
Crossover type: 1st order LF, 1st order HF
Dual Concentric Unit: 200mm Dual ConcentricTM
Supplementary Bass Unit: 200 mm Bass Unit
Enclosure: resistively ported twin chamber reflex
Dimensions: 934 x 314 x 344 mm (H x W x D)
