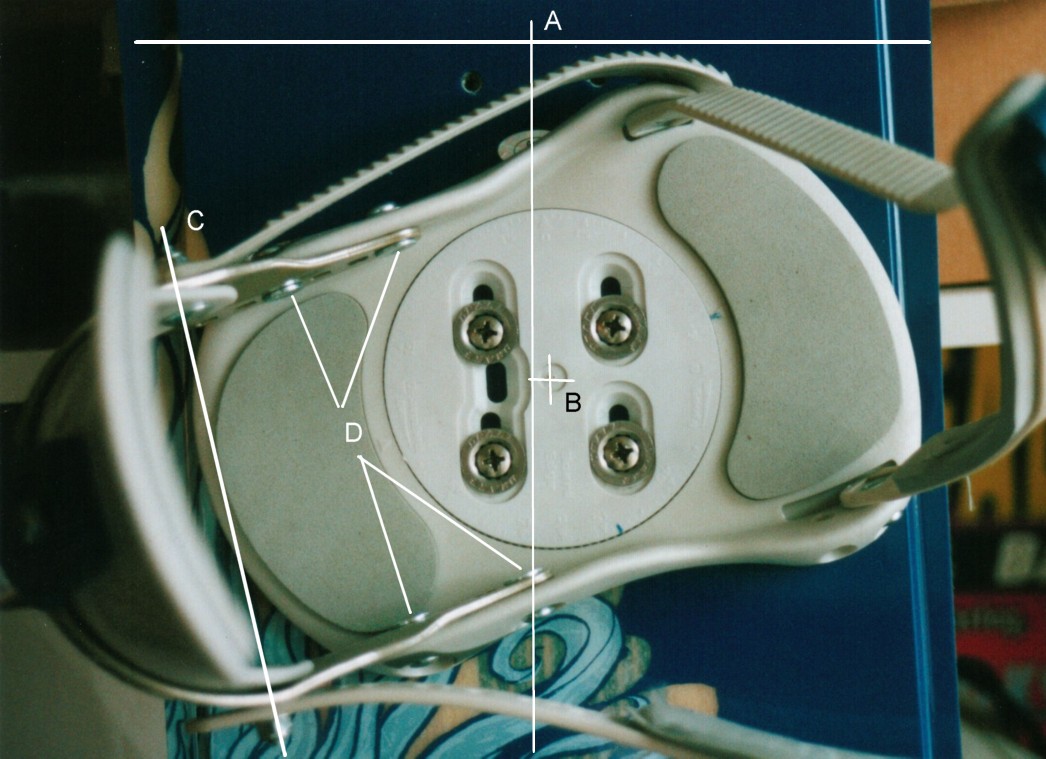

To set up your bindings properly you have to follow the next easy steps. The bindings have to be placed in the middle (A & B) of the width of the board to ensure an even weight distribution. To have an even boot overhang, it is neccessary to adjust the heelcup with the 4 screws (D). Please note that with bigger sized bindings some of this adjustments are not neccessary. At least you have to adjust your highback. The angle should be as little as possible between board edge and line (C).

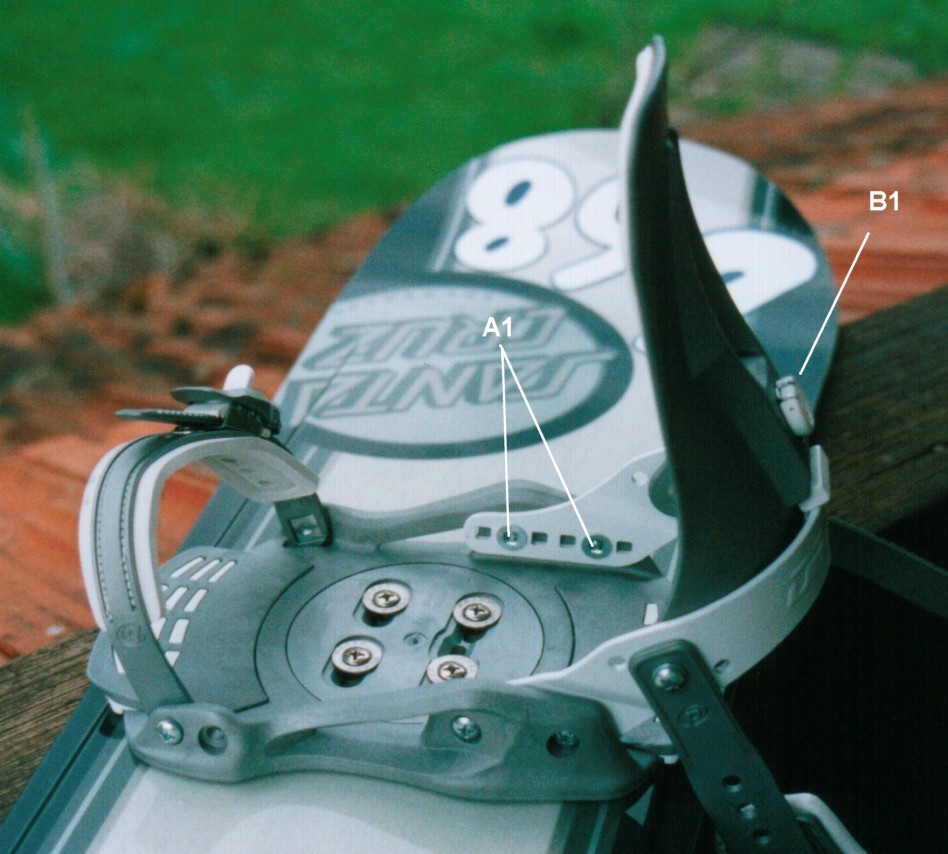

In this pic you see how much you can adjust with help of the screws (A1) the heelcup forward or backwards. Do not forget to put some forward lean to your highback with help of the screw B1. this will help you to ride on your backside edge without the need to extend your knees! For you halfpiperiding girls ... it helps you with more edge control in the flat of the pipe.

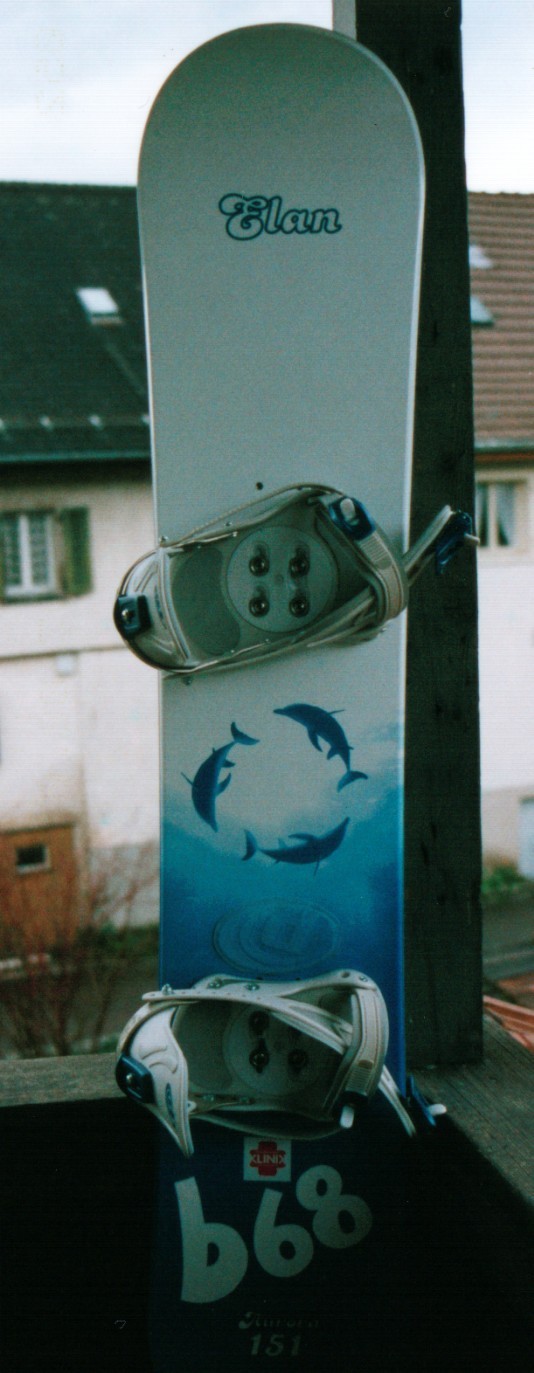

This is a nicely setup snowboard (my Elan Aurora 151!). Front angle: 21 degrees Back angle: -6 degrees Stance (distance between the bindings): 18 3/4 inches or 48cm Picture 1: Board: Santa Cruz Womans Solar 152 Bindings: Drake F40s Picture 2: Board: Santa Cruz Bullet 156 Bindings: Drake F50s Picture 3: Board: Elan Aurora 151 Bindings: Drake F40s
