1995 S2-THUNDERBOLT

ENGINE

Four-stroke, 45 degree Harley-Davidson V-Twin; air-cooled with pushrod actuated overhead valves; two valves per cylinder. Displacement: 1203cc Bore and stroke: 3.5 x 3.8 in. Compression ratio: 9:1 Carburetor: 40 mm Keihin CV Exhaust: Free-Breathing 2 into 1 collector Free-Breathing air cleaner, carbon fiber cover Torque: 76 ft. Ibs. Oil Capacity: 3.0 qts. Oil Filtration: Screw-on disposable element

TRANSMISSION

Five-speed, constant-mesh Transmission Ratios: (1) 2.78, (2) 2.03, (3) 1.49, (4) 1.22, (5) 1.000 Primary Drive: Triplex chain to wet clutch; ratio 1.6 Final Drive: Kevlar belt; ratio 2.10

CHASSIS

Frame: Tubular perimeter chrome- moly with Uniplanar powertrain system Wheelbase: 55.0 in. Rake: 25° Trail: 3.9 in. Front Suspension: WP ROMA 4054 upside down forks with adjustable rebound and compression damping. Rear Suspension: Chrome—moly rectangular tubing swingarm; WP extension type damper with adjustable compression damping, rebound damping and spring preload. Front Wheel Travel: 4.7 in. Rear Wheel Vertical Travel: 4.9 in. Front Brake: 340 mm cast iron floating rotor; six piston Buell P/M caliper with braided stainless steel line. Rear Brake: 230 mm cast iron rotor; Brembo caliper. Front Wheel: Cast Marchesini, 3.5 x17

Rear Wheel: Cast Marchesini, 5.0 x17 (Optional Buell Performance Machine spun- aluminum wheels are also available.) Front Tire: Dunlop Sportmax Radial 120/70 ZR 17 Rear Tire: Dunlop Sportmax Radial 170/60 ZR 17 Fuel Capacity: 5.0 gal. (includes 0.6 gal. reserve) Mileage per EPA Test Regulations: City 45; Highway 52 Gross Vehicle Weight Rating: 850 Ibs. Dry Weight: 450 Ibs. Load Capacity: 400 Ibs. Seat Height: 29.5 in. Ground Clearance: 5.2 in.

INSTRUMENTS

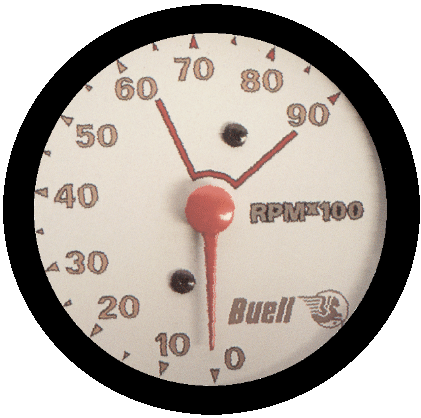

Speedometer, tachometer, odometer, tripmeter, warning light for low oil pressure, indicators for high beam, turn signals and neutral.

ELECTRICAL

Charging System: 297 watt AC alternator; solid state regulator/rectifier Battery: 12 volt, 19 amp-hour Headlight: Quartz halogen 60/55 watts Taillight: 5/21 watts (dual bulbs) Turn Signals: self-cancelling

COLORS

Yellow Jacket Pearl, ice White Pearl, Caribbean Candy Blue, Black sapphire Pearl and Red Snap
