| ITEMS |
MODELS |
|
|
|
|
|
|
|
|
|
|
| Type |

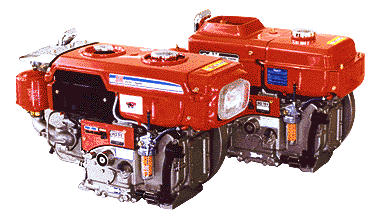

Horizontal
Water-Cooled 4-Cycle Diesel Engine |
| Number
of Cylinder |
1 |
| Cylinder
Bore x Piston Stroke |
(mm) |
|
78
x 84 |
84
x 84 |
86
x 90 |
92
x 90 |
94
x 90 |
78
x 84 |
84
x 84 |
86
x 90 |
92
x 90 |
|
|
401 |
465 |
522 |
598 |
624 |
401 |
465 |
522 |
598 |
|
|
7(5.15)/2200 |
8(5.88)/2200 |
9.5(6.99)/2400 |
11(8.09)/2400 |
11.5(8.46)/2400 |
7(5.15)/2200 |
8(5.88)/2200 |
9.5(6.99)/2400 |
11(8.09)/2400 |
| Continuous
Rated Output |
(HP(kW)/rpm) |
|
6(4.41)/2200 |
7(5.15)/2200 |
8.5(6.25)/2400 |
9.5(6.99)/2400 |
10.5(7.72)/2400 |
6(4.41)/2200 |
7(5.15)/2200 |
8.5(6.25)/2400 |
9.5(6.99)/2400 |
| Specific
Fuel Consumption |
(g/HP/hr)
|
|
| (At
Continuous Rated Output) |
|
210 |
| Compression
Ratio |
23.5:1 |
23:1 |
21:1 |
23.5:1 |
23:1 |
21:1 |
|
|
0.16-0.20 |
0.195-0.235 |
0.16-0.20 |
0.195-0.235 |
|
|
2.3/1800 |
2.7/1800 |
3.0/1700 |
3.5/1600 |
3.7/1700 |
2.3/1800 |
2.7/1800 |
3.0/1700 |
3.5/1600 |
| Cooling
Water Capacity |
(I) |
|
1.6 |
2.1 |
9 |
12 |
|
|
8 |
10 |
8 |
10 |
| Crank
Case Oil Capacity |
(I) |
|
1.9 |
2.3 |
1.9 |
2.3 |
| Fuel |
Light
Diesel Oil (SAE No. 2-D) |
| Lubricating
Oil |
SAE
# 30 , 40 or API (CB , CC) |
| Combustion
System |
Spherical
Combustion System (Swirl Chamber) |
| Cooling
System |
Radiator |
Hopper |
| Lubricating
System |
Forced
Lubrication With Trochoid Pump |
| Air
Cleaner Type |
Wet
Type |
| Starting
System |
Speed
Doubling Handle by Hand |
| Direction
of Revolution |
Counter
- Clockwise Facing Fly Wheel |
| Net
Weight (Dry Weight)
|
(kg) |
|
89 |
91 |
110 |
114 |
115 |
82 |
85 |
105 |
110 |
| Lamps |
12
V. , 45/45 Watt |
