Dynamic Integrated Training Simulator

Data Communication and Control (Pvt) Ltd.

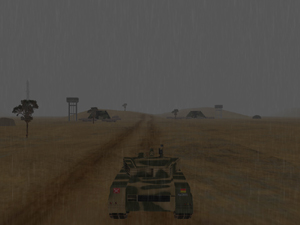

This advanced 3D Simulation and Graphics Engine was designed specifically to simulate the features of the Al-Khalid Tank.
The simulator was designed to train the driver, gunner and commander of this tank by providing different scenarios and different war conditions.

The complete 3D Engine is huge, it has many modules and many sub-modules in them. Basically, the entire engine can be categorized into following main parts.

Graphics Engine
Physics Engine
Communication Engine
3D-Modeling
  • Day/Night times
  • dynamic lighting and shadow effects

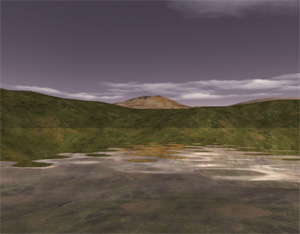

  • Real-time Reflection for Water
  • Visibility changes due to rain, fog and etc.

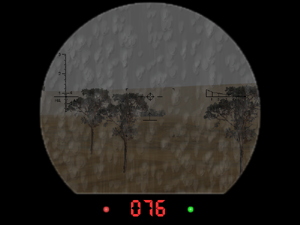

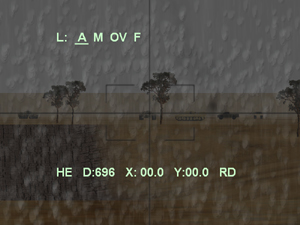

  • Rain effects
  • Snow effects
  • Lightning effects
  • Particle system for smokes, debris and etc.
  • Motion controllers
  • Loading 3D models of different objects
  • Loading Hierarchical models for helicopters, Tanks and etc.
  • Skin Mesh Support for Soldiers
  • Active and Intelligent enemies (Tank, APCs and soldiers)
  • Implementation of Newtonian Physics
  • Real-time tank dynamics
  • Trajectory calculation of different type of Ammo
  • Lead angle and super elevation calculation
  • Fast-Accurate Collision Detection and response Algorithms


  • Responsible for communication between 7 Graphics Systems
  • Real-time and synchronized communications engine
  • Developed using DirectPlay9 Technology
  • Intelligent system using both UDP and TCP/IP communication
  • Based on Client / Server architecture
  • Low polygon but highly detailed 3D models
  • Accurate 3D models of Indian tanks, APCs, Trucks and helicopters
  • Animated meshes for soldiers
  • Static meshes for Houses, Trees, electricity poles and dozen of other objects to make the environment as life like as possible.



Click here to view the detailed 3D Images and specifications of the 3DModels developed for this project.
