The Best of Ferrari
500 Mondial
The 500 Mondial was made during the year 1953. It was a one seater
racing car that looked awesome in a distinct way. Compared to the
racing cars of its time, it was very streamlined. It did not have the
box look but had a smooth look to it. Even though it had a 4 cylinder
engine, it was considered to be fast in those days. This car is very
rare to find nowadays and it is very hard to find background
information on it. The only things that are known about this car are
the specifications listed below.
Specifications-
Engine:
Front longitudinal in-line 4 cylinder
Bore and Stroke:
90 x 78 mm
Unitary and Total Displacement:
496.21/1,984.85 cc
Compression Ratio:
9:2
Maximum Power Output:
170 bhp at 7,000 rpm
Timing Gear:
2 valves per cylinder
Fuel Feed:
2 Weber 45 DCOA/3 carburettors
Ignition:
Twin-plug, 2 magnetos
Transmission:
Multi-plate clutch
Chassis:
Elliptical section steel tubes
Front Suspension:
Independent, double wishbones, transverse lower leaf spring
Rear Suspension:
De Dion axle, transverse leaf spring
Brakes:
Hydraulic drums
Steering:
Worm and wheel
Wheelbase and Front/ Rear Track:
2,250/1,278/1,284 mm
Dry Weight:
720 kg
Front Tyres:
5.25-16
Rear Tyres:
6.00-16
Fuel Tank:
145 vlitres

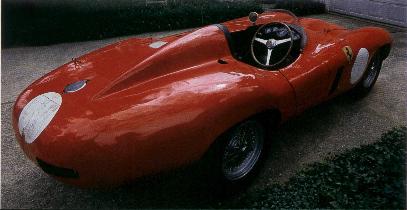

Click on the picture above to go back to the main page.
