_10_________H-Y2_________1992_

Φωτογραφίες

SPECIFICATIONS

Frequency response

30Hz-110Hz (+_1,5%)

Sensitivity

87 dB +_3%

Impedance

8 Ohms

Power handling

15-120 Watts

Crossover

120 Hz 6 dB/Oct.

Drive units

Tow 162,5mm woofer polycone CEAS (Made in Norway)

Power

2 x 60 W RMS

Bass loading

105mm*2,5mm tuned port

Dimensions

507mm#295mm#350mm V=38lt

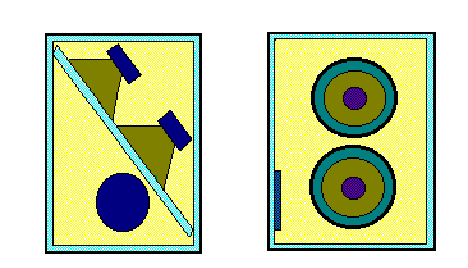

Band pass technique, tow channels drive.

Construction 200mm marble, twin cabinet.

2 Loudspeakers are inside cabinet 1

loading the tuned port in cabinet 2.

There is possibility of using other kinds of

crossover, and multi cable connections.
