 Certified Values: |
Manufacturer's Data |
|
 Total Impulse: 0.62 N-sec
Delays available: 2, 4 sec
Size: 10.5mm x 38mm
Propellant mass: 0.75 g BP
Certified by: NAR
|
Total Impulse: 0.62 N-sec
Thrust Duration: 0.23 sec
Maximum Thrust: 5.0 N
Delays available: 2, 4 sec
Initial weight: 3.54/3.84 g
Propellant weight: 0.75 g
|
|
| NAR S&T Test Data: |

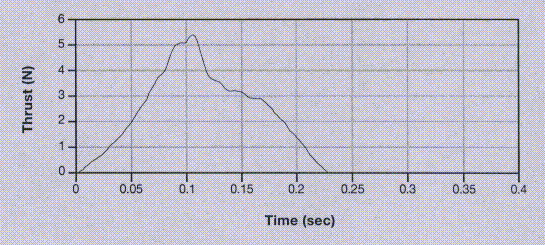

Typical Thrust-Time Curve: |
| Total Impulse: 0.57 N-sec
Average thrust: 2.48 N
Peak thrust: 5.4 N
Burn time: 0.23 sec
Post-burn mass: 2.2 g
|
|
| wRASP Data:
Total Impulse: 0.6 N-sec
Delays available: 2, 4, 6 sec
Size: 10mm x 38mm
Total mass: 0.00385 kg
Propellant mass: 0.00075 kg
|
|
