 Certified Values: |
Manufacturer's Data |
|
 Total Impulse: 2.50 N-sec
Delays available: 0, 3 sec
Size: 13mm x 45mm
Propellant mass: 3.8 g BP
Certified by: NAR
|
Total Impulse: 2.50 N-sec
Thrust Duration: 0.8 sec
Maximum Thrust: 13.0 N
Delays available: 0, 3 sec
Initial weight: 6.7/7.9 g
Propellant weight: 3.70/3.78 g
|
|
| NAR S&T Test Data: |

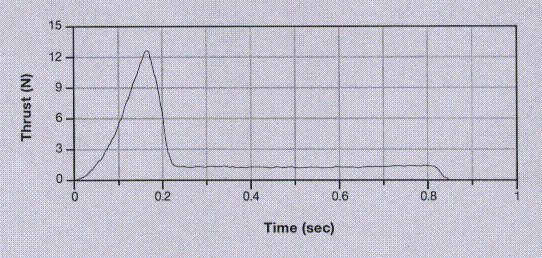

Typical Thrust-Time Curve: |
| Total Impulse: 2.00 N-sec
Average thrust: 2.35 N
Peak thrust: 12.64 N
Burn time: 0.85 sec
Post-burn mass: 3.4 g
|
|
| wRASP Data:
Total Impulse: 2.0 N-sec
Delays available: 0, 3 sec
Size: 13mm x 45mm
Total mass: 0.0076 kg
Propellant mass: 0.00380 kg
|
|
