 Certified Values: |
Manufacturer's Data |
|
 Total Impulse: 2.50 N-sec
Delays available: 3, 5 sec
Size: 18mm x 70mm
Propellant mass: 3.3 g BP
Certified by: NAR
|
Total Impulse: 2.50 N-sec
Thrust Duration: 0.5 sec
Maximum Thrust: 11.8 N
Delays available: 3 sec
Initial weight: 16.2 g
Propellant weight: 3.12 g
|
|
| NAR S&T Test Data: |

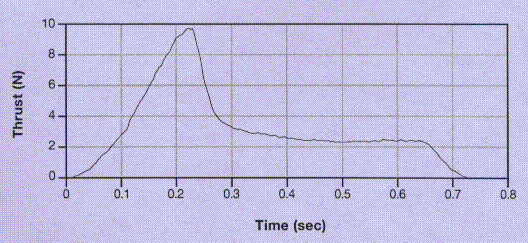

Typical Thrust-Time Curve: |
| Total Impulse: 2.32 N-sec
Average thrust: 3.18 N
Peak thrust: 9.73 N
Burn time: 0.73 sec
Post-burn mass: 10.2 g
|
|
| wRASP Data:
Total Impulse: 2.3 N-sec
Delays available: 0, 3, 5 sec
Size: 18mm x 70mm
Total mass: 0.0162 kg
Propellant mass: 0.00330 kg
|
|
