 Certified Values: |
Manufacturer's Data |
|
 Total Impulse: 4.85 N-sec
Delays available: 2, 4, 6 sec
Size: 18mm x 70mm
Propellant mass: 6.0 g BP
Certified by: NAR
|
Total Impulse: 5.0 N-sec
Thrust Duration: 1.1 sec
Maximum Thrust: 13.2 N
Delays available: 2, 4 sec
Initial weight: 19.8/21.0 g
Propellant weight: 8.33 g
|
|
| NAR S&T Test Data: |

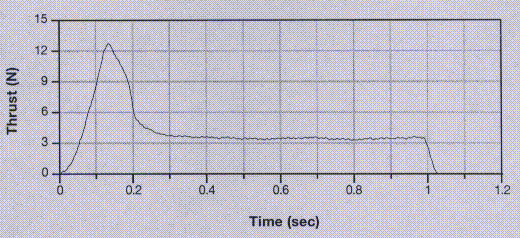

Typical Thrust-Time Curve: |
| Total Impulse: 4.29 N-sec
Average thrust: 4.17 N
Peak thrust: 12.75 N
Burn time: 1.03 sec
Post-burn mass: 10.0 g
|
|
| wRASP Data:
Total Impulse: 4.4 N-sec
Delays available: 2, 4, 6 sec
Size: 18mm x 70mm
Total mass: 0.0196 kg
Propellant mass: 0.0060 kg
|
|
