 Certified Values: |
Manufacturer's Data |
|
 Total Impulse: 4.80 N-sec
Delays available: 5 sec
Size: 18mm x 70mm
Propellant mass: 5.5 g BP
Certified by: NAR
|
Total Impulse: 5.0 N-sec
Thrust Duration: 0.6 sec
Maximum Thrust: 22.2 N
Delays available: 5 sec
Initial weight: 19.3 g
Propellant weight: 6.24 g
|
|
| NAR S&T Test Data: |

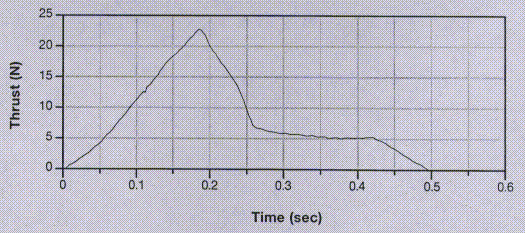

Typical Thrust-Time Curve: |
| Total Impulse: 4.23 N-sec
Average thrust: 8.46 N
Peak thrust: 22.80 N
Burn time: 0.50 sec
Post-burn mass: 10.1 g
|
|
| wRASP Data:
Total Impulse: 4.4 N-sec
Delays available: 5 sec
Size: 18mm x 70mm
Total mass: 0.0178 kg
Propellant mass: 0.0055 kg
|
|
