 Certified Values: |
Manufacturer's Data |
|
 Total Impulse: 9.50 N-sec
Delays available: 3 sec
Size: 18mm x 70mm
Propellant mass: 11.3 g BP
Certified by: NAR
|
Total Impulse: 10.00 N-sec
Thrust Duration: 1.9 sec
Maximum Thrust: 21.0 N
Delays available: 3 sec
Initial weight: 25.5 g
Propellant weight: 12.70 g
|
|
| NAR S&T Test Data: |

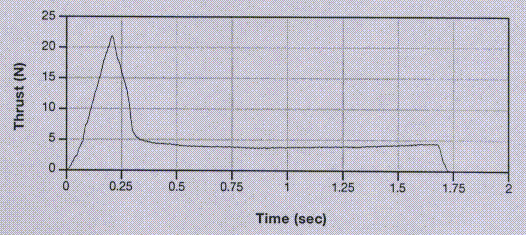

Typical Thrust-Time Curve: |
| Total Impulse: 9.10 N-sec
Average thrust: 5.26 N
Peak thrust: 21.85 N
Burn time: 1.73 sec
Post-burn mass: 9.3 g
|
|
| wRASP Data:
Total Impulse: 9.0 N-sec
Delays available: 3 sec
Size: 18mm x 70mm
Total mass: 0.0232 kg
Propellant mass: 0.0113 kg
|
|
