 Certified Values: |
Manufacturer's Data |
|
 Total Impulse: 9.00 N-sec
Delays available: 0, 3, 5, 7 sec
Size: 18mm x 70mm
Propellant mass: 10.8 g BP
Certified by: NAR
|
Total Impulse: 10.00 N-sec
Thrust Duration: 1.6 sec
Maximum Thrust: 15.3 N
Delays available: 0, 3, 5, 7 sec
Initial weight: 22.7/24.9/25.8/26.9 g
Propellant weight: 12.48 g
|
|
| NAR S&T Test Data: |

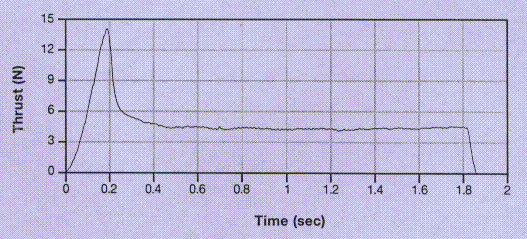

Typical Thrust-Time Curve: |
| Total Impulse: 8.82 N-sec
Average thrust: 4.74 N
Peak thrust: 14.09 N
Burn time: 1.86 sec
Post-burn mass: 9.4 g
|
|
| wRASP Data:
Total Impulse: 8.5 N-sec
Delays available: 0, 3, 5, 7 sec
Size: 18mm x 70mm
Total mass: 0.0222 kg
Propellant mass: 0.0108 kg
|
|
