 Certified Values: |
Manufacturer's Data |
|
 Total Impulse: 18.00 N-sec
Delays available: none
Size: 24mm x 70mm
Propellant mass: 24.5 g BP
Certified by: NAR
|
Total Impulse: 20.00 N-sec
Thrust Duration: 1.8 sec
Maximum Thrust: 27.6 N
Delays available: none
Initial weight: 44.0 g
Propellant weight: 24.93 g
|
|
| NAR S&T Test Data: |

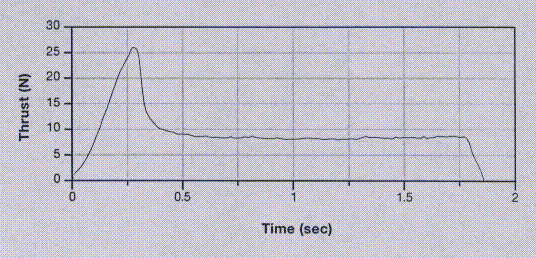

Typical Thrust-Time Curve: |
| Total Impulse: 17.49 N-sec
Average thrust: 9.40 N
Peak thrust: 26.01 N
Burn time: 1.86 sec
Post-burn mass: 21.4 g
|
|
| wRASP Data:
Total Impulse: none N-sec
Delays available: none
Size: none
Total mass: 0 kg
Propellant mass: 0 kg
|
|
