 Certified Values: |
Manufacturer's Data |
|
 Total Impulse: 17.00 N-sec
Delays available: 0, 3, 5, 7 sec
Size: 24mm x 70mm
Propellant mass: 21.1 g BP
Certified by: NAR
|
Total Impulse: 20.00 N-sec
Thrust Duration: 1.6 sec
Maximum Thrust: 32.9 N
Delays available: 0, 3, 5, 7 sec
Initial weight: 40.9/42.2/43.1/44.0 g
Propellant weight: 24.93 g
|
|
| NAR S&T Test Data: |

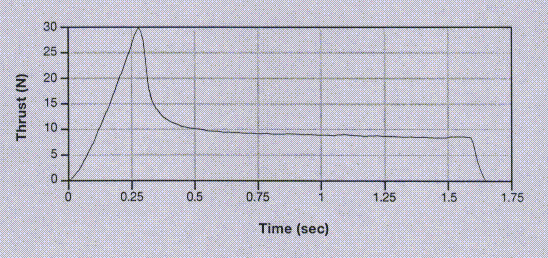

Typical Thrust-Time Curve: |
| Total Impulse: 16.84 N-sec
Average thrust: 10.21 N
Peak thrust: 29.73 N
Burn time: 1.65 sec
Post-burn mass: 16.0 g
|
|
| wRASP Data:
Total Impulse: 15.8 N-sec
Delays available: 0, 3, 5, 7 sec
Size: 24mm x 70mm
Total mass: 0.0438 kg
Propellant mass: 0.0211 kg
|
|
