 Certified Values: |
Manufacturer's Data |
|
 Total Impulse: 32.00 N-sec
Delays available: 4, 6, 8, P sec
Size: 24mm x 89mm
Propellant mass: 35.0 g BP
Certified by: NAR
|
Total Impulse: 32.00 N-sec
Thrust Duration: 2.6 sec
Maximum Thrust: 20.5 N
Delays available: 4, 6, 8, P sec
Initial weight: 56.6/57.3/58.0/60.0 g
Propellant weight: 35.5/37.2(P) g
|
|
| NAR S&T Test Data: |

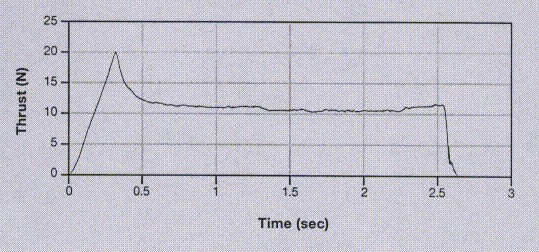

Typical Thrust-Time Curve: |
| Total Impulse: 29.50 N-sec
Average thrust: N/A
Peak thrust: 20.05 N
Burn time: 2.63 sec
Post-burn mass: 18.4/25.0(P) g
|
|
| wRASP Data:
Total Impulse: 29.4 N-sec
Delays available: 0, 4, 7 sec
Size: 24mm x 90mm
Total mass: 0.0610 kg
Propellant mass: 0.0350 kg
|
|
