 Certified Values: |
Manufacturer's Data |
|
 Total Impulse: 1.25 N-sec
Delays available: 2, 4 sec
Size: 13mm x 45mm
Propellant mass: 2.0 g BP
Certified by: NAR
|
Total Impulse: 1.25 N-sec
Thrust Duration: 0.3 sec
Maximum Thrust: 9.3 N
Delays available: 2 sec
Initial weight: 5.6 g
Propellant weight: 1.75 g
|
|
| NAR S&T Test Data: |

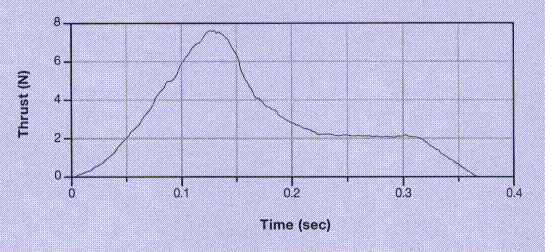

Typical Thrust-Time Curve: |
| Total Impulse: 1.09 N-sec
Average thrust: 3.03 N
Peak thrust: 7.62 N
Burn time: 0.36 sec
Post-burn mass: 3.5 g
|
|
| wRASP Data:
Total Impulse: 1.2 N-sec
Delays available: 0, 2, 4 sec
Size: 13mm x 45mm
Total mass: 0.0066 kg
Propellant mass: 0.0020 kg
|
|
