 Certified Values: |
Manufacturer's Data |
|
 Total Impulse: 1.25 N-sec
Delays available: 2 sec
Size: 18mm x 70mm
Propellant mass: 2.6 g BP
Certified by: NAR
|
Total Impulse: 1.25 N-sec
Thrust Duration: 0.3 sec
Maximum Thrust: 11.8 N
Delays available: 2 sec
Initial weight: 15.0 g
Propellant weight: 1.56 g
|
|
| NAR S&T Test Data: |

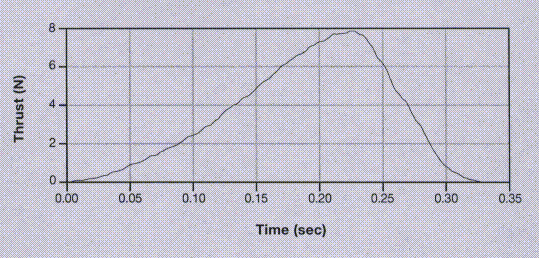

Typical Thrust-Time Curve: |
| Total Impulse: 1.13 N-sec
Average thrust: 3.42 N
Peak thrust: 7.86 N
Burn time: 0.33 sec
Post-burn mass: 9.9 g
|
|
| wRASP Data:
Total Impulse: 1.1 N-sec
Delays available: 0, 2, 4 sec
Size: 18mm x 70mm
Total mass: 0.0150 kg
Propellant mass: 0.0026 kg
|
|
