One of my hobbies has been electronics since age of 15.
Here are some of my works...
Tank T.V. Game | ![]() ![]() |
I made it 12 years ago. |

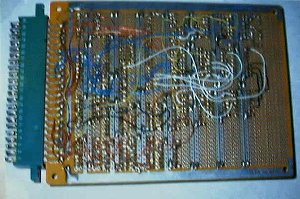

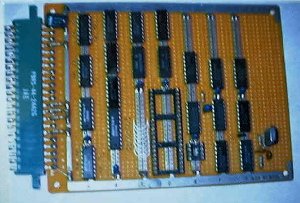

I/O port card for Microcomputer FM-7 | ![]() ![]() |
. |
T.V. frequency converter | ![]() |
. |
Clock | ![]() |
parts were so inexpensive that I made it. |
Rhythm box | ![]() |
. |
F.M. frequency converter | ![]() |
I made PCB too. |
L.E.D. Oscilloscope | ![]() ![]() ![]() |
condensed three layer structure 8 years ago |
Streo Pre-amplifier | ![]() ![]() ![]() |
used FET. I made it when I was in high school. |
F.M. Synthesizer card for microcomputer FM-7 | ![]() ![]() |
easy. used very thin lines The more advanced type was exhibited in the Microcomputer Show in Tokyo and Osaka in 1986. |
F.M. Synthesizer computer using Z80 | ![]() ![]() ![]() |
It sounds attached with keyboard and speaker. |
Electrical melody player | ![]() ![]() |
easy made when I was a junior-high student. |
T.V. game for 2 people | ![]() ![]() |
easy I made PCB too. |
EP-ROM writer for microcomputer FM-7 | ![]() |
It was hard to find all the parts. very easy. |
EP-ROM writer (kit) | ![]() |
RS232C interface. |
Power amplifier with Surround processor | ![]() ![]() |
. |

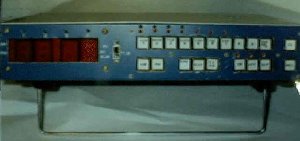

Frequency counter | ![]() ![]() ![]() |
We can see rechargeable battery inside. |

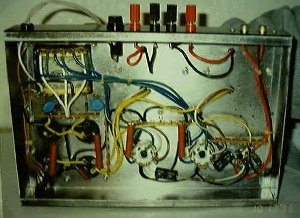

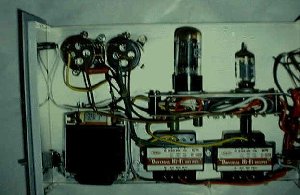

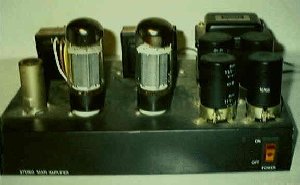

Power amplifier using vacuum tubes | ![]() ![]() ![]() ![]() |
good sound one of my favorites. easy. |
Power amplifier using vacuum tubes | ![]() ![]() |
This one has more power than above. |
Floppy disk duplicator | ![]() ![]() |
It could copy any floppy disks (2D). I made it 10 years ago. |
T.V. game for 2 people | ![]() ![]() |
. |
Infr remote-controller | ![]() |
kit |

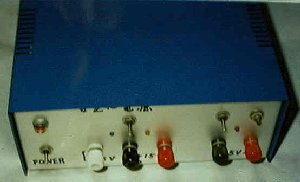

Power supplier | ![]() ![]() |
kit |
4-bit microcomputer-clock | ![]() ![]() ![]() |
We can see outlets. condensed. |
Z80 microcomputer | ![]() ![]() ![]() |
easy kit. |
Stero surround power amplifier | ![]() ![]() ![]() |
with level meters, HD64180, LCD |
