Version 2

"I am a Jedi, as my father was before me."

Click on the picture for a 800X600 rendering for more detail.

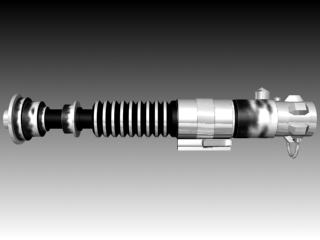

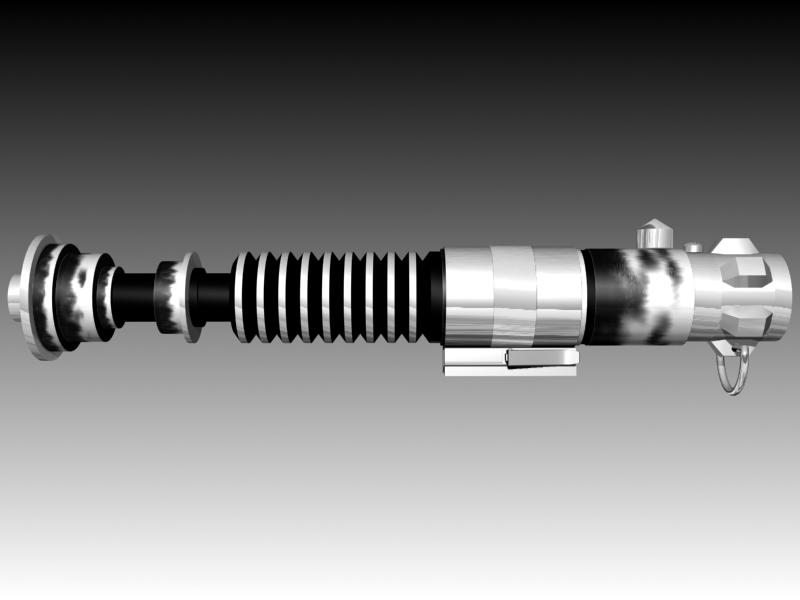

The basis for this saber design had to come from the original Obi Wan Kenobi saber from ANH.  OWK's saber was created from LOTS of found items, but Luke's from ROTJ, was either lathed or CNC'd out of a solid metal bar.  Side View

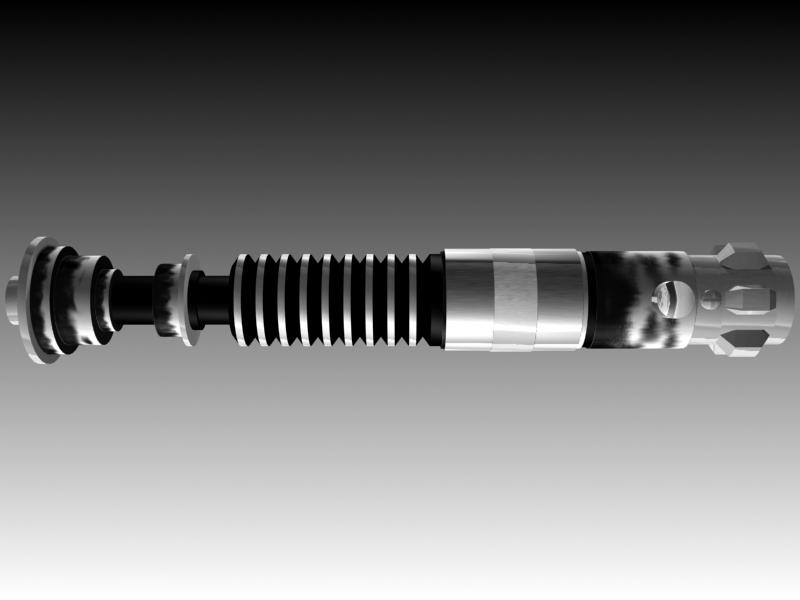

Some of the stunt sabers had Graflex clamp assemblies on them.  While others were attached boxes.  At least one version of this saber in the movie was Obi Wan Kenobi's stunt prop from ANH. Top View

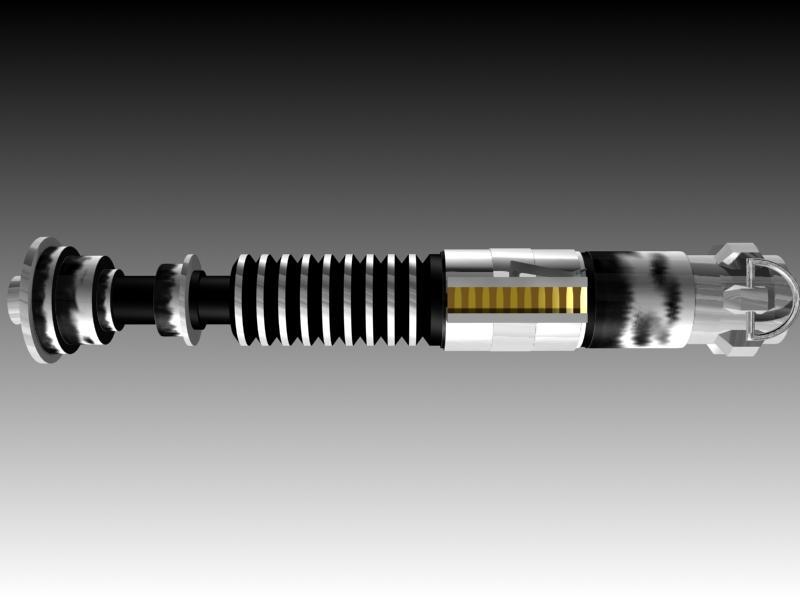

This saber can be created "hardware-wise" by using fender washers, and aluminum tubing. Bottom View
Final Rendering.  I am building one of these.  I will also post a tutorial for it when it is completed.

Update...I am about 3/4 way through building this saber with washers and pipe.  When it is completed, I will be posting the tutorial.  Here are some work in progress shots.

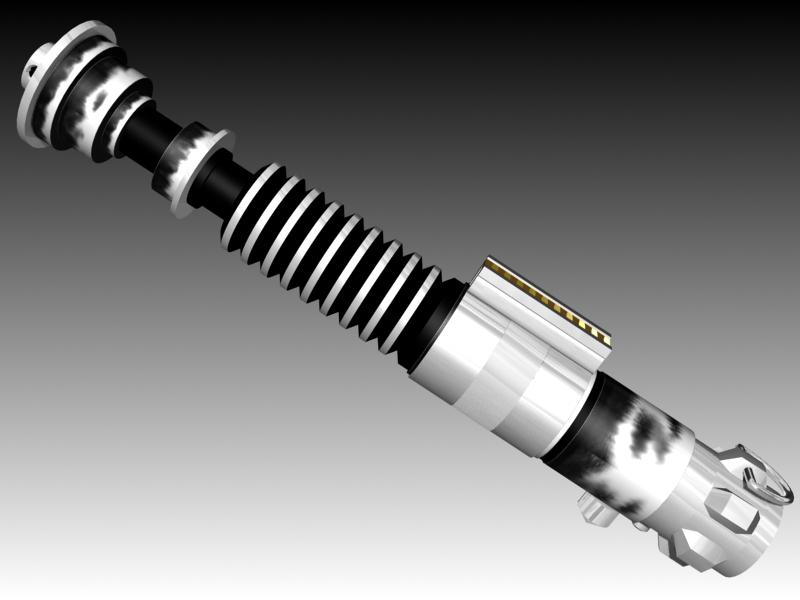

 Beauty Shot
