WENDOVER , BUCKINGHAMSHIRE
This page is about some STREETLIGHTING in WENDOVER in BUCKINGHAMSHIRE.
80s - 90s
The lighting in the side roads are side
entry ELECO (
DAVIS ) GR551 lanterns ,
DAVIS
GR526/II lanterns , THORN
BETA 5 lanterns ( 1980s type ) ,
THORN
BETA 5 lanterns . All these lanterns
are integral gear , 35W SOX bulbs and with NEMA socket
photocells.
SPRING 1998
All the town centre lighting was changed to
8M URBIS HERITAGE BLENHEIM metal posts with the single arm top entry
STRUT brackets with URBIS ALBANY large lanterns ( painted black ,
integral gear , FROSTED ROUND BOWL , SONT BULB , miniature 1 part
photocell ) . The old lighting was 8M metal posts with THORN
ALPHA 3 lanterns ( less gear ,
semi-cut off bowls , SON BULBS and 2 part PHOTOCELLS ) and the posts
and lanterns were painted brown .
Back to Top
PHOTOS
( click on the links for photos )
|
HIGH STREET
YEAR MAY 2003
|
8M URBIS HERITAGE BLENHEIM metal
posts with the URBIS single arm top entry STRUT brackets
with URBIS ALBANY large lanterns ( painted black , integral
gear , FROSTED ROUND BOWL , SONT BULB , miniature 1 part
photocell ) and these lights were installed in the spring
1998 . The old lighting was 8M metal posts with THORN
ALPHA 3 lanterns ( less
gear , semi-cut off bowls , SON BULBS and 2 part PHOTOCELLS
) and the posts and lanterns were painted brown .
|
|
ELLESBOROUGH
ROAD
YEAR MAY 2003
|

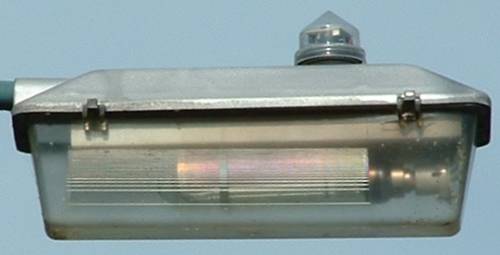

A close up of a ELECO
( DAVIS ) GR551 lantern (
integral gear , 35W SOX bulb , NEMA socket photocell ) which
is along this road. This one is mounted at 5M on a telegragh
post and all the rest of them are on the telegragh posts as
well .
|
|
COLET
ROAD
YEAR MAY 2003
|

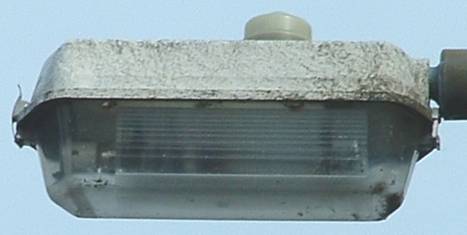

A close up of a DAVIS
GR526/II lantern ( integral
gear , 35W SOX bulb , NEMA socket photocell ) which is along
this road. These lanterns are on 5M metal posts with hockey
stick brackets .
|
