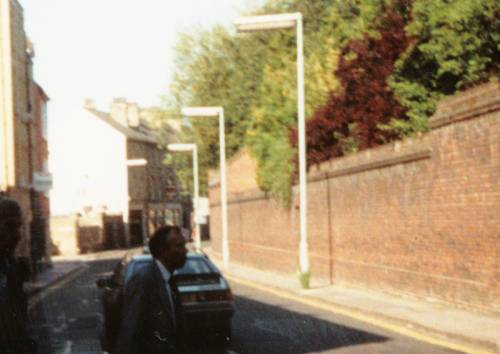

JESSUS LANE
YEAR 1991
|
8 M metal posts with side entry
FLUORESCENT lanterns . When I been along this road in 1998
all these lights have all gone and the new there are new
posts with SONT lanterns.
|
|

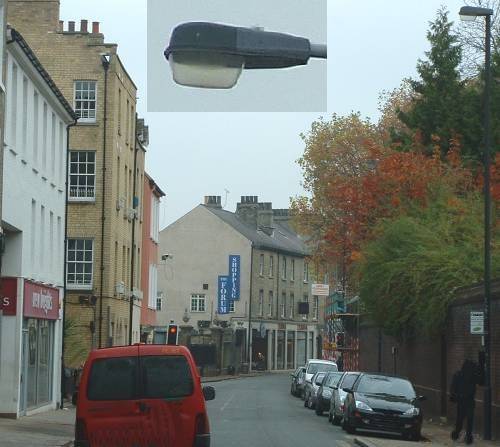

JESSUS LANE
YEAR NOV 2003
|
The posts are BRITISH STEEL
10M metal posts with post top URBIS ZX3 lanterns ( SONT
bulbs , deep bowls , black colour canopy , NEMA socket
photocells ) and the posts are painted black . This
was taken Nov 2003 .
|
|

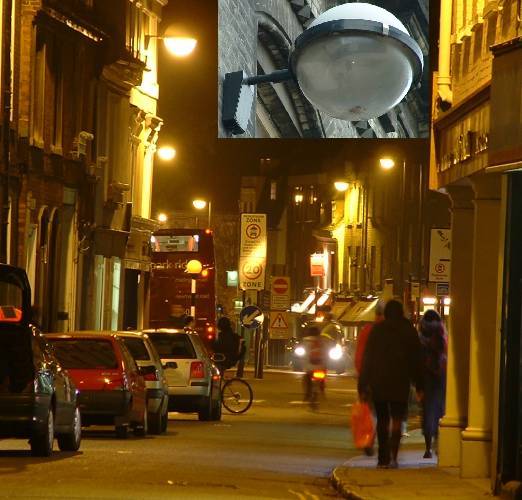

SIDNEY STREET
YEAR NOV 2003
|
This was taken at night and the lanterns are CU PHOSCO
P290 LARGE BANDED SPHERE lanterns (
SONT bulbs , miniature 1 part photocells ) and these
are mounted at 8M on the walls.
|
|

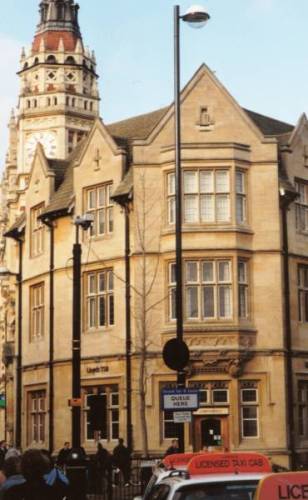

JUNCTION OF
ST
ANDREWS STREET ,
SIDNEY STREET ,
HOBSON STREET .
YEAR 2000
|
Modern 10M post with a side entry
globe lantern ( SONT BULB ).
|
|

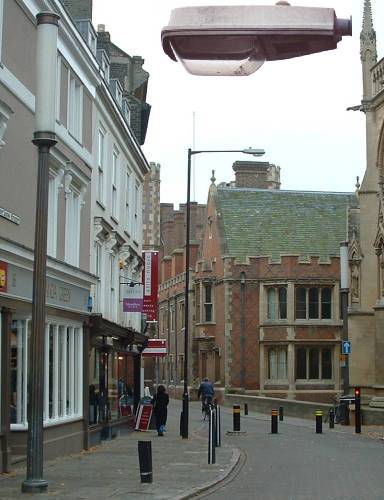

ST JOHN
STREET
YEAR NOV 2003
|
6M REVO cast iron posts with a post
top REVO RICHARDSON CANDLE lanterns and some of these are
wall mounted . There is a lot of these along this road and
these lanterns have got four 5ft 80W FLUORESCENT tubes in
them. There is a new 8M metal post with a PHILIPS
SGS 203 lantern ( SONT bulb
, NEMA socket photocell ) .
For more information on these REVO
RICHARDSON CANDLE lanterns and posts , go to SIMONS
web site.
|
|

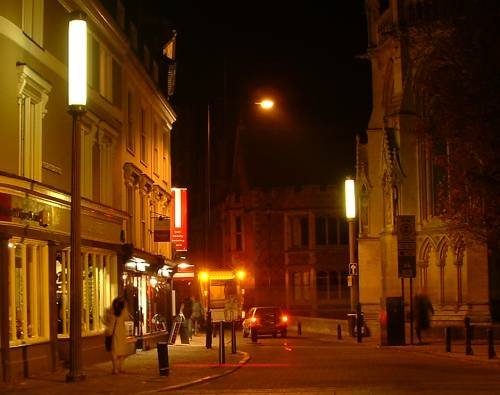

ST JOHN
STREET
YEAR NOV 2003
|
This is the same as the last photo and this was taken at
night.
|
|

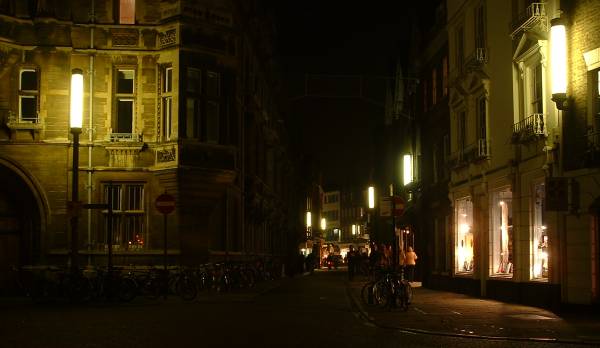

TRINITY
STREET
YEAR NOV 2003
|
There is one 6M REVO cast iron post
with a post top REVO RICHARDSON CANDLE lanterns and there is
a lot of these are wall mounted along this bit of road and
this was taken at night.
|
|
KINGS
PARADE .
( Near the junction of BENET STREET
)
YEAR 2000
|
This is a close up of a new
experimental lantern . It is a copy of a REVO RICHARDSON
CANDLE lantern and this has got a MH bulb at the top of it
instead of four 5ft 80W FLUORESCENT tubes .This is the only
one in CAMBRIDGE . There is a drawing of this lantern on the
CANDELA web site.
|
|

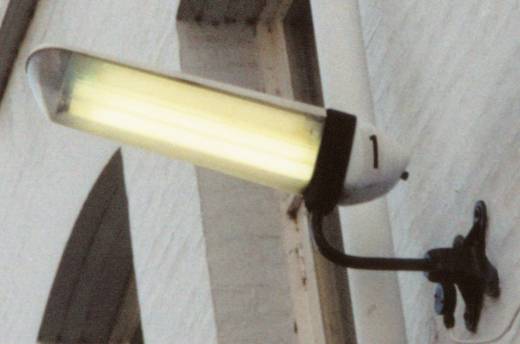

MARKET PASSAGE
YEAR 2000
|
A wall mounted side entry REVO JUNIOR SOLETERN FLUORESCENT lantern (
two 2FT 40W FLUORESCENT tubes )
which is mounted at 5M. This lantern is on during the day
.There are 2 of these along the path .
UPDATE NOV 2003 = These 2
old REVO JUNIOR SOLETERN
FLUORESCENT lanterns have now been replaced with
PHILIPS
SGS 201 lanterns ( SONT bulbs , integral gear , NEMA socket
photocells ) .
|
|

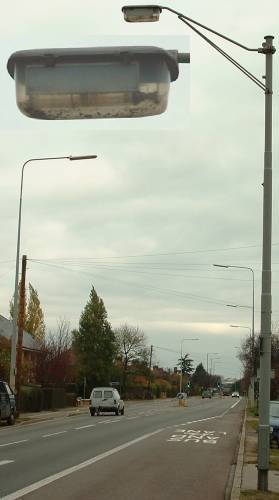

MILTON ROAD (A1309 )
YEAR NOV 2003
|
This photo was taken facing towards the A10 -A14 roads .
This was taken at the junction of FRASER ROAD with MILTON
ROAD (A1309 ) . From FRASER ROAD to the A10 -A14 roads the
posts are 12M octagonal tapered metal type with PHILIPS MA
60 lanterns ( 180W SOX bulbs , less gear , NEMA socket photocells ) .
From FRASER ROAD towards the city centre alot of these
posts are 8M posts and these have got a old REVO control
boxes at the bottom of them. These old post were for gas
lanterns and when these old gas lanterns were changed with
new electic lantens , they put in new brackets which raise
the mounting height of these new lanterns .
There are some new MALLATITE LTD
SENTRY range of 8M metal posts and the lanterns on these are
PHILIPS MA 90 lanterns ( 90W SOX bulbs , less gear ,
NEMA socket photocells ) .
On these old posts are side entry AEI/BTH lanterns ( 90W
SOX bulbs, less gear , NEMA socket
photocells ) and some PHILIPS MA 90 lanterns ( 90W
SOX bulbs , less gear , NEMA socket
photocells ) .
|
|
CHESTERFIELD
ROAD
YEAR NOV 2003
|
There is one REVO JUNIOR SOLETERN
FLUORESCENT lantern ( two 2FT 40W FLUORESCENT tubes ) which is on a 5M
metal post. This is a close up of this lantern.
The rest of the lanterns along this road is side entry
GEC Z9530M ( less gear , 35W SOX bulbs ) , GEC Z9536M ( less
gear , 35W SOX bulbs ) . This road is next to FRASER ROAD .
|
|

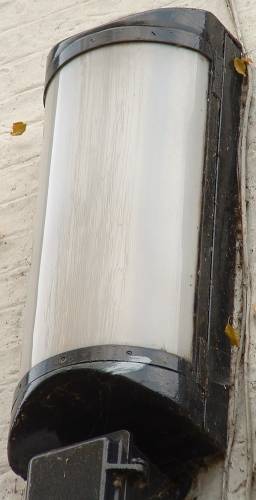

BOTOLPH
LANE
(This is off TRUMPINGTON STREET
)
YEAR NOV 2003
|
There are some UNKNOWN FLUORESCENT lanterns ( 2FT 40W FLUORESCENT tubes ) along this road
and they are mounted at 5M on the wall along this road.
|
