Minimum system
requirements are determined by
the requirements of the Matlab-5 installation.
The CSTP-03 package requires to install:
|
The Matlab-5 |
|
Control System Toolbox |
|
Identification Toolbox |
|
Simulink Toolbox |
The time response Initial Data File comprises (see example below):
|
Current time (Time), preferable in the first column; |
|
PV (Process Variable), the output of the tuned control loop, preferable in the second column; |
|
CO (Controller Output), the input of the final controlling element, preferable in the third column; |
|
SP (Set Point) of the closed control loop, preferable in the fourth column. |

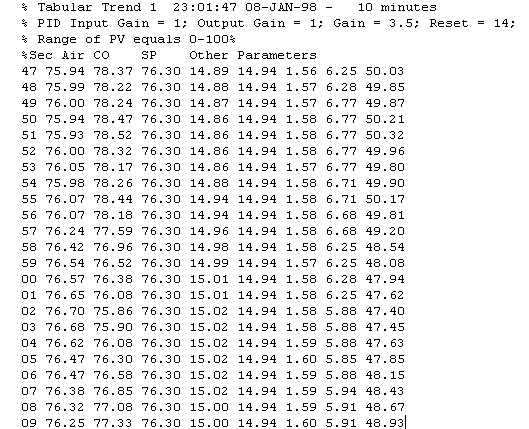

Example of Initial Data File
