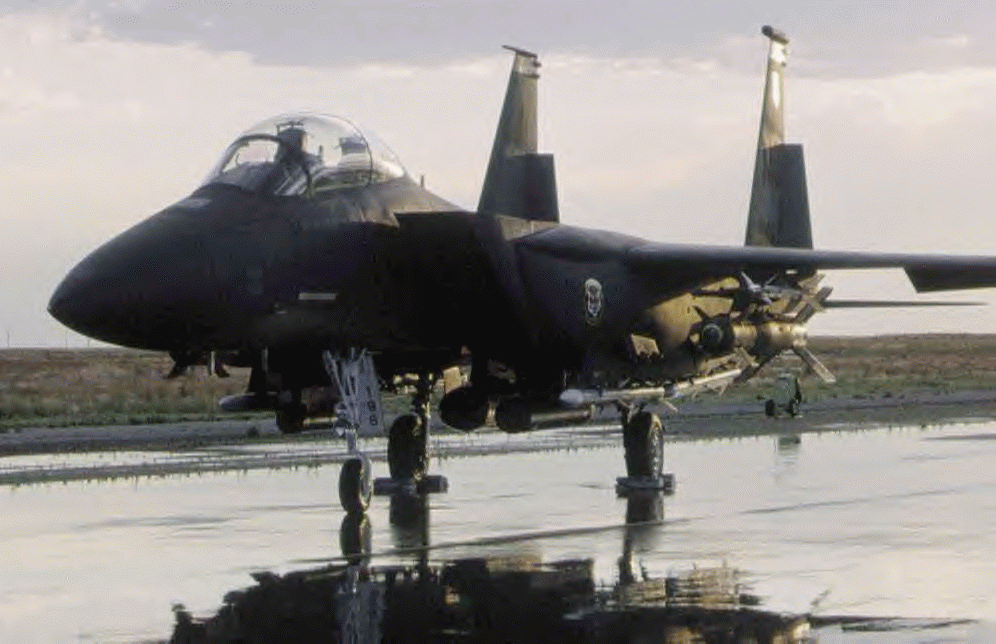

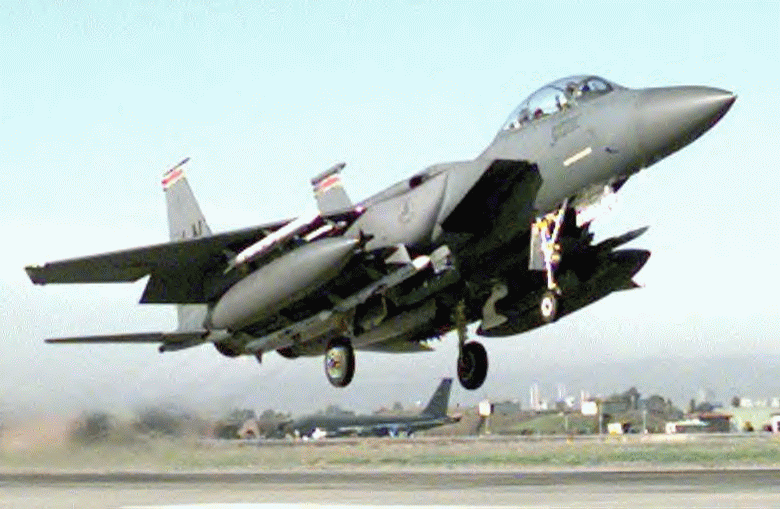

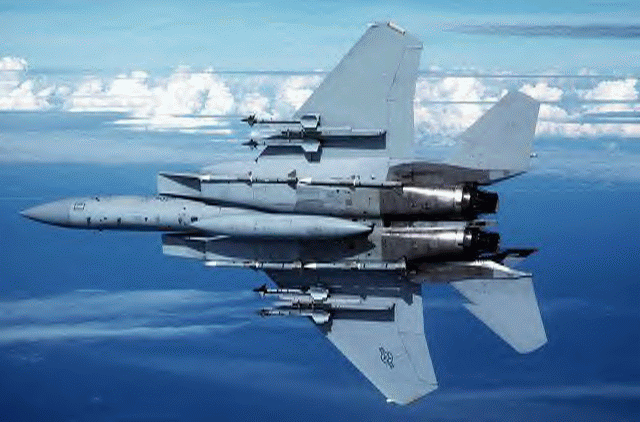

F-15 Eagle
The F-15 Eagle is an all-weather, extremely maneuverable, tactical
fighter designed to gain and maintain air superiority in aerial combat.
The Eagle's air superiority is achieved through a mixture of
maneuverability and acceleration, range, weapons and avionics.
The F-15 was first deployed in 1972 and the strike version F-15E
in 1987 and eventually replaced the F-111. The F-15 is very fast,
it can reach speeds of almost 1,900mph and altitudes of 65,000ft.
Primary Function Tactical fighter.
Contractor McDonnell Douglas Corp.
Power Plant Two Pratt & Whitney F100-PW-100 turbofan engines with afterburners.
Thrust (C/D models) 25,000 pounds each engine ( 11,250 kilograms).
Length 63 feet, 9 inches (19.43 meters).
Height 18 feet, 8 inches (5.69 meters).
Wingspan 42 feet, 10 inches (13.06 meters)
Speed 1,875 mph (Mach 2.5-plus at sea level).
Ceiling 65,000 feet (19,697 meters).
Maximum Takeoff Weight (C/D models) 68,000 pounds (30,600 kilograms).
Range 3,450 miles (3,000 nautical miles) ferry range with conformal fuel tanks and three external fuel tanks.
Armament 1 - M-61A1 20mm multibarrel internal gun, 940 rounds of ammunition
4 - AIM-9L/M Sidewinder and 4 - AIM-7F/M Sparrow missiles, or combination of AIM-9L/M, AIM-7-F/M and AIM-120 missiles.
Crew F-15A/C: one. F-15B/D: two.
Unit cost $FY98
[Total Program] $43 million.
Date Deployed July 1972
Production
[for USAF] 360 F-15A/B
408 F-15C
61 F-15D
203 F-15E
Total Inventory 275 F-15A/B
410 F-15C/D
203 F-15E
Approximately 100 F-15s are in storage @ AMARC
PMAI
Primary Mission Aircraft Inventory
45 F-15A/B Air National Guard
126 F-15C/D Air Combat Command
90 F-15C/D Pacific Air Forces
36 F-15C/D US Air Forces Europe
342 F-15A/C TOTAL
66 F-15E Air Combat Command
18 F-15E Pacific Air Forces
48 F-15E US Air Forces Europe
132 F-15E TOTAL
|
|
|
|
