Permanent Mounting Pier

Home

Equipment

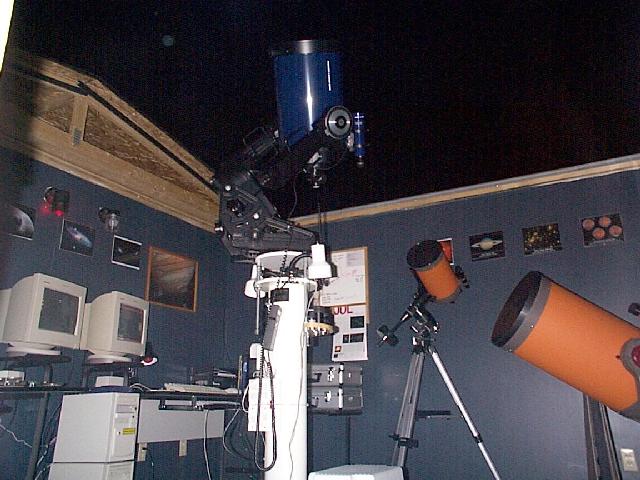

The permanent pier mount was originally designed the mount to support an 8" Schmidt-Cassegrain telescope.  When the much larger 12" LX200 arrived, no modifications other than cutting 10" off the pier tube were required (due to the increased height of the 12" scope). The mount has only required very minor leveling adjustments since installed, and provides a very stable platform for the large scope.

Photos

Upcoming  Events

Current  Projects

For basic mount plans Click Here

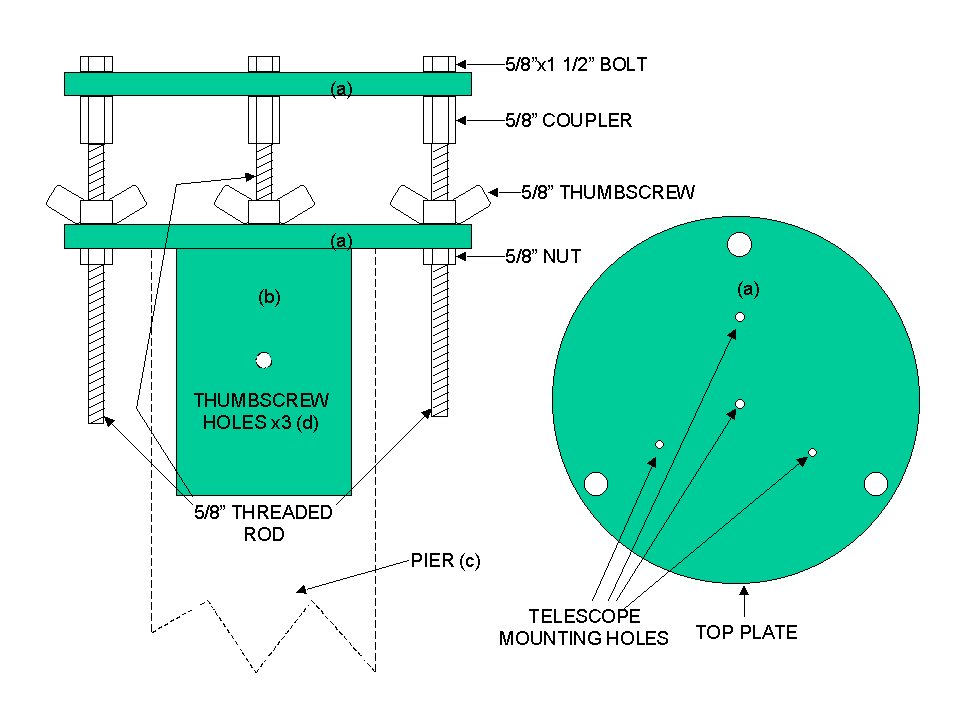

The primary instrument at the observatory is a permanently mounted 12" LX200.  The top and bottom mounting plates (a) are 1/2 inch plate steel cut into 11" circles. The bottom plate has a 5" O.D. pipe  (b) welded on to it . This pipe fits into the pier (c) (6 1/2" I.D.), and is secured by 3 large thumb screws (d). Three 5/8" threaded steel rods are bolted to the top plate. These rods pass  holes in the bottom plate. 5/8"hex nuts and butterfly nuts are threaded onto the rods to make the top plate adjustable for height and level. Azimuth (direction) is adjusted by rotating the whole top assembly, then locking it down with the 3 thumbscrews.
