Software Option Release Information.
Rel	Feature	Benefit
4.90	Mixed Lan	Allows for a TR and Enet to be installed in the same 6520
4.90	SLAC Station Increase	Increases the range for SLAC stations from 64 to 250 stations
4.90	Dual Ethernet SDLC	Allows a node to have two Ethernets supporting SLAC.
4.90	6520 ISDN SNMP Support	Provides read-only access to Configuration and Statistics Objects
4.90	IPX SAP Filter	Provides added flexibility when filtering IPX SAP
		Broadcasts. Allows for one default action of PASS or
		BLOCK to be specified in the SAP Filter Table.
4.90	Half Duplex SDLC	Supports RTS/CTS handshaking on HPAD and TPAD
		ports. This is useful for multi-dropping HPADs or
		supporting half-duplex devices on the TPAD.
4.90	Time of Week ISDN	Restricts dial-out and dial-in access for ISDN ports
		during specified time of day/week periods. This option
		adds three entries to the Switched Services Table.
4.90	BoD Enhancements	Used for network protocols which are connectionless
		(IP). Allows network congestion to be the trigger
		mechanism for bringing up additional bandwidth. When
		additional bandwidth is allocated, IP traffic is balanced
		between the primary and secondary link.
4.90	APAD Enhancement	Adds Autobaud at 14.4 and 28.8 kbps for autospeed
		recognition characters, Packet Size Negotiation Facility,
		Bi-directional call for async hosts, Supports Hughes
		Mnemonics, and CTP Facility with use Password.
4.90	TCOP Enhancement	Adds support for UTS (Uniscope) protocol and Reuters
		protocol.
4.90	IP RIP On Demand	Provides a solution for On Demand circuits using RIP. It
		allows RIP broadcasts to be sent over the WAN
		interface(s) as necessary.
4.90	BAN Frame Format	Frame Relay LLC Stations now support BAN Frame
		Format. This feature supports interoperability with IBM's
		Network Control Program, Version 7.3 BAN Frame
		Format.
4.90	All Subnets Broadcast	Allows a single broadcast message to be sent to multiple
		remote networks.
4.90	SMDS	Supports IP Routing, IPX Routing, Transparent
		Bridging, and Management support using DXI SIP
		Level 2.
4.90	IP Load Balancing	Allows you to configure a secondary port in your 6520 to
		handle some of the data traffic from a congested primary
		port. Once the traffic drops below a configured
		threshold, the secondary port goes down and the primary
		takes all the traffic.
4.90	DCC SIMM	This Data Compression enhancement provides additional
		channels and throughput capability. 75 channels are
		available without the Software Access key (SAK), 508
		with the SAK.
4.91	5th SCC	This feature allows a Vanguard 300/305 to use ISDN-D
		over the CTP (port 4).
4.91	GSC Lottery	GSC protocol is a polled asynchronous protocol
		developed by GTECH Corporation for lottery
		applications. It is used for communication between
		GTECH's GTX polling controller at the central site and
		the lottery terminals located at the retail site.
4.91	3201 Protocol	3201 is an asynchronous polling protocol for controllers.
		3201 PADs allow the host computer to communicate
		with the devices at the remote end via X.25 connections
		between the host and the controller.
4.91	T3POS Protocol	T3POS is a transaction processing protocol for point of
		service devices. T3POS PADs allow terminal equipment
		to communicate with ISPs (Information Service
		Providers) via virtual circuits supported by an X.25-
		based PPSN (Public Packet Switched Network).
4.91	TCP/Telnet	TCP/Telnet is now supported on the Vanguard 100 and
		200, and the 6500 PLUS .
4.91	SNMP Support	With this release SNMP support is available with GSC
		and 3201 protocols.
4.91	TNPP	The Telocator Network Paging Protocol (TNPP) Routing
		option, which provides TNPP frame routing functionality
		for the 65xx and Vanguard, is now supported. A Data
		Communication protocol for communication between
		paging terminals or other types of equipment, TNPP
		Routing provides network connectivity between multiple
		paging terminal networks accross X.25 or Frame Relay
		networks.
4.96	Voice Relay	Allows voice and data traffic to be carried over the same
		circuit. The following voice features are available: Voice
		Switching, FXO, E&M, FXS, Voice Bundling.
4.96	Mixed LANs	Allows for a TR and Enet to be installed in the same 6560
4.96	SLAC Station Increase	Increases the range for SLAC stations from 64 to 250 stations
4.96	Dual Ethernet SDLC	Allows a 6560 node to support two Ethernet LANs running SLAC
4.96	6560 ISDN SNMP Support	Provides read-only access to Configuration and Statistics Objects
4.96	IPX SAP Filter	Provides added flexibility when filtering IPX SAP
		Broadcasts. Allows for one default action of PASS or
		BLOCK to be specified in the SAP Filter Table.
4.96	Half Duplex SDLC	Supports RTS/CTS handshaking on HPAD and TPAD
		ports. This is useful for multi-dropping HPADs or
		supporting half-duplex devices on the TPAD.
4.96	Time of Week	Restricts dial-out and dial-in access for ISDN ports
		during specified time of day/week periods. This option
		adds three entries to the Switched Services Table.
4.96	BoD Enhancements	Used for network protocols which are connectionless
		(IP). Allows network congestion to be the trigger
		mechanism for bringing up additional bandwidth. When
		additional bandwidth is allocated, IP traffic is balanced
		between the primary and secondary link.
4.96	APAD Enhancement	Adds Autobaud at 14.4 and 28.8 kbps for autospeed
		recognition characters, Packet Size Negotiation Facility,
		Bi-directional call for async hosts, Supports Hughes
		Mnemonics, and CTP Facility with use Password.
4.96	TCOP Enhancement	Adds support for UTS (Uniscope) protocol and Reuters
		protocol.
4.96	IP RIP On Demand	Provides a solution for On Demand circuits using RIP. It
		allows RIP broadcasts to be sent over the WAN
		interface(s) as necessary.
4.96	BAN Frame Format	Frame Relay LLC Stations now support BAN Frame
		Format. This feature supports interoperability with IBM's
		Network Control Program, Version 7.3 BAN Frame
		Format.
4.96	All Subnets Broadcast	Allows a single broadcast message to be sent to multiple
		remote networks.
4.96	SMDS	Supports IP Routing, IPX Routing, Transparent
		Bridging, and Management support using DXI SIP
		Level 2.
4.96	IP Load Balancing	Allows you to configure a secondary port in your 6520 to
		handle some of the data traffic from a congested primary
		port. Once the traffic drops below a configured
		threshold, the secondary port goes down and the primary
		takes all the traffic.
4.96	DCC SIMM	The DCC SIMM feature enhances Frame Data
		Compressor functionality by expanding the previously
		supported 15 data compression channels (active virtual
		circuits) to up to 75 channels without the SAK option
		enabled and up to 508 channels with the SAK option.
		This version is generally used to support a central site.
		The actual number of DC channels supported is a
		configurable value. Network Access Product nodes, with
		the exception of Vanguard 310, provide a motherboard
		socket for upgrading from the previously offered DC
		DSP SIMM.
4.97	Multilink PPP	Multilink PPP, which is defined by RFC1717, allows
		application data to be delivered to remote nodes by more
		than one link. This feature uses segmentation and
		reassembly to share the load over several member
		Multilink PPP links.
4.97	Vanguard 310 Series	The Vanguard 310 Series product introduces the Vanguard
		312 PLUS ISDN PAD with POTS (Plain Old Telephone
		Systems) support for telephone and fax.
4.97	650 ISDN PAD Series	This feature introduces POTS (Plain Old Telephone
		Systems) support for the 650 ISDN PAD Series. The 650
		Series now supports telephone and facsimile operation.
4.98	Translational Bridging	This feature is used to bridge traffic between Ethernet and
		Token Ring Networks. Translational Bridging provides a 6520
		with the capability to bridge non-routable protocols, such as
		Netbieu, between a Token Ring and an Ethernet network.
4.98	Enhanced SPX Spoofing	Spoofs SPX Keep Alive packets for all registered SPX
		connections on the network interface, with the ability to detect
		an inactive spx session and perform a reset. This allows new
		connections to be established without delay, while ensuring
		spoofing is not performed for a node that is not operational.
4.98	IPX/IP Spoofing over PPP	This feature allows use of RIP for a PPP/MLPPP WAN
		interface without incurring unnecessary connection charges.
4.98	Voice/Colisee Support	These features have been added to Voice Relay:
		 Code Colisee: a variation of Wink Start Protocol
		 Seizure Acknowledgment: a variation of Delay Start Protocol
		 Echo canceller Control: allows you to disable Echo Canceller
		 DTMF Digit Level Control
		 Voice Diagnostic Test Enhancement
		For detailed information on these features, refer to the Network Access Products
		Voice Relay Option (Part No. T0023).
4.98	TPA 2K Frame Size	This feature avoids segmenting of data packets by allowing
		you to set up the PAD node for uninterrupted delivery of data
		packets of up to 2K in size. During normal operation of the
		Transparent Polled Async (TPA) option, data packets pass
		through a network uninterrupted. However, when passing
		larger TPA packets over a network without this feature, the
		transfer of data becomes bursty and segmenting of data packets occurs.
4.98	X.25 Virtual Circuit Increase	You can now configure up to 4096 SVC channels per port.
4.98	Configurable Mac Address For SLAC Stations	The Internal MAC Address parameter on the LLC-SDLC
		Station Record lets you configure multiple MAC addresses for
		conversion stations where LLC2 multiplexing has a limitation.
4.98	Data Connection Protection for SLAC	SDLC now supports Data Connection Protection for SLAC
	and Enhanced XID Stats	and Enhanced XID Statistics.
4.98	ALC Support on 650D	Airline Control Protocol (ALC) support is now available on 650 products
4.98	Static Routing	The Static Route IPX feature enables IPX to work efficiently
		over dialed links. This feature minimizes and eliminates RIP
		and SAP overhead traffic on switched or permanent WAN
		connections, thereby conserving bandwidth for other uses.
		RIP and SAP messages can be turned off for On Demand SVC
		WAN links, allowing calls to be disconnected when there is no
		other user data to transmit.
4.98	TBOP 16K Frame Increase	The TBOP Option has a new parameter, Maximum Frame
		Size, that allows frame sizes up to 16 kbytes.
4.98	APAD Enhancement	6520 branch nodes, support the MNEN Violation, and X.28
		Clear/Service Message Table features.
4.99	Vanguard 100 Voice	With Release 4.99, Vanguard 100 can now be used to transmit
		voice traffic. Release 4.99 changes the manner in which you
		configure the Voice Switching Table.
5.00	Channelized T1/ E1	The Channelized Data option provides an alternative to using
		Serial Data Boards (SDB) to concentrate data traffic from
		remote nodes attached to the 6560 through a multiplexer.
5.00	6560 Primary Rate Interface	With this release, PISDN Primary Rate Interface (PRI) is
		available on the 6560. PRI connections allows simultaneous
		setup of several calls over packet switched and ISDN networks.
5.00	BSTD station increase	The Burroughs Standard (BSTD) Poll/Select protocol has been
		modified to allow for more configurable station. The range for
		the Port Record parameter Number of Devices has increased
		from 32 to 128.
5.00	Variable Length Phone Numbers	With Release 5.0, Voice Relay supports phone numbers that
		contain more than 11 digits. When the 11th digit is dialed, the
		switch begins to route the call, but it simultaneously waits for
		any additional digits that may be dialed. Additional digits are
		added to the end of the phone number and are used to complete
		the call.
5.00	GSC SNMP Support	SNMP support is now available for the GSC and ALC
5.00	6560 Protocol Support	These protocols are now supported on the 6560:
		 ALC: Refer to the ALC Option
		 GSC: Refer to the GSC Option
		 3201 Refer to the Async Polled Protocol Option
5.00	TCOP SLC/AC100	Transparent Character Oriented Protocol (TCOP) can now
		support SLC and AC100 message formats.
5.00	Smart Line Controller Protocol	The SLC Premise Protocol (SPP) is now available with
		Network Access products, This protocol allows the SLC to
		communicate with a terminal adapter over an ISDN line using
		the D-Channel X.25 packet-switched data service.
5.00	IP Broadcast Forwarding	IP Broadcast Forwarding: IP Broadcast Forwarding supports
		forwarding of local and network broadcast packets from local
		to remote LANs. You can configure both the local LAN IP
		broadcast addresses and IP address of destination LANs. It
		selects the broadcast by local/net IP address and forwards it to
		the destinations selected. It can forward all local broadcasts.
5.00	IPX Parallel SVCs	Parallel SVC feature, also known as Bandwidth on Demand
		(BoD, refers to the ability to activate additional incremental
		Wide Area Bandwidth for IPX traffic, on a packet-by-packet
		basis, when congestion thresholds are exceeded on the primary
		SVC. This incremental bandwidth can be:
		 Additional X.25 SVCs on the same or a different physical port
		 An external dial modem, ISDN-terminal adapter, or
		Switched-56 device connected to a different physical port
5.00	X25 D-Bit	Network Access Products can now use D-bit to acknowledge
		and request acknowledgement from remote nodes. In addition,
		with this release you can configure you network Access device
		to set D-bit on transmitted data.
5.00	UDP Broadcast Forwarding	UDP Broadcast Forwarding: The UDP (User Datagram
		Protocol) Broadcast Forwarding feature supports forwarding of
		local and network broadcasts from local to remote LANs. The
		local and network broadcast packets from selected UDP ports
		are forwarded to selected destinations. You can configure the
		local LAN UDP port number and IP address of destination
		LANs. This feature selects the broadcast by UDP port number
		and forwards it to selected destinations. Not all broadcasts are
		forwarded to all the destinations or selected destinations.
5.00	TPDU Router and Adapter	The Transport Protocol Data Unit (TPDU) protocol is now
		available for Vanguard and 65xx Network Access Products.
		TPDU consists of two software components:
		 Router: these contend with routing TPDU data packets
		from serial access devices to an adapter,
		 Adapter: these typically act as gateways between the
		TPDU protocol connection to the host and the native
		transport protocols used by the access devices.
5.00	CTP Access Level	A new CTP Access password level is available: UserPlus
		Password. This password lets you perform all the standard
		operations available with the User Password, plus you can
		examine node parameter settings and statistics and change
		some aspects of control operations. This feature requires a
		Customer Software Key (CSK).
5.00	Vanguard Voice Relay	Voice Relay is now supported on the Vanguard 100, 300/305, and 320
5.00	Vanguard 320	Release 5.0 announces the first availability of the Vanguard 320
		serial/LAN devices with access to public or private networks,
		from a desktop-size standalone enclosure. The Vanguard 320 is
		available in these configurations:
		 Serial FRAD
		 Voice FRAD
		 Serial ISDN Access
5.00	650D Support	Release 5.0 supports these features for the 650D:
		 Multiple CMEM
		 S/T Version
5.00	New 6560 and Vanguard 320 Port Parameter, Clocking	For 6560 and Vanguard 320 devices, the Frame Relay and
		X.25 Port Record parameter Clock Source has two addition
		settings: EXTINT and EXTLP. These settings are required in
		synchronous ports where the Motorola MC68360
		communication controller is used (for connecting high speed
		ports back-to-back).
5.10	TBOP Video Support	To support the transmission of video conferencing applications,
		TBOP ports now have the Constant Bit Rate option (CBR). In
		a CBR application, TBOP does not signal that it is congested
		because the source of the traffic must always be transmitted at a
		constant rate. When the transmission queue is full, it is simply
		purged, so the video stream can continue.
5.10	PPP Features	 MLPPP BRI/PRI
		The 6520 (branch node) can run Multi-Link Point-to-Point
		protocol links over BRI or PRI interfaces. The
		CTP menu now offers BRI Configuration Channel (for
		BRI ports) and Virtual Port (for PRI ports).
		 Bridge Control Protocol
		Network Access Products can be configured to act as
		transparent bridges over PPP.
5.10	TPDU	The Transaction Protocol Data Unit (TPDU) is a connection-less,
		packet-based protocol designed for transaction-oriented
		applications. It provides an efficient means of concentrating a
		large number of access devices onto one or more host
		connections with a maximum of 512 connections per node.
		The TPDU option is available for all Vanguard and 65xx
		Network Access Products. TPDU consists of router software
		and several protocol adapters, including: BSC3270/DSP,
		SDLC/QLLC (includes PU2/LU0 support), X.25, TCP, UDP,
		FRA, and BSC2780.
5.10	Router Proxy	This feature provides hot backup LAN support to maintain
		network connectivity in the event of a LAN connection going
		down. The Router Proxy allows one router (the backup) to
		accept packets with the MAC address of another router when
		the network connection at the original router is severed.
		Whichever router is currently being used to pass data is called
		the Active Router. When a the network connection is
		established again, the active state is returned to the first router
		which continues operating as before the connection went down.
5.10	Integral Ethernet Port	With Release 5.1, the 6560 Ethernet Port 4 on the motherboard
		is now available. However, the port does not support Bridging or SLAC
5.10	Q.SIG	With Release 5.1 Voice Relay supports the Q.SIG variation of
		the Common Channel Signaling (CCS). This extends voice
		signalling beyond Channel Associated Signalling (CAS).
		Unlike CAS, where signalling is imbedded in each channel,
		Q.SIG allows signalling to be passed over the D-Channel.
5.10	Frame Relay Over ISDN	With Release 5.1, the Frame Relay DTE Interface (FRI) in
		6560 and 6520 is extended over ISDN. This release allows the
		Frame Relay DTE Interface to be configured as a Frame Relay
		virtual port for running over ISDN. It provides two types of
		connectivity over ISDN:
		 Semi-Permanent: The ISDN connection is established
		during power-up or port/station boot or port/station
		enable, if any of its station is active. A station is consid-ered
		active if it is enabled and has a PVC. The estab-lished
		ISDN connection is maintained (re-established in
		case of failures) as long as one of its stations is active.
		 Dial-On-Demand: The ISDN connection is established
		based on SVC request when there are no active stations.
		The ISDN connection is dropped when all the SVCs are
		cleared.
5.10	TBOP CCS	TBOP CCS provides support for variations of CCS (other than
		Q.SIG). Signalling information is transparently carried by
		Voice Relay using TBOP as the transport protocol.
5.10	RIP 2	Motorola’s implementation of RIP Version 2 is based on RFC
		1721. RIP Version 2 resolves some problems presented by RIP
		Version 1 such as no support for Variable Length Subnet Masks
		(VLSM), no support for non-contiguous subnets, no password
		authentication, and difficulty selecting the best route.
		RIP Version 2 shares the same basic functionality of RIP
		Version 1, it resolves some of the problems of the earlier
		version by providing the following enhancements:
		 Support for Variable Length subnet masks
		 Support for non-contiguous subnets
		 Password authentication
		 Next hop
		 IP address multicasting
5.10	Protocol Priority	This feature provides prioritization of various protocols within
		IP and IPX. IP prioritization is configurable and is based on
		protocol number, destination port number, and destination IP
		address and/or subnet. IPX prioritization is configurable and is
		based on packet type, destination socket number, destination
		network, and destination node. Prioritization is activated when
		packets are queued to the WAN adapter or Frame Relay bypass
		station.
		The Protocol Priority feature is supported on all platforms
		operating under Network Services. It supports both Single and
		Group LCONs, as well as parallel SVCs (Bandwidth on
		Demand).
5.10	SNTP	Network Access Products now support Simple Network Time
		Protocol (SNTP). This client/server utility enables a node to
		synchronize its time and date with other nodes or servers that
		are running SNTP or NTP (Network Time Protocol)
5.10	IPX Features:	 NetWare 4.1 Compliance
		Network Access Products now block Get General Server
		Requests and Get Nearest Server requests across the net-work.
		 IPX Fiserv
		This feature provides two additional parameters in the
		IPX Parameters record that allow the user to configure a
		node to override learned (RIP) routes with static ones
		and to enable and disable the advertisement of a static
		route.
		 IPX Default Route Advertisement
		This feature provides three additional parameters in the
		IPX Interfaces that enable and disable advertisement of a
		default route.
5.10	Burroughs Poll Select	 EIA Control status bar in statistics screen
		The statistic for Burroughs Poll Select ports delivers a
		status summary on EIA interface.
		 BSTD 3-digit
		This feature represents a new option for the parameter
		Transmissions number in the port record. Network
		Access Products can use the ModuloAuto numbering
		scheme in order to synchronize messages.
		 Fast select on TPAD
		When a BSTD port is used as an HPAD, it can now sup-port
		Fast Select. You can configure an HPAD for Fast
		Select in the parameter Port Options in the port record.
		In previous releases, the Fast Select was sent from Host
		to HPAD, then the TPAD would sent the information
		contained in the Fast Select as a Text Frame using a
		Select procedure.
		 DCD toggling with ASYNC
		This feature is an option under the new parameter EIA
		Control in the port record. (EIA Control is only available
		when ASYNC operation is selected in the parameter
		Data Form.)
		 Half-duplex with ASYNC
		Network Access Products can use half duplex transmis-sion
		with both synchronous and asynchronous modes of
		operation.
		 Extended Group Poll Response
		The TPAD Group Poll procedure allows a device to
		respond with a text message using an address which is
		not configured in a BSTD station record. This capability
		is unique to TPAD Group Poll.
5.10	X.25 Enhancements	 With Release 5.1, the X.25 port checks incoming and
		outgoing call setup and clear packets to ensure that:
		the facility codes in the packet are valid. If not, the
		call is cleared with cause code 0, diagnostic code 65
		(Facility/Registration code not allowed).
		- the facility code is allowed in this packet type. If not,
		the call is cleared with cause code 0, diagnostic code
		65 (Facility/Registration code not allowed).
		 With Release 5.1, the X.25 port checks that the value of
		the Q bit does not change within an M bit sequence of
		packets (that is, a sequence of packets with the M bit set
		to 1 in all except the last packet). If a changing Q bit is
		encountered, the X.25 port sends a Reset packet both
		ways (on the link and to the adjacent channel on the
		node) with cause code 0 (DTE originated), diagnostic
		code 83 (Inconsistent Q bit setting).
		 X.25 Call Redirection
		X.25 calls can be redirected if the host is busy or dis-abled.
		This feature includes the ability to designate sev-eral
		alternate routes. In Vanguard products, you can
		configure 6 redirection tables. You can configure 12 redi-rection
		tables for the 6520/ 6560.
		 CUGIA
		When parameter Call Subscription Facility is set to
		CUGIA, a CUG port can accept incoming calls from
		other user groups.
		 Billing Enhancements
		You can now disable the generation of Billing Records
		on PAD and X.25 ports at the Called End. This feature is
		CSK controlled.
		 Call Rerouting
		You can now suppress Call Rerouting and clear incom-ing
		calls back to the originator. This feature is CSK con-trolled.
		The Suppression of Call Rerouting CSK only
		affects ports that are configured as Access Ports.
5.10	BSC3270 Enhancements	New parameters have been added to the BSC3270 protocol.
		These include:
		 Poll List Timer: Specifies the polling time interval, in
		increments of 50 milliseconds, that will occur between
		polled devices. The value must be greater than the value
		entered for the Poll Frequency Period
		 Slow Poll: Specifies that the BSC3270 TPAD send the
		Poll to the device service timer when the SVC is not
		established. This is effective only when the CESS port
		option is configured and requires a CSK to operate.
5.10	Reduced Autospeed Intercharacter Delay	When using a dialup modem, in conjunction with a POS
		terminal or PC, to send an Autobaud Sequence, problems may
		occur if the inter-character delay applied to that sequence is less
		than 180 msec. To overcome this, you must enter a CSK
		(5ERWXW2F76XHLTTUUZC3) to reduce the inter-character
		processing time to 100 msec.
		Reducing the autospeed inter-character delay also has the effect
		of increasing the minimum supported autospeed to 300 bps.
5.10	French POS	Support is now available for French POS card swipe equipment
		through the Terminal Control parameter on the PAD port.
5.10	Queued Packets for ARP	Whenever an ARP Response message is received:
		 The station that sees its IP address in the ARP packet
		responds with its MAC address.
		 The ARP Cache table is updated with the learned infor-mation
		so that the ARP procedure does not have to be
		repeated if another packet arrives for the same IP
		address.
		 The IP packet is sent to the destination address.
		If the ARP Response message is not received, a second ARP
		request is launched to the network with a broadcast address. If
		an ARP Response is not received by for the second time, the
		queued packet is dropped.
5.10	ASCII Support for BSC2780	Use of the ASCII code set is now supported in Terminal/Printer
		devices on a BSC2780 port
5.10	ISDN DIM	The SDB card now supports the ISDN DIM. Used with X.25,
		Frame Relay, and Frame Relay Access, these DIMs allow the
		6520 and 6560 to send and receive I.430 data. The SDB can
		support two ISDN DIMs, one for each port.
5.10	BRI ISDN Enhancements	 Caller Line ID (CLID)
		This feature identifies the phone number and/or name to
		be displayed on a call display unit. This feature is only
		available in North America and is supported only when
		the Call Display feature is subscribed to by the both par-ties.
		 Quick SPID
		This feature allows remote configuration of POTS
		equipped devices by using a touch tone telephone hand-set
		(DTMF tones) to enter the SPID.
		 Call Holding
		If a port sends an X.25 Call Request to a virtual port on
		BRI line, the call is held in the Switch Service table until
		the BRI line is setup. Once the BRI line is setup, the call
		is forwarded to the Called Address.
		 Dynamic Routing
		Dynamic Routing allows a pool of B-channels to be
		routed dynamically based on the Called X.25 addresses.
		That is, a call with any X.25 address can be routed to any
		B-channel, provided the channel is free. A channel is
		dedicated to a X.25 Called Address as long as the call is
		in place. Once the call is disconnected, the B-channel
		goes back to pool.
		 Dynamic DTE/DCE Assignment
		With this feature, nodes on the network are automati-cally
		assigned DTE and DCE status. When the ISDN
		connection is established originating node is assigned as
		the status of DTE and the receiving node is assigned the
		status of DCE.
5.10	Local Termination (LT) Autolearn	Local Termination (LT) Autolearn reduces the amount of
		configuration you need to do by letting you spoof remote
		sessions without configuring a MAC address and a Service
		Access Point (SAP) for each station running a session to the
		host Front End Processor (FEP).
5.10	SLAC Autolearn	With Release 5.1 SDLC to LLC Conversion stations
		automatically learn the MAC addresses of remote physical
		units (PUs). This means all local and remote PUs attached to a
		65xx/Vanguard over Ethernet or Token Ring LAN are
		automatically recognized by the node without any manual
		configuration on your part. This means you can install or
		remove PUs from your network without any configuration at
		the central site 65xx/Vanguard.
5.10	IP Multicast	Motorola’s implementation of IP Multicasting provides
		efficient multipoint delivery of IP datagrams to hosts across
		local and remote Frame Relay and X.25 networks using less
		bandwidth and network resources than unicasting or
		broadcasting.
		IP Multicasting uses a multicast address and a spanning tree
		approach to connect the source host with destination hosts in a
		multicast group. This means you can use a multicast address to
		send an IP datagram to any number of hosts across different
		networks as long as they are part of the multicast group.
		Membership in an IP Multicast group is dynamic, meaning a
		host can join or leave a multicast group at any time. And, hosts
		can be members of more than one group. Membership in a
		multicast group determines whether or not a host receives a
		copy of datagrams sent to a multicast address. However, a host
		can send datagrams to a multicast group without being a
		member.
5.10	Frame Relay Enhancements	Several new feature enhancements have been added to Release
		5.1. These include:
		 Maximum Link Utilization, which identifies when the
		largest amount of outbound Frame Relay traffic is han-dled.
		This enhancement allows you to configure the
		period of time that is sampled.
		 Total Time In Congestion, which identifies the total time
		(in seconds) that a Frame Relay station is in the con-gested
		mode of operation.
5.10	Switched Services Table Enhancements	More Switched Service Entries
		The Maximum Number of Switched Service Entries
		parameters is added to the Node Record. The maximum
		number has been increased from 200 to 1024.
		 Redundant Backup
		Each Switched Service table has 4 monitor ports. Moni-tor
		port usage can now be prioritized as primary or sec-ondary.
		(You must enter the Redundant Backup CSK to
		enable this feature.) In addition, you can configure the
		backup port to activate only when all monitor ports have
		failed.
		 Multi Dial Sequence
		Each Backup port now has 4 dial sequences. The port
		retries the dial sequence list as many time as the maxi-mum
		retry specifies.
5.10	Unnumbered IP	Traditionally, Motorola’s implementation of an IP router
		subsystem provides each network interface of the router with
		its own IP address. This can result in inefficient use of scarce IP
		address space since it forces allocation of an IP network prefix
		to every point-to-point link. The Unnumbered IP feature solves
		this problem by allowing unnumbered point-to-point serial
		links where there is no third node to be individually addressed.
		An unnumbered point-to-point link does not have any network
		prefix associated with it. Consequently, network interfaces
		connected to an unnumbered point-to-point link do not have IP
		addresses. Any interface with 0.0.0.0 as its IP address is an
		unnumbered interface.
5.10	UDP/IP Broadcast Forwarding	The UDP (User Datagram Protocol) Broadcast Forwarding
		feature supports forwarding of local and network broadcasts
		from local to remote LANs. The local and network broadcasts
		from selected UDP ports are forwarded to selected destinations.
		You can configure the local LAN UDP port number and IP
		address of destination LANs. This feature selects the broadcast
		by UDP port number and forwards it to selected destinations.
		Not all broadcasts are forwarded to all the destinations or
		selected destinations. UDP Broadcast Forwarding works for all
		local broadcasts (FF.FF.FF.FF).
		IP Broadcast Forwarding supports forwarding of local and
		network broadcast packets from one local LAN to remote
		LANs. You can configure both the local LAN IP broadcast
		addresses and IP address of destination LANs. It selects the
		broadcast by local/net IP address and forwards it to the
		destinations selected. It can forward all local broadcasts.
		The feature allows you to use either UDP Broadcast
		Forwarding or IP Broadcast Forwarding, both simultaneously,
		or with no forwarding. You can enable/disable this feature
		through the IP Router Configuration Record
5.10	GTech Enhancements	 Call Staggering
		The Autocall Retry Timer can now be configured to start
		an autosequence after boot. With this functionality, GSC
		ports can be configured to stagger auto sequences to
		avoid flooding the network after a boot sequence.
		 Wake-up Timer
		HPAD ports can be configured to “go to sleep”. When an
		HPAD has finished an autocall sequence, it will shut
		down until the Wake-Up Timer parameter tells it to start
		another autocall sequence.
5.1M	APAD Enhancement	An APAD Port Parameter Terminal Control is set to
		FRCB, two new parameters are available— Active Line
		Message and Delay for Active Line Message. When set,
		these parameters allow a message to be sent when a line
		is active.
5.1M	BSC3270 Enhancements	Two BSC3270 enhancements are available with this
		release:
		• Copying configurations from one device to many
		others
		• Enabling/Disabling BSC3270 devices without
		performing a Port Boot.
5.1M	CCS Bypass	With the new feature, CCS Bypass, a 6560/6520 can
		receive an ISDN/QSIG voice call on one T1/E1 port and
		switch it out the other T1/E1 port. While Voice Relay
		allows PBX calls to be sent to a remote PBX via a Frame
		Relay network, CCS Bypass expands this capability so
		voice calls be sent across an ISDN public network.
5.1M	LAN IPX Filtering	Release 5.1M IPX includes enhancements to the IPX
		Static Routing feature. The enhancements determine how
		static routing information is maintained when
		dynamically learned routes are available. The Static
		Routing features include:
		• IPX Static Route Relearning - When a link associated
		with a static route fails, it is replaced with a
		dynamically learned route advertised from a
		neighboring router. When the failed link comes back
		up, it is not replaced in the routing table, even though
		it is a lower cost path. Static Route Relearning refers
		to options for maintaining the static route.
		• IPX Static Route Override Control - This feature
		allows you to configure whether static routes remain
		in the routing table or are overwritten by learned
		(better cost) IPX RIP routes.
		• IPX Static Route Advertisement Control - When
		broadcasting information from the routing table, this
		feature lets you configure whether static routes are
		included in advertisements. If you disable the
		parameter, information about any of the static route
		entries in the routing table are not advertised during
		routing information broadcasts.
5.1M	Maximum Number of DSDs	The upper range for the parameter Max number of DSDs
		has been increased from 16 to 100.
5.1M	Node and X.25 Port Statistics Enhancements	Release 5.1M introduces enhancements to Node and
		X.25 port statistics. The new statistics enable
		timestamping for maximum, peak usage for such
		categories as:
		• Inbound and outbound call statistics
		• Buffer statistics
		• Port utilization
		• CPU utilization
		Timestamping these statistics allows for detailed analysis
		of peak usage periods and performance.
5.1M	Periodic SVC Billing	The periodic SVC feature generates, at regular intervals,
		Billing records for X.25 SVC calls which occasionally
		go on for long periods of time.
5.1M	Pulse Dialing	Voice Relay now supports Pulse Dialing. This is a
		method of address signaling where the circuit between
		the telephone handset and the Central Office/PBX is
		rapidly opened (break) and closed (make) by a pulsing
		contact. Pulse Dial support with Voice Relay conforms
		to standard EIA/TIA-464-A for both 10 and 20 pulses
		per second.
5.1M	RFC 1155 Compliance	The 5.1M Motorola MIB is compliant with the RFC 1155 standard
5.1M	Q.SIG Enhancements	These are the three enhancements to Voice Relay’s
		Q.SIG function:
		• Connectionless Messages -With Release 5.1M, Voice
		Relay supports end-to-end transmission of
		Connectionless Messages. This supplementary QSIG
		Service allows user information to be transported
		across a QSIG network without requiring call setup.
		• Information Element Filtering - All QSIG/Q931
		messages consist of a series of Information Elements
		(IE). Some of these IEs can cause problems for some
		ISDN equipment (PBXs). The new Information
		Element Filtering feature lets you configure the
		software to filter out undesirable non- standard IEs.
		• Cause Value Replacement - In general when a call is
		cleared a Clear Cause code is included in the Call
		Clearing message (Disconnect or Release). In some
		case, it may be useful to modify the Clear Cause
		code to allow the recipient of the Call Clearing
		message to take appropriate action. This new feature
		allows you to substitute one Clear Cause value for
		another.
5.1M	Time Slot Bypass	Timeslot Bypass allows a timeslot on a 6560/6520 T1/E1
		port to be switched transparently to another timeslot on
		the other T1/E1 port. This feature is useful in situations
		where two T1/E1 leased lines are used at a single site to
		transmit voice and data calls
5.1M	Vanguard 6400	RFC 1155 Compliance
		This release supports a new product line, the Vanguard
		6400 Series. These devices provide wide area network
		access for offices that depend on legacy protocols (SNA/
		SDLC and BSC) with LAN traffic over X.25, Frame
		Relay, Point-to-Point, MultiPoint and ISDN circuits.
		There are two members of the Vanguard 6400 Series:
		• Vanguard 6430: supports two Async/Sync ports, two
		Async ports and an Ethernet port, as well as up to
		three optional Vanguard daughtercards.
		• Vanguard 6450: provides the functionality of the
		Vanguard 6430 plus it can support two Option Cards.
5.1M	Voice Over IP	Voice over IP (VoIP) provide termination and
		encapsulation of voice and fax traffic for transport over
		an IP network. Motorola’s proprietary protocol, Serial
		Protocol over TCP (SoTCP), provides the encapsulation
		mechanism for carrying voice traffic over an IP network.
5.1M	Voice Broadcast Module	This feature allows voice calls from one or two sources
		to be sent to as many as 62 destinations. Though the
		Voice Broadcast software resides in a 6560 or 6520, the
		call destinations and sources can be from other nodes
		and devices.
5.20	Serial Protocol Over TCP (SoTCP)	SoTCP is a proprietary protocol that allows a Vanguard device to encapsulate and
		transport serial protocols over the IP network. This feature allows terminal and host
		devices operating serial protocols to connect and communicate with each other over
		an IP network. This eliminates the need for Wide Area Network (WAN) connections.
		The Transmission Control Protocol (TCP) provides a reliable packet delivery
		mechanism over which data from serial access devices can be routed in an IP
		network.
		For more information, refer to the SoTCP Manual (Part Number T0008-44).
		Note:
		Parameters and applications for serial data traffic only are discussed in this
		manual. For information on SoTCP supporting Voice over IP (VoIP)
		applications, refer to the Multimedia Feature Protocol documentation
		(Part Number T0104).
5.20	SNA Dial on Demand	SNA Dial on Demand allows a Vanguard to initiate a call or establish a connection
		only when data transfer occurs. Typically, a link or connection stays up indefinitely
		even during periods of idle data traffic. Dial on Demand significantly reduces
		bandwidth usage by clearing the link when there is no data to be sent. This action,
		however, remains transparent to the end devices and the Vanguard continues to poll
		the end device.
		You can apply SNA Dial on Demand to all combinations of LLC2, SDLC, and
		XDLC currently supported by SDLC to LLC conversion and SDLC and XDLC
		TPAD/HPAD functionality.
		For more information, refer to the SDLC Manual (Part Number T0008-9).
5.20	Network Address Translation (NAT)	As a router function, Network Address Translation (NAT) allows for translation of
		one IP address to another IP address. Using NAT, devices in a private network that
		use an internal or private IP addressing scheme can access, and be accessed by, other
		hosts using the global IP addressing scheme.
		NAT offers a flexible solution for IP address depletion problems. NAT assumes that
		only a small percentage of devices within a private network access the Internet or
		external network at any point in time. To provide access to the external network,
		NAT maps a device’s internal address to an external address.
		For more information, refer to the IP Routing Manual (Part Number T0008-17).
		Note
		For Release 5.2, Network Address Port Translation (NAPT) is referred to as IP
		Masquerade (MASQ) in the CTP menu.
5.20	Classless Interdomain Routing (CIDR)	For Release 5.2, CIDR is supported for OSPF and static routes only. Classless
		eliminates the concept of class-based networks by using a prefix or bit mask to
		represent the network portion of the IP address. CIDR defines the network portion of
		the IP addresses using the first 8 to 32 bits. This allows deployment of arbitrarily
		sized networks rather than fixed sized networks determined by the 8, 16, and 24 bit
		network numbers. In addition, CIDR allows aggregation of address space and thus
		reduces routing table size.
		Motorola's implementation of CIDR supports RFC 1517 to RFC 1520 and is
		supported for OSPF and static routing. CIDR is not supported for RIP1 and RIP2.
		These enhancements have been made for CIDR support:
		• configuration of classless static routes for static routing
		• configuration of OSPF external range table to allow aggregation of external
		routes into OSPF domains
		• configuration of OSPF area range to allow aggregation on a classless
		boundary
		• configuration of classless mask on the IP interface to allow aggregation of
		directly connected multiple networks on that interface
		For more information, refer to the IP Routing Manual (T0008-17) and the OSPF
		Manual (T0008-27).
5.20	Unlocking Utility	The Unlocking Utility stores all the information about the possible combinations of
		the product, release, and licensed Vanguard Applications Ware for your software
		Package. The utility consists of Windows self- extracting, executable files. Licensed
		Vanguard Applications Ware allows you to build Packages. When you purchase a
		Vanguard Applications Ware License, you are provided with a serial number that
		corresponds to your release number, product, and Vanguard Applications Ware. You
		are then required to provide those serial numbers for the software licenses to create
		and use Packages.
		For more information, refer to the Vanguide Application Set Installation Guide.
5.20	Software Licenses	To create a custom Applications Ware Package in Release 5.2, you must purchase the
		required software licenses. You can purchase software licenses from Motorola for
		the particular software release and Motorola product combination. When acquiring a
		software license, you receive a software license serial number. You must enter any
		purchased numbers into the list of available serial numbers by choosing the
		“Settings” menu and selecting the “Serial Numbers” tab in the “Options” dialog.
		For more information, refer to the Vanguard Software Builder Manual.
5.20	Router Discovery	Router Discovery is a feature that enables hosts to discover the existence of
		neighboring routers. A router periodically advertises its router address. Associated
		with each router address advertisement is a priority that is used by hosts to select the
		best router address. This address is then used as the host's gateway address.
		For more information, see the IP Routing Guide.
		Command Line Interface (CLI)
		Command Line Interface (CLI) is a scripting language used to create, delete, and
		modify Configuration Memory (CMEM) records. CLI allows you to update the
		configuration of a device through the use of programmable scripts. CLI is a user-selectable
		feature of all of the Vanguard Applications Ware and is accessible via the
		CTP menu. It is device independent, and therefore has a fixed menu element across
		all platforms so other systems, such as PCs, can use its programming capabilities.
		CLI is ideal for updating a small number of parameters on a regular basis to a large
		number of devices.
		For more information, please see the Command Line Interface Manual.
5.20	Periodic SVC Billing	Periodic SVC Billing lets you generate billing records, at configurable intervals, for
		the X.25 SVCs in the node. This feature lets you generate billing records for long
		duration SVCs without waiting for the SVC to clear.
		For more information, please see the Vanguard X.25 Configuration Basics Manual.
5.20	Call User Data Enhancement	Call User Data (CUD) routing can now be configured on an X.25 port to update the
		called address of an incoming Call packet, before it is routed to its final destination.
		For more information, please see the Vanguard X.25 Configuration basics Manual
5.20	G.723.1 Compression	Prior to this release, Voice Relay employed variations of CVSELP compression
		algorithms. With Release 5.2 (and later releases), Voice Relay can use G.723.1
		compression algorithms.
		For information about G.723.1 Compression (as well as CVSELP compression) refer
		to the Voice Relay Option Guide (T0023).
5.20	Dual Token Ring	Beginning with Release 5.2, the Vanguard 6560 and 6520 can simultaneously
		support two Token Ring cards.
		For more information, refer to the 6520 Installation Manual (T0003) or the 6560
		Installation Manual (T0004). For information about configuring a Token Ring Port,
		refer to the Token Ring Basics Guide (part No. T0111).
5.20	Echo Canceller Disable	With Release 5.2, you can disable the Echo Canceller function. This is done via the
		parameter Voice Switching Features in the Voice Switch Table.
		For information, refer to the Voice Relay Option Guide (T0023).
5.20	Dual FXS Card	The new Dual FXS Vanguard Voice Relay daughtercard is now available starting
		with Release 5.2. This card provides two RJ45 connectors for FXS Ports and is
		available on these Vanguard platforms:
		• Vanguard 30X
		• Vanguard 320
		• Vanguard 6400
		Note
		The Dual FXS card is not supported on the Vanguard 100.
		For more information about this card, refer to the Vanguard Daughtercard
		Installation Guide (T0020).
5.20	GSC Protocol enhancement	The GSC Call Rate parameter allows you to specify the number of X.25 calls that
		can be generated per second from all the GSC HPADs present in the node.
		A zero value indicates the feature is disabled and the HPAD generates one call per
		second when the node is activated.
		Any other value indicates the feature is enabled and upon a node or table boot, the
		HPAD generates as many calls as you configure.
		For more information, refer to the X.42 Option Guide (T0008-36).
5.20	ISDN Call Waiting	The Vanguard 312 and 650 Series 650D now support Call Waiting for voice calls
		using ISDN (for NI1 ISDN switches only). When this feature is enabled, a caller
		hears a Call Waiting tone when a second call arrives. At that point, you can either:
		• Hang up on the current call allowing the second call through
		• Place the current call on hold by pressing the flash button or momentarily
		pressing the hook switch, so that the second call is connected. (You can
		alternate between the two calls by pressing the flash button or pressing the
		switch hook.)
		The Call Waiting tone is sent twice. If you do not respond to the tone, the second call
		is cleared.
		For more information, refer to the Vanguard ISDN Option Guide (T0008-29).
5.20	RFC1213 enhancements	This RFC describes the Internet standard MIB II for use with network management
		protocols in TCP/IP-based internets. ONS Release 5.2 and greater offers the
		following enhancements to this RFC:
		• The return value of the ifDescr variable includes the physical port number in the
		string. Therefore, for example, if you configure physical port 26 as FRI, and its
		associated ifIndex is 7, the corresponding entry in the ifDescr table looks as
		follows:
		ifDescr.7 = “Port_26, FRI /Motorola /Motorola 6520 Router Node.”
		The return value for the ifDescr object takes the format:
		ifDescr.ifIndex : Port_<Number>,<Port Type>/Motorola/Product Name
		ifDescr.ifIndex : LCON_<Number>, /Motorola/Product Name
		• This enhancement is only available for the following interface types: X.25,
		Frame Relay, Ethernet, MX25, Token Ring, BRI/PRI, T1/E1, SDLC, XDLC,
		and LCONs.
		• The return value of the ifOperStatus object conforms to its definition in RFC
		1213. Therefore, the possible return values are only up(1), down(2), or test(3).
		The correspondence between the ifOperStatus object in RFC 1213 and the state
		of the physical interface as shown on the CTP is described in the table following
		this RFC list.
		For more information, refer to the SNMP Option Guide (T0008-15).
5.20	RFC1315 Enhancements	This RFC describes support of MIB-II Frame Relay Management Information
		objects to accommodate Frame Relay DTE.
		Note
		There is one known limitation, where no set operation is supported on six read-write
		objects in the following range: 1.3.6.1.2.1.10.32.1.1.3 to 1.3.6.1.2.1.10.32.1.1.8.
		For more information, refer to the SNMP Option Guide (T0008-15).
5.20	Protocol Priority Enhancements	Vanguard products offer a Protocol Priority feature through which the different
		traffic streams over a WAN link/connection can be classified and serviced depending
		the priority level and percentage of bandwidth assignment. The Protocol Priority
		feature allows you to:
		• share the bandwidth among different classes of traffic (bandwidth allocation)
		or
		• prioritize one traffic class over another or
		• prioritize high priority classes and share the bandwidth among the low
		priority traffic classes in the absence of high priority traffic classes.
		For more information, refer to the Protocol Priority Option Guide (T0008-41).
5.20	Dynamic Configuration (Node Boot Removal)	The Motorola router has a large number of configurable parameters. Previously, a
		change to any of these parameters required a node boot to take effect. This
		requirement for a node boot disrupts all user traffic through the node and may bring a
		portion of the network down.
		The enhancements for Node boot elimination enable you to make configuration
		changes effective without booting the node. The enhanced functionality provides
		you with boot menus offering mechanisms to:
		• Boot Protocol Parameters
		• Boot Protocol Tables
		• Control interfaces by enabling or disabling them
		Note
		For a description of the limitations to this feature, refer to “Changes That
		Require Node Boot” section on page 14 of the SRN
		For more information, refer to the IP Routing Option Guide (T0008-15), the IPX
		Option Guide (T0008-14), and the OSPF Option Guide (T0008-27).
5.2M	Centralized Voice Switching	Centralized Voice Switching (CVS) lets you configure a single Voice Switch Table in
		a central node that can be accessed by all the voice nodes in a network. This
		eliminates the problem of having to configure all the Voice Switch Tables in all the
		voice nodes when setting up a network. In addition, with this feature, each time a
		node is added or removed, you only have to make changes to the Voice Switch Table
		in the central node. CVS is transparent to the user and calls are made as they were in
		earlier releases.
		For information, refer to the Voice Relay Option Guide (T0023).
5.2M	Vanguard T1/E1 Daughtercards	New Fractional T1 and E1 daughtercards are available on the Vanguard 6430 and
		Vanguard 6450. The FT1/FE1 daughtercards allow a Vanguard 6430/6450 to transfer
		data over a T1 or E1 network and support full and fractional T1 or E1 speeds.
		• The FE1 daughtercard provides line rates 2.048 Mbps and data rates of n x 64
		kbps (where n is 1 to 31) per channel.
		• The FT1 daughtercard provides line rates 1.544 Mbps and data rates of n x 56
		kbps (where n is 1 to 24) per channel.
		For a description of the daughtercard, refer to the Vanguard 6400 Installation Guide
		(T0031) and the Vanguard Daughtercard Installation Manual (T0020). For
		information about configuring parameters for the FT1/FE1 Daughtercard, refer to the
		appropriate sections in the Frame Relay Interface/Access Manual (T0008-04) or the
		X.25 Configuration Basics Guide (T0107).
5.2M	Frame Relay Concentrator	With the new Frame Relay Concentrator, Frame Relay Access/Interfaces can connect
		to each other on an intra-node basis using Bypass connections. A node can then act
		as a Frame Relay Concentrator. This feature provides Frame Relay service providers
		with a cost effective way to offer low volume, but wide spread, customer access to
		Frame Relay services.
		This feature is useful for carriers and other service providers that are interested in
		offering inexpensive concentration in locations that do not justify a full featured
		Frame Relay switch.
		For more information, refer to the Frame Relay Interface/Access Manual
		(T0008-04).
		Note
		All the features of the Frame Relay Concentrator application described in the
		Frame Relay Interface/Access Manual are implemented in Release 5.2M with
		the following exceptions:
		• You must use a Node Boot when adding and deleting Frame Relay Interface
		and Frame Relay Access stations.
		• Though Frame Relay Interface and Frame Relay Access Port Station Count
		Update commands appear under the Port Station Channel Control CTP menu,
		these commands do not function.
5.30	Year 2000 Compliance	The Vanguard Release 5.3 Applications Ware is Year 2000 compliant. For more
		information, visit Motorola’s Year 2000 website:
		http://year2000.ing.motorola.com/yr2000/
5.30	SAKs	SAKs are no longer used with Release 5.2 and later products. Pre-Release 5.2
		products, however, still use their SAKs. If you purchased SAKs for an earlier
		release, they can still be used with this release.
5.30	VoIP H.323 Support	Release 5.3 introduces H.323 implementation in Vanguard products to allow Voice
		over IP (VoIP) calls to and from Microsoft NetMeeting. NetMeeting allows Voice
		teleconferencing over IP networks.
		Refer to the Voice over IP Manual (Part Number T0104-02) for more information.
5.30	Dynamic Coder Selection	Beginning with Release 5.3, Vanguard 6520/6560 nodes receiving voice calls will be
		able to dynamically select the required codec (CVSELP, G.723.1 or G.729A) to
		decompress an incoming voice call. G.723.1 and G.729A require CSKs. Voice packet
		bundling will operate in supported applications.
		Refer to the Voice Relay Manual (Part Number T0104-03) for more information.
5.30	ACL/G.729A - 8K Coder Support	Starting with Release 5.3, Vanguard products will support the G.729A standard,
		compression algorithm (codec) for Voice applications. G.729A voice packet
		bundling will operate in supported applications. A CSK is required to enable this
		feature.
		Refer to the Voice Relay Manual (Part Number T0104-03) for more information.
5.30	Data Encryption and Data Encryption/Compression SIMM	Release 5.3 introduces data encryption on the Vanguard products. The Data
		Encryption feature is a combination of discrete hardware, in the form of a dedicated
		Encryption SIMM (which coincidently includes Motorola’s hardware data
		compression capability), and the Security Applications Ware License Upgrade.
		With release 5.3 of Vanguard Applications Ware, only the Vanguard 305, Vanguard
		6400 Series, Vanguard 6520, and Vanguard 6560 products will support data
		encryption.
		Refer to the Data Encryption Manual (Part Number T0103-09) for configuration
		information and refer to the Vanguard Daughtercard Installation Manual (Part
		Number T0020) for information on installing SIMMs.
5.30	AS/400 Communication Server	The AS/400 5494 Communications Server feature makes a Vanguard function as a
		5494 LEN communications server for AS/400 host systems with attached 5394-type
		(including 5394-, 5294- and compatible-type) remote controllers.
		For more information refer to the AS/400 Communication Server Manual (Part
		Number T0101-07).
5.30	CLI Enhancements	The Command Line Interface feature has been enhanced to include two new
		command categories: Transfer and Statistics. The Transfer category allows you to
		'get' or 'set' files from/to locations using TFTP, while the Statistics will allow you to
		script statistics output for specific parameters.
		In addition, CLI users can use the ‘get’ or TFTP ‘getscript’ command to get the user
		password.
		For more information refer to the CLI Manual (Part Number T0106-09).
5.30	Protocol Priority Enhancements	For Release 5.3, the following enhancement have been made to the Protocol Priority
		feature:
		• Increased number of Protocol Priority Profiles. Up to three Protocol Priority
		Profiles can now be configured.
		• Support for prioritization of Voice over IP (VoIP) traffic to receive FAST
		PATH service
		• End-to-end Quality of Service (QoS) indication and control
		Refer to the Protocol Priority Manual (Part Number T0100-09) for more
		information.
5.30	T1/E1 Daughtercard Support on the Vanguard 320	The Vanguard 320 now supports connectivity to fractional T1 and E1 using the T1/
		E1 daughtercard. For more information on installing the T1/E1 daughtercard refer
		Vanguard Daughtercard Manual (Part Number T0020).
5.30	ISDN BRI Data Feature Card	The ISDN Data Feature Card is an optional Vanguard 6560/6520 card that provides
		two connectors for ISDN Basic Rate Interface (S).Increases port density.
		Refer to the Vanguard 6560/6520 Installation Manual (Part Number T0126) for
		more information on installation and refer to the Vanguard ISDN Manual (Part
		Number T0103-06) for information on configuration.
5.30	Vanguard V.34 Daughtercard	The Vanguard V.34 Daughtercard is supported on the Vanguard 305, Vanguard 320,
		and Vanguard 6400 Series. The Vanguard V.34 Daughtercard acts as a synchronous
		V.34 modem to communicate with other V.34 modems using bit-oriented or
		character oriented protocols over the analog PSTN.
		Refer to the Vanguard Daughtercard Installation Manual (Part Number T0020) for
		installation information and 3460 Fast’R User Guide (Part number T0022-01) for
		configuration information.
5.30	V.54 Loopback SNMP Support	With release 5.3, V.54 loopback test can be performed using an SNMP Manager.
		Refer to the SNMP Manual for more information (Part Number T0106-04).
5.30	Inverse ARP Enhancement	Effective Release 5.3, the Vanguard router can now generate InvARP requests. This
		is only supported for LCONs using RFC 1294 encapsulation, when connected
		• to Frame Relay/PPP network by SVC or PVC or
		• to X.25 network by SVC
		With this enhancement, the next hop address can be determined.
5.30	Group LCON Backup Enhancement	The Vanguard router supports fast back up of Group LCONs if one LCON in the
		group loses it connection. This feature is enabled for release 5.3.
5.30	Multiple Default and Static Routes	You can now configure more than one entry in your Static IP route table with the
		same destination address but different next hop address and metric. In addition, you
		can also configure more than one route to the Default Gateway and more than one
		entry for default route in the Default Subnet Gateway table.
		Refer to the IP Routing Manual (Part Number T0100-03) for more information.
5.30	OSPF Static Route Control	For Release 5.3, the Vanguard now offers control of the OSPF Static Route. Enabling
		a new parameter, Static Route Override, allows calculated OSPF routes to override
		static routes in the Routing Table.When this parameter is disabled, static routes will
		override OSPF routes in the Routing Table.
		Refer to the OSPF Manual (Part Number T0100-04) for more information.
5.30	OSPF Internal IP Address Advertisement Control	This 5.3 feature enhancement allows a user to control the advertisements of internal
		addresses (via LSAs) into an OSPF domain. Users can choose whether the internal
		address of the router is advertised or not. If the router’s internal address is
		advertised, the router can be accessed remotely over any reachable interface. If the
		node can be accessed by other means, i.e.. an X.25 address, the internal IP address
		does not need to be advertised.
		Refer to the OSPF Manual (Part Number T0100-04) for more information.
5.30	IP Route Table Search and Ordered Display	For release 5.3, the following enhancements have been made to IP Routing Table
		Statistics display:
		• IP Routing Table Statistics - for release 5.3, the user can now search the IP
		Routing Table by entering an IP search prefix or destination IP address.
		• Sorted IP Routing Table Statistics - the user has the option of displaying the IP
		Routing Table in ascending or descending order based on destination IP
		address.
		• Dump IP Routing Table Statistics - displays Sorted Routing Table without any
		page breaks
		Refer to the IP Routing Manual (Part Number T0100-03) for more information.
5.30	2780 Fast	The BSC 2780/3780 option now supports a maximum port speed of 80 Kilobytes/
		second. The primary benefit of this enhancement is increased data throughput and a
		corresponding improvement in application performance.
		For more information refer to the BSC 2780/3780 Protocol Manual (Part Number
		T0101-02).
5.30	AC100 PAD	Release 5.3 introduces the AC100 PAD protocol support for the Vanguard products.
		AC100 is a synchronous protocol that supports a Terminal Packet Assembler/
		Disassembler (AC100 TPAD) used to interact with a Nortel Host Packet Assembler/
		Diassambler (HPAD).
		An AC100 TPAD port passes messages from terminals to a host computer over an
		X.25 network. It polls, receives messages from the terminals, and establishes a data
		path to the Nortel host ports. The Nortel host ports (HPADs) interpret data coming
		from an AC100 TPAD with a protocol called AC200.
		Use this CSK to enable and control the AC100 TPAD protocol:
		C9PFGPKAZQDAETK73YD5
		For more information refer to the AC100 Protocol Manual (Part Number T0102-14).
5.30	PAD Server Signals	Effective with Release 5.3 of Vanguard Applications Ware, you can use a protocol
		analyzer to verify PAD signals against any PAD specification.
5.30	T3POS over TCP	The Vanguard supports T3POS virtual ports over TCP application. T3POS is a
		transaction processing protocol for POS (Point of Service) devices. T3POS PADs
		allow terminal equipment to communicate with ISPs (Information Service Providers)
		via virtual ports supported by either an X.25-based PPSN (Public Packet Switched
		Network) or a TCP application (when a virtual port is assigned a port number
		between 100 and 254.)
		A distinct T3POS Entity instance, with a different TCP port number, must exist for
		each TCP session. This allows Vanguard devices running the T3POS protocol to
		listen, on it’s TCP port, and serve the requests from specific T3POS terminals.
		For more information refer to the T3POS Protocol Manual (Part Number T0102-08).
5.30	Fatal Error Report (FER) Enhancements	On the Vanguard 6520, 6560, 320, 310 Series, 305, 6400 Series platforms, Fatal
		Error Reports have been enhanced to:
		• Display module table contents
		• Display stacks for all tasks
		• Display memory region around Program Counter
		• Display Vector Table
		This feature is available only when customers operate in the DEBUG mode. When a
		Fatal Error Report is generated, a buffer utilization histogram is created to illustrate
		buffer usage during the previous 30 minutes.
		Note
		Unless you are a thoroughly experienced network professional, operating in the
		DEBUG Mode is not recommended.
5.30	Buffer Tracking Enhancement	With release 5.3, it is now possible for those users who traditionally run Vanguard
		Applications Ware exclusively in the DEBUG mode, to print all buffers that are “out
		of pool”. In addition, various configuration parameters are now available to allow
		you to manipulate what the printouts will include. Contact your Motorola Service
		Representative for additional information.
		Note
		Unless you are a thoroughly experienced network professional, operating in the
		DEBUG Mode is not recommended.
5.30	LCP Echo Request Suppression Enhancement	It is now possible to disable transmission of PPP echo request for all PPP ports in a
		node. Enter the following CSK to disable PPP echo request:
		824MKLAKE333ZL8P7554
5.3M	Frame Relay SVC	With Release 5.3M, Frame Relay Interface ports support FRF.4 implementation of
		Frame Relay Switched Virtual Circuits (SVC). Both PVC and SVC stations circuits
		may co-exist on the same FRI port and all FRI ports and stations function as they did
		in previous releases of Applications Ware.
5.3M	IP Rip Timer Enhancements	Release 5.3M introduces configurable enhancements for RIP. With this release you
		can specify:
		• Route Expire Time: the time that a route will expire
		• Route Flush Time: the time that a route will be deleted from the routing table
		In addition, you can now modify the Periodic Broadcasts Interval for both On-Demand
		and regular WAN links.
5.3M	SNMP Trap Throttling	Release 5.3M incorporates the ability to limit the number of times a trap can be
		generated during a specified period of time. This will reduce the number of traps
		displayed, or printed, for a node and simplify the investigation of potential problems.
		Up to 256 different traps can be throttled by the SNMP Agent on any Vanguard node.
		Refer to the Vanguard Applications Ware Alarms and Reports Manual (T0005
		Revision J), supporting Release 5.3M, for instructions on the use of this feature.
		Additional information can be found in the Vanguard Basic Configuration Manual
5.3M	Memory Management Enhancements	On the Vanguard 6520, 6560, 320, 310 Series, 305 and 6400 Series platforms,
		memory management has been enhanced to provide:
		• Information on memory allocation, via two new Node Statistics screens.
		These two new screens of the Node Statistics provides information on how
		much memory has been allocated during node initialization
		• Automatically adjustable flow control pool or buffer thresholds. These buffer
		thresholds are now configurable as threshold percentages under the DEBUG -
		Heap/Pool Size Control menu.
		Note - When upgrading to 5.3M, any configured, customized buffer threshold
		values will be reset to the default buffer threshold value. Reconfigure the
		threshold values according to your requirements. (DRFaa09419)
		• Ability to control the DBUFFER/PACKET pool by configuring IORB/
		DBUFFER Ratio parameter under the DEBUG-Heap/Pool Size Control
		menu.
5.3M	Vanguard 6400 CMEM Expansion	With Release 5.3M, the Vanguard 6400 Series products support conversion of
		compressed CMEMs from 32K to 64K and from 128K to 384K.
5.3M	Vanguard 6425 Product Release	This new member of the Vanguard 6400 Series has recently been introduced. This
		multi-service router new product provides WAN access for legacy protocols (e.g.,
		SNA/SDLC and BSC) with LAN traffic over IP, Frame Relay, X.25, PPP,
		Multipoint, and ISDN. The 6425 supports three standard Vanguard daughtercards.
5.3M	Vanguard 6520/6560 Error Code and ISDN Option Card Switch Setting	The Vanguard 6520 and 6560 Installation Manual has been updated with a complete
	Update	list of the two-digit front panel display error codes and their descriptions.
		(DRFaa08160)
		In addition, the list of ISDN option card switch settings has been revised.
5.40	Quality of Service	Quality of Service (QoS) support for IP, IPX, Transparent
		Bridging, AppleTalk, and Voice over IP. The QoS feature classifies traffic into flows
		or aggregates of flows that are configured for specific Per Hop Behaviors (PHBs).
		Each PHB can be assigned to ensure that specific percentages of bandwidth are
		applied to different traffic types.
5.40	Dynamic Configuration	This feature allows you to make certain types of configuration changes without the
		need to reboot the node.
		Previously, you had to boot the node to implement changes to certain parameters
		(those identified with an asterisk on the CTP Configure menu). With Dynamic
		Configuration, you can implement changes to those parameters by simply booting
		that port. This way the configuration can be changed without disrupting data that is
		passing through the other ports.
		For Release 5.4, Dynamic Configuration support is available for these protocols:
		• X.25
		• Frame Relay
		• APAD/ATPAD
		• XDLC
		•SDLC
5.40	Policy Based Routing	Policy Based Routing (PBR) provides a flexible mechanism of routing packets based
		on policies defined by the network administrator in contrast to simple destination
		based routing. With this feature, the network administrator can have more control
		over the traffic passing through their network by defining the policy for certain
		traffic flows.
5.40	IP Access Control and RIP Route Control Enhancements	Ttwo enhancements to existing IP functionality, IP Access
		Control and RIP Route Control. These features can now be configured on a
		interface-by-interface basis. IP Access Control and RIP Route Control can be
		configured on any inbound or outbound interface or LCON.
5.40	RTP/UDP/IP Header Compression	This feature provides compression of the RTP/UDP/IP or UDP/IP header of real-time
		video or voice packets. Header compression reduces excess bandwidth usage.
		This feature supports:
		• Header compression as defined by RFC 2508. The Vanguard can interoperate
		with other routers using RFC 2508 header compression.
		• Header compression by traffic type: RTP/UDP/IP, UDP/IP or both.
		• Header compression on link-by-link basis.
		• Header compression of RTP/UPD/IP or UDP/IP packets carried over PPP or
		Frame Relay WAN links.
5.40	Internal IP Address Assignment Enhancement	The internal IP address can be set the same address of an interface
		IP address or to an address from an attached subnet.
5.40	Classless Interdomain Routing (CIDR) and RIP Version 2 Support	Vanguard routers support aggregation of routes learned from RIP
		Version 2 broadcasts.
5.40	OSPF Point-to-Multipoint and Unnumbered Interface Support	Point-to-Multipoint Non-Broadcast OSPF networks support more than two attached
		routers but has no broadcast capabilities. For this network type, a non-broadcast
		network is treated as a collection of point-to-point links.
		Release 5.4 also introduces unnumbered IP interface support. Typically each IP
		interface of a route will have its own IP address. To conserve IP addresses,
		unnumbered IP interfaces addresses can now be used for OSPF interfaces.
		Unnumbered IP interfaces are supported for point-to-point and point-to-multipoint
		OSPF networks.
5.40	H.323 - Gatekeeper Registration, Admission and Status (RAS) Protocol	Vanguard gateways can interface with H.323 gatekeepers and
	Support	request admission into an H.323 gatekeeper’s zone using the Registration,
		Admission and Status (RAS) protocol.
5.40	H.323 - DTMF Digits Support Over the H.245 Control Channel	Vanguard gateway’s H.323 access port supports the transport of
		DTMF digits over the H.245 control channel.
		Note:
		In order to support DTMF digits over the H.245 control channel, all Vanguard
		nodes must be operating Vanguard Applications Ware Release 5.4 or higher.
		DTMF digit support over the H.245 control channel is not backwards compatible
		with Release 5.3M or earlier. Vanguard nodes operating Release 5.3M or earlier
		do not support DTMF digits over the H.245 control channel. Instead, a
		proprietary method is used to transport inband DTMF digits between Vanguards.
5.40	H.323 - G.729 Compression Support	Vanguard gateway now supports G.729.A encoding and compression.
	Voice Port Fax Statistics Enhancements	The Voice Port Statistics have been enhanced to display additional statistics when the
		voice port is enable to support FAX and is connected to a FAX machine.
5.40	Enhanced Voice Call Report Display	Voice call reports are generated on a call-by-call basis and provides three lines of
		information on the status of a call. With Release 5.4, the voice call report has been
		enhanced to display the first 30 digits of the dialled digits. This includes called
		party’s number and inband digits.
5.40	Frame Relay DTE Interface over ISDN	Vanguard 305, 320, 6400 Series, and 6560/6520 products now support a Frame
		Relay DTE interface over an ISDN link. This interface can be configured as either a
		virtual or physical Frame Relay Port and provides:
		• Semi-Permanent ISDN connectivity. Frame Relay virtual ports can operate in
		a semi-permanent mode of operation when there is at least one PVC
		connection on the port or BYPASS or Annex-G station.
		• Dial-On-Demand (DoD) ISDN connectivity. Frame Relay virtual ports only
		function in the Dial-on-Demand (DoD) mode when Annex-G stations are
		configured with SVCs. BYPASS stations can be configured but they should
		not be active.
5.40	Increased Number of TCP Sessions for SoTCP	Vanguard 305, 320, 6400 Series, and 6560/6520 now supports up to 500 TCP
		sessions for SoTCP. The maximum number of TCP sessions that are actually
		supported will depend on the memory available in the Vanguard node.
		In addition, although the maximum number of TCP sessions can be set to 40
		(for Vanguard 100, 200, and 650) or 500 (for all other Vanguards), the value will be
		scaled down during node initialization to ensure that SoTCP does not consume more
		than 25% of the available memory in the Vanguard node.
5.40	SoTCP as a Backup Link	This option allows for the configuration of an SoTCP session as back up link. The
		node must have a SoTCP session configured to use this feature. The SoTCP session
		can also transmit other traffic.
5.40	ATPAD Enhancements	Two enhancements have been added to Vanguards support for ATPAD:
		M-bit handling - This option allows the ATPAD to split packets that exceed the
		configured network packet size and transmit so it appears as one data to the receiving
		end. M-bit handling sets first and intermediate packets' M-bit to 1, so it appears as
		one data stream when on X.25.
		Data Carrier Detect (DCD) - This option adds the DCD setting for the ATPAD,
		essentially allowing the ATPAD to connect like a modem.
5.40	SNMP Set Support	This option allows the user to change the values of certain MIB object variables
		through a Set request to the host agent. The SNMP manager uses Set to change Read/
		Write MIB object variables.
5.40	X.25 Extended Window Size	This option increases the window sizes at Frame and Packet levels in X.25. This
		option increases the bandwidth available for high speed WAN links. These
		parameters’ range are increased:
		• K Frame Window
		• W Packet Window
		• Data Queue Upper Threshold
		• Data Queue Lower Threshold
5.40	Extended Calling Line ID Table	With this release, you can now configure up to 512 Calling Party ID Table entries.
		Previously, the maximum number of entries was fixed at 255.
5.40	MBC Protocol	Vanguard Applications Ware supports the MBC Protocol. This is
		used in banking networks where multiple branch offices are connected to the central
		site office through a Frame Relay network (with ISDN backup). The MBC Protocol
		is supported on Vanguard 6560s.
5.40	Command Line Interface Commands	Seven commands have been added to the Command Line Interface feature. These
		new commands are:
		• Bootnodecold
		• Bootnodewarm
		• Bootalltables
		• Bootport [port number]
		• Boot [record]
		• Defaultnode
		• Getscript
5.40	ISDN Port Select	You can have ISDN calls routed to specific ports. This is a security
		feature used to implement ISDN closed user groups for special applications.
5.40P01	Vanguard 6435/6455	5.4 Point Release 1 introduces the Vanguard 6435 and 6455 to the Vanguard 6400
		Series product family. The Vanguard 6435 and 6455 are flexible, RISC processor-based
		multiservice routers that provide increased performance and enhanced
		capability through high-speed interfaces for bandwidth-intensive LAN/WAN
		applications. An enhancement to the Vanguard 6400 Series, they offer cost-effective,
		simultaneous support for voice, fax, video, and mixed protocol data traffic over IP,
		Frame Relay, X.25, ISDN, or NX64 T1/E1 services. The Vanguard 6435 comes in a
		compact standalone version, where the Vanguard 6455 can be easily mounted in a 19
		inch rack. They are SNMP-manageable and come with a variety of LAN, SNA, and
		IP networking features.
		The Vanguard 6435/6455 provides these hardware features:
		• A processor speed of 50MHz for fast performance.
		• Synchronous DRAM SIMM which must be installed for the node to function.
		- The Vanguard 6435/6455 requires a minimum of 16MB DRAM SIMM.
		- You can upgrade by replacing the 16MB DRAM SIMM with a 32MB
		DRAM SIMM.
		Vanguard 6435/6455 DRAM SIMMs are not compatible with the Vanguard
		6425/6430/6450.
		• A 1MB Synchronous Static RAM on the Vanguard 6435/6455 main CPU card
		improves product performance.
		• Static RAM buffers on the main CPU card’s daughtercard interfaces to support
		high speed applications.
		• Real Time Clock (RTC) battery life of two years. You do not have to remove
		the RTC battery to prevent battery drain during short term storage.
		• New generation, Enhanced Daughtercard (EDC) interface.
		The 5.4 Point Release 1 Applications Ware software include performance
		enhancements. Release 5.4 CMEM files are compatible with 5.4 Point Release 1
		CMEMs.
		For more information about the Vanguard 6435 and Vanguard 6455, refer to
		Vanguard 6435/6455 Installation Manual (Part Number T0166).
5.40P01	10/100BaseT Daughtercard	The Vanguard 6435 and Vanguard 6455 supports the new Enhanced Vanguard
		Daughtercards. The 10/100BaseT Enhanced Vanguard Daughtercard is available for
		this release. It conforms to the Fast Ethernet specification (IEEE 802.3u) known as
		100BaseT. This LAN standard has raised the Ethernet speed limit from 10 Megabits
		to 100 Megabits per second. Furthermore, the card has an auto-sensing feature that
		allows it to determine if the connection is 10BaseT or 100BaseT and adjust its speed
		as required.
		For more information about the 10/100BaseT Enhanced Vanguard Daughtercard,
		refer to Vanguard 6435/6455 Installation Manual (Part Number T0166).
5.40P01	Accelerated IP Forwarding	Accelerated IP Forwarding uses Aggregate Cache to improve IP forwarding
		performance over normal path forwarding. It reduces the amount of processing that
		IP packets undergo during transmit in the node. Accelerated IP Forwarding is
		supported on the Vanguard 6435/6455 only.
		For more information, refer to the IP Routing Manual (Part Number T0100-03).
5.40P02	High Density Voice Server Feature Card,	The Voice Server Feature Card, whether factory installed in a Vanguard 6560 or
		purchased separately, requires 5.4 Point Release 2 software. For more information,
		refer to the “Using 5.4 Point Release 2 Software” section on page 3.
5.40P02	Software Changes: Diagnostics and Statistics	After the Voice Server Feature Card is installed in the Vanguard 6560, you can obtain
		diagnostic and statistics information from these statistics menus:
		• Node Statistic
		• Voice Port Statistic
		• Nested Inventory Statistic
		For more information on configuration and statistics, refer to the Vanguard Voice
		Manual (Part Number T0104-05).
5.40P02	G.723.1 and G.729 Compression	For the Voice Server Feature Card, CSKs are not required for G.723.1 or G.729
		compression. The Voice Server Feature Card does not support Motorola proprietary
		CVSELP compression. For more information refer to the Vanguard Voice Manual
		(Part Number T0104-05).
5.40P02	5.4 Point Release 2C software	The 5.4 Point Release 2C software can be downloaded from this URL:
		http://www.mot.com/networking/products/vanguard_6560/software.html
		The 54P02C.EXE executable file is available from this web site and is used with
		Vanguard Software Builder to create a new image. Creating a Custom Image
		You can create a custom image using Motorola’s Vanguide Software Builder. To do
		so, use the Software Builder software with:
		• Vanguide Release 5.4 CD-ROM (which contains Release 5.4 software and
		Vanguide Software Builder)
		• Release 5.4 Point Release 2C executable file (54P02C.EXE )
		• The software license
		Once you have these items, create the custom image by following the instructions in
		the Vanguide Software Builder Manual (Part Number T0030) which is available on
		the CD-ROM.
		After you create the image, load it into the Vanguard 6560 using the instructions in
		the Vanguard Software Loader Manual (Part Number T0057).
5.40P05	VoIP Convergence Card (6455 Digital Voice Card)	Vanguard Applications Ware 5.4 Point Release 5 provides additional features for the
		Vanguard 6455 using BRI Daughtercards and the VoIP Convergence Card. With
		Point Release 5, the BRI Data Daughtercard and BRI Voice Daughtercard can
		operate in the same Vanguard 6455. Refer to the SRN to view the tabel which shows
		the cards and the functions that Point Release 5 adds to the Vanguard 6455:
5.40P05	Required software: 5.4 Point Release 5	Your Vanguard 6455 must have 5.4 Point Release 1A and 5.4 Point Release 5
		software to support the VoIP Convergence Card functions:
		• If you ordered a new Vanguard 6455 with a VoIP Convergence Card installed
		at the factory, the node is loaded with 5.4 Point Release 5 software along with
		a selected image.
		• If you ordered a VoIP Convergence Card to be installed into an existing
		Vanguard 6455 and need to obtain the 5.4 Point Release 5 software, refer to
		the Obtaining the Software and the Creating a Custom Image sections.
5.40P05	5.4 Point Release 5	The 5.4 Point Release 5 software can be downloaded from this URL:
		http://www.mot.com/networking/products/vanguard_6435/software.html
		• The 54P05A.EXE executable file is available from this web site. Use it with
		Vanguard Software Builder to create a new image.
5.40P06	Asynchronous Transfer Mode (ATM)	The ATM Enhanced Daughtercard, whether factory installed in a Vanguard 6455 or
		purchased separately, requires 5.4 Point Release 6 software. For more information,
		refer to the “Using 5.4 Point Release 6 Software” section on page 2.
5.40P06	5.4 Point Release 6	Your Vanguard 6435/6455 must have Release 5.4.P01 and 5.4.P06 software to
		support the ATM Enhanced Daughtercard.
		• If you ordered a new Vanguard 6435/6455 with an ATM Enhanced
		Daughtercard installed at the factory, the node is loaded with 5.4 Point
		Release 6 software along with a selected image.
		• If you ordered an ATM Enhanced Daughtercard to be installed into an
		existing Vanguard 6435/6455 and need to obtain the 5.4 Point Release 6
		software, refer to the“Obtaining the Software” section on page 2 and the
		“Creating a Custom Image” section on page 2.
5.40P06	5.4 Point Release 6	The 5.4 Point Release 6 software can be downloaded from this URL:
		http://www.mot.com/networking/products/vanguard_6435/software.html
		The 54P06A.EXE executable file is available from this web site and is used with
		Vanguard Software Builder to create a new image.
5.40P06	Upgrading Your Bootprom Image	The ATM Enhanced Daughtercard (EDC) requires that Bootprom version 5.0.5 be
		installed on your Vanguard 6435/6455. When loading a 5.4.P06 software image, the
		Bootprom image is automatically updated to version 5.0.5. You are prompted for this
		change through the Vanguide Software Loader and have the option of loading the
		new Bootprom or not. ATM features will not work properly if you do not install the
		Bootprom upgrade. For this upgrade to be successful, you must have a pre-existing
		Applications Ware image installed on your Vanguard device.
		If, for any reason, the upgrade fails or prematurely terminates, you must reinstall a
		previous software image and then repeat the upgrade process.
5.40P06	End-To-End F5 OAM	The 5.4.P06 Applications Ware Release only supports End-To-End F5 OAM
		Flows; Segmented F5 OAM Flows are not supported.
5.40P08A	Vanguard 7300 Series Routers	This Release Notice introduces Vanguard 7300 Series Routers, Models 7310 and
		7330 platforms, and provides information about Release 5.4 Point Release 8A of the
		operating software for the Vanguard 7300.

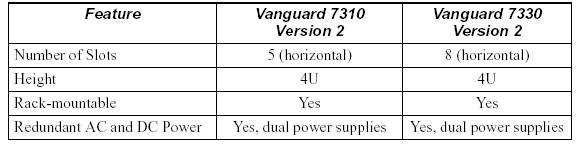

5.40P08A	Hardware Features	CompactPCI architecture designed for carrier class requirements.
		• Fully functional MCP750 single-slot processor card.
		• Industry-standard peripheral and I/O options.
		• AC or DC power.
		• Standard 19-inch rack-mountable.
		• Fully interchangeable cards with hot-swap insertion and removal capabilities.
		• 7310 is a 5-slot, 3U single power supply chassis.
		• 7330 is an 8-slot, 8U high, with automatic built-in power supply redundancy.
		• 128Mb memory for configuration files and active operating software.
		• 32Mb flash memory.
5.40P08A	73XX Interfaces	LAN interfaces: Up to 4 ports of auto-sense 10/100BaseT Ethernet.
		• High speed Serial ports: 8/card, user configurable for V.35, RS232, X.21,
		EIA530, automatic DTE/DCE selection via cable, up to 8 Mbps
5.40P08A	Documentation on the Web	For detailed descriptions of Release 5.4 P08A features, visit the Motorola web site:
		http://www.mot.com/networking/products
		Instructions for obtaining on-line and hardcopy versions of the documents that
		contain detailed explanations of these features appear in the section, “How to Obtain
		User Documentation.”
5.40P08A	7300 IP	IP, RIP1/RIP2, OSPF
		• Classless Inter-domain Routing (CIDR)
		• Network Address Translation (NAT)
		• IP Multicast/Broadcast
		• Real-Time Transport Protocol (RTP) Header Compression
		• OnNet Proxy (Router Standby Protocol)
		• Multiple IP Addresses per Physical Interface
5.40P08A	7300 QoS Optimizes Data/Voice Video	• Packet Classification: source address, destination address,
		source port, destination port, applications protocol
		• Policy Based Routing
		• IP Precedence bit
		• Fast Path for Voice
		• Differentiated Services
		• Fairness Algorithm with Traffic Shaping
		• Time of Week
		• Frame Relay SVC
		• IP TOS (Type of Service)
5.40P08A	7300 IBM Networking	• SNA/SDLC for serial connections
		• Conversion SDLC to LLC2
		• AS/400 5494 Communications Server
		• BSC to LLC2 Conversion - Not in initial release - to be added as a Point release
5.40P08A	7300 Added Services	• PPP, Multi-link PPP (synchronous only)
		• TBOP
		•SoTCP
		• Link Backup (via alternate serial ports and/or ISDN PRI)

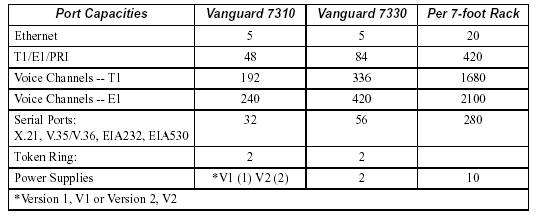

5.40P08A	7300 Physical Port Limits	Physical Port counts
		are set by software, not the actual number of physical ports.
		Max. no. of physical ports 88
		Max. no. of Ethernet ports per Node (performance limited at 100MB speed per port) 4
		Max. no. of Token Ring ports per Node 0
		Total LAN ports (Ethernet) per node (not bridge port support count) 4
		Max. no. devices supported per Ethernet segment (Relevant to Bridge operation) 255
		Max. no. devices per Token Ring segment (Relevant to Bridge operation) 0
		Max. no. of T3/ATM 0
		Max. no. of T3 Unchannelized 0
		Max. no. of T3 Channelized 0
		Max. no. of T3/HSSI 0
		Max. no. of high speed (V.35) serial links per node 56
		Max. number of PRI ports (data only) per node 84 (Rel.B)
		Max. number of T1/E1/PRI voice only ports per node 14(Rel. B)
		Max. number of Voice circuits per voice server card 60(Rel. B)
		Max. total number voice calls per node (Number shown is E1 max; T1 max is lower) 420(Rel.B)
5.40P08A	7300 Frame Relay Enhancements	Max. number of DLCIs per FR Port 254
		Max. number of PVCs per FR Annex-G station 128
		Max. number of SVCs per FR Annex-G station 512
		Max. number of voice SVC per Annex-G station 15
		Max. number of DLCIs per node 4,800
5.40P08A	7300 Session Enhancements	Max. number of LCON 2,000
		Max. number of Virtual Ports (FR, X25, PPP, Voice) 2,000
		Max. number of multi-link PPP profiles 255
		Max. number of UDP (soTCP) sessions terminating in the node 2,000
		Max. number of TCP (soTCP) sessions terminating in the node 1,500
		Max. number of simultaneous calls per node 2,000
5.40P08A	7300 Network Services	Max. number of Network Services Tables Entries 1,500
		Max. number of Data Compression Channels Node 0
		Max. number of Encryption Channels per Node 0
		Max. number of concurrent IPSEC sessions 0
		Max. number of PVCs table entries 2,000
		Max. number of mnemonic table entries 2,000
		Max. number of Switch Service table entries 1,024
		Max. number of X25 routing table entries 2,000
5.40P08A	7300 LAN(IP)-specific Enhancements	Routing table size 15000
		Routing Cache 512
		Accelerated/ Aggregated Route cache 512
		No. of LCONs 2,000
		No. of Interfaces 1,000
		Access Control List table size 255
		Policy based routing table size 255
		Static ARP table 255
		Number of static routes 1,024
		RIP route control table 255
		NAT table size 64
		NAT Max. sessions 512
		Max. number of VPN tunnels 0
		IP Multicast Tables size 255
		CIDR: RIP aggregate table 255
		CIDR: Multihome table size 255
5.40P08A	7300 Voice-specific Enhancements	Max. number of voice switching table entries 1,024
5.40P08A	7300 SNA/IBM Support	Max. number of stations per LAN interface (SLAC) - Note: 2 LAN interfaces allowed
		per node, but 1,000 stations max per node.
5.40P0LA	H.323 Version 2 Enhancements	Vanguard Voice has been enhanced to include H.323 Version 2, which provides a
		new range of features and enables the use of gatekeepers for call control. These are
		the new enhancements available in this release:
5.40P0LA	Clear Token Support -	This is an important feature when using the NetSpeak
		Gatekeeper. This feature allows source based routing and custom dial plans to
		be implemented across domains and provide a 50% increase in routing
		performance when routing calls sourced out of domain. In the absence of the
		NetSpeak Clear Token, the destination side gatekeeper must reroute the call
		upon receipt of a setup.
5.40P0LA	Can_Map_Alias	This feature allows an infrastructure NetSpeak gatekeeper
		the capability to manipulate the dialing plan. The effected scenarios are:
		EVERY call model where a Vanguard Gateway is the source of a call and
		resides on an infrastructure (direct-mode) Gatekeeper and the gatekeeper is
		configured to do digit conversion. The Vanguard gateways support the feature
		on both source and destination gateways. The destination gateways would
		only work with E.164.
5.40P0LA	Dynamic Coder	This feature allows negotiation of a particular code during
		a voice call. The two ends negotiate to a common coder and other defined
		attributes. For configuration information, refer to the 7300 Installation
		Manual (Part Number T0185).
5.40P0LA	Null_Term_Caps	This features allows the redirection of the audio path on
		an existing call without clearing the call. For example, if during an existing
		call, the gatekeeper wants to play a message such as “You have one minute
		remaining,” the Null_Term_Caps procedure is used to re-direct the audio path
		to the media server, and then the media server can play the message. When the
		message is complete, the gatekeeper can re-establish the connection between
		the two parties.
5.40P0LA	PRI Voice Support	Vanguard Voice Software is enhanced to include the support of ISDN Primary Rate
		Interfaces. This includes support for Q.Sig Basic Services (per ECMA 143 standard),
		Supplementary Services (per ECMA 165 standard) and segmentation of messages
		longer than 255 bytes (per ECMA 143 Appendix ZA).
5.40P0LA	ATM Enhancements	The Vanguard 7300 Series ATM functionality has been enhanced to include a new range
		of features that allow full ATM capabilities. These are the new enhancements available
		in this release:
		• Supports both T3 (up to 44.736 Mbps) and E3 interfaces (up to 34.368 Mbps).
		• Variable Bit Rate (VBR) - real time and non-real time
		• Up to 4000 Virtual Channel Connections (VCC)
		• FRF.8 Transparent Mode
		• Annex G Termination
		• SNMP for ATM
5.40P0LA	Accelerated IP Forwarding	Accelerated IP Forwarding uses Aggregate Cache to improve IP forwarding
		performance over normal path forwarding. This feature reduces the amount of
		processing that IP packets undergo during transmit in the node.
		Accelerated IP Forwarding is supported only on the Vanguard 7300 Series and
		6435/6455 products. For more information, refer to the IP Routing Manual
5.40P0LA	Policy-Based Routing and Network Address Translation Performance	These performance improvements are implemented to improve the Quality of Service
	Improvements & NAT Table Size Increase	with Vanguard nodes. This feature is available in the IP+ License for all Vanguard
		products. For more information, refer to the IP Routing Manual
5.40P0LA	Increase Number of Frame Relay DLCI’s	Data Link Connection Identifiers (DLCI’s) are unique identifiers for stations on a
		Frame Relay port. Stations are used to setup unique connections through the network
		from one end-point to another. Typically, in central site applications, it is necessary
		to terminate many virtual connections from the remote sites, requiring additional
		stations. Frame Relay ports now support up to 820 configured stations. It is possible
		to establish 820 PVCs across a single FRI port. All existing characteristics of the FRI
		port and individual stations are preserved. To support the increased number of
		DLCI’s, Station Record Multi-Copy has been added. It allows creation of a specified
		number of stations with one command. An existing station is used as a template. All
		stations share the same configuration parameters of the template station except the
		station and DLCI number. These numbers are created automatically, incrementing
		the station and DLCI number of the previously created station. All station numbers
		and DLCIs belong to the continuous range determined by the user.
5.40P0LA	Differentiated Services (Diff Serv) Enhancements	This feature builds on the Type of Service (TOS) to provide more granularity of QoS
		so that Service Level Agreements can be offered. Diff Serv uses all eight bits of the
		TOS Byte (now renamed the DS byte) to provide 64 traffic classes (versus eight
		previous traffic classes) for IP traffic. The Diff Serv specification defines certain
		hop-by-hop behaviors and how these are to be accomplished using different
		prioritization, queuing, and bandwidth management schemes. These Vanguard
		enhancements support:
		• Diff Serv behaviors
		• Class Queuing
		•Marking
		• Code points
		•Flow mapping
		• Expedite (highest priority queue)
		• Assured Per-Hop Behaviors (PHB’s)
		• Committed Access Rate (CAR)
		Token Bucket, and various traffic-conditioning algorithms to support queues
		and provide rate-throttling mechanisms named Dropper, Shaper and Three
		Color Markers
		• SNMP for IP QoS
		Weighted Random Early Detection (WRED) which takes advantage of TCP’s built-in
		congestion control mechanism is also supported. Network users who want to take
		full advantage of the business benefits of convergence have suitable QoS
		prioritization in the Intelligent edge, regarding network core size, speed and
		capability.
		This feature is available in the IP+ License for all Vanguard products. For more
		information, refer to the Quality of Service Manual (Part Number T0100-10).
5.40P0LA	FRA Functionality on 7300	This feature allows the 7300 Series to interface with another Frame Relay access
		device and serve as the Frame Relay switch. The primary purpose of the FRA port is
		to allow a device with a Frame Relay DTE interface to connect with a Vanguard
		node. The Vanguard node appears as a Frame Relay DCE similair to a Frame relay
		switch. The 7300 does not use FRA ports, instead it now allows FRI By-pass stations
		to provide all functionality provided by an FRA port and station. FRI Bypass stations
		now support SVC and PVC connections between other By-pass stations and WAN
		adaptors (LCON).
5.40P0LA	FRI Port Configuration Parameters	The following parameter has been added to the existing FRI port configuration.
		Port Subaddress
		Range: 0 to 3 decimal digits.
		Default: Port number
		Description: Specifies the subaddress for the FRI port. The subaddress is part of
		the X.25 SVC addressing scheme.
5.40P0LA	Station Configuration Parameters	The following new entries have been added to existing a FRI Bypass station
		configuration parameters:
		FRA Support
		Range: ENABLED, DISABLED
		Default: DISABLED
		Description: Provides support for FRA functionality. When it is ENABLED,
		X.25 SVC connection will be established in accordance with
		configured parameters.
5.40P0LA	Autocall Mnemonic	Range: Up to 8 alphanumeric characters
		Default: (blank)
		Description: A string associated to an address in the Mnemonic table. This
		address is used to identify the target end point when a switched
		virtual circuit is created. When left blank, the station can only
		answer calls. Perform a Station boot to implement changes to this
		parameter. This parameter only appears if the parameter FRA
		Support is set to Enabled
5.40P0LA	Traffic Priority	Range: LOW, MED, HIGH, EXPEDITE
		Default: HIGH
		Description: Specifies the traffic priority of this FRA Bypass station. Perform a
		Station boot to implement changes to this parameter.
		This parameter only appears if the parameter FRA Support is set
		to Enabled.
5.40P0LA	Billing Records	Range: OFF, ON
		Default: OFF
		Description: Enables or Disables the storing and printing of billing records for
		the FRA Bypass station. Perform a Station boot to implement
		changes to this parameter. This parameter only appears if the
		parameter FRA Support is set to Enabled.
5.40P0LA	Autocall Timeout	Range: 5 to 255
		Default: 5
		Description: Specifies the waiting period (in seconds) before issuing another
		request, after an unsuccessful autocall attempt. Perform a Station
		boot to implement changes to this parameter. This parameter only
		appears if the parameter FRA Support is set to Enabled and
		Autocall Mnemonic is not Blank.
5.40P0LA	Maximum Number of Autocall Attempts	Range: 0-255
		Default: 4
		Description: Specifies how many times the FRA Bypass station attempts to
		establish an autocall connection before giving up. To continuously
		make call attempts, set to zero (0). Perform a Station boot to
		implement changes to this parameter. This parameter only appears
		if the parameter FRA Support is set to Enabled and Autocall
		Mnemonic is not Blank.
5.40P0LA	Remote Connection ID	Range: 1 to 254
		Default: 1
		Description: This parameter specifies the station number of the remote FRI port
		or the LCON number of the remote node to be called. Perform a
		Station boot to implement changes to this parameter. This
		parameter only appears if the parameter FRA Support is set to
		Enabled and Autocall Mnemonic is not Blank.
5.40P0LA	FRF.12	The 7300 now supports FRF.12 the Frame Relay Fragmentation Implementation
		Agreement of December 1997. This agreement was developed to allow long data
		frames to be fragmented into smaller pieces and interleaved with real-time frames. In
		this way, real-time voice and non-real-time data can be carried together on lower
		speed links without causing excessive delay to the real-time traffic.
5.40P0LA	Frame Relay to ATM Service Interworking	This features allows the 7300 Series to connect to a Frame Relay FRI station across
		an intermediate network. This type of networking is called Service Interworking and
		its function is to ensure that the different connection types are transparent to both the
		ATM and Frame Relay end-users. With Service Interworking, a single Frame Relay
		DLCI is mapped directly to a single ATM VCC, both are PVC.
5.40P0LA	Software Data Compression (Soft DC)	The Vanguard 7300 Series supports data compression capability without the
		purchase or installation of the DC DSP or DCC SIMM. Data compression
		functionality is built into the operating software, eliminating the need for additional
		hardware. Data compression between these and other platform nodes is completely
		compatible. The Vanguard 7300 Series version of the Frame Data Compressor is
		known as Soft DC. The 7300 Series supports a maximum of 500 Channels.
5.50	TBOP Idle Flags Extended	In release 5.5 you have the ability to add one to 15 idle-flag pads between TBOP data
		frames. This feature is available in the IP+ License for all Vanguard products. For
		more information, refer to the Transparent Bit-Oriented Protocols Manual
		(Part Number T0102-04).
5.50	SNA SNMP MIB	SNA MIB support is available with Release 5.5 for IBM LLC2 SDLC Conversion.
		This feature is available in the SNA+ Applications Ware License on Vanguard 65xx
		products. For more information, refer to the SNMP/MIB Manual (Part Number
		T0106-04).
5.50	LLC2/SDLC Node Boot	In Release 5.5 it is no longer necessary to reboot a Vanguard node when
		configuration changes are made to the LLC2/SDLC conversion.
		This feature is available in the SNA+ Applications Ware License for all Vanguard
		products. For more information, refer to the SDLC Manual (Part Number T0101-05).
5.50	X.25 Call Redirection for SNA LLC Stations	Call redirection for SNA LLC stations allows the call originator to redirect the call if
		a particular LLC station at the remote is not operational (link down, device down,
		etc.). For AnnexG over Frame Relay implementations, this feature increases network
		availability and resilience.
		This feature is available in the SNA+ Applications Ware License for all Vanguard
		products. For more information, refer to the SDLC Manual (Part Number T0101-05).
5.50	Ease-of-Configuration Features (previously known as Dynamic	Release 5.5 introduces many new Ease-of-Configuration features that eliminate the
	Configuration)	requirements of rebooting after a new configuration is completed. These new
		features include:
		• Dynamic Boot for BSC2780
		• Node Boot Removal from SLAC
		• Dynamic Boot for TCOP
		• Dynamic Boot for TBOP
		Note
		This feature was introduced with Point Release 5.4.P04.
		Detailed instructions for using Ease of Configuration are in the Vanguard
		Applications Ware Basic Protocols Manual (Part Number T0106), Vanguard
		Applications Ware Serial Feature Manual (Part Number T0102) and Vanguard
		Applications Ware SNA Feature Protocols Manual (Part Number T0101).
5.50	Modem Call Security (V.25bis)	If enabled, this feature allows the 6430 device to ignore incoming calls on the X.25
		port from a Dial Back-Up Modem. The 6430 previously only checked the ISDN
		ports.
		This feature is available in the IP+ License for all Vanguard products. For more
		information, refer to the BSC 2780/3780 Manual (Part Number T0101-02).
5.50	Policy-Based Routing and Network Address Translation Performance	These performance improvements are implemented to improve the Quality of
	Improvements & NAT Table Size Increase	Service with Vanguard nodes.
		This feature is available in the IP+ License for all Vanguard products. For more
		information, refer to the IP Routing Manual (Part Number T0100-03).
5.50	SoTCP Port Number range for RTP Header Compression	This feature provides network users with all of the convergence and VoIP benefits
		that Vanguard offers. The port number range reduction that supports RTP header
		compression matches the capabilities of other manufacturers’ products.
		You can use intelligent Vanguard Integrated Access Devices (IADs) to provide
		packet voice (H.323 VoIP, VoFR) or VoSoTCP, as well multi-service data
		integration.
		This feature is available in the Voice Upgrade License for all Vanguard Products. For
		more information, see the Serial Protocol over TCP Manual
		(Part Number T0100-06).
5.50	SoTCP Performance Improvements	SoTCP throughput performance improved by approximately 30% in Release 5.5. In
		addition to the following changes, INL-like support is added to prevent call loops:
		• GooiTech: This feature lets you configure the remote TCP port number along
		with the remote IP address in the SoTCP map table. GooiTech gives you the
		option of using various TCP ports for different X.25 called addresses.
		• No Loop-Back Option (INL facility): This feature prevents a SoTCP call from
		looping back to the originating node. When this option is enabled, any call
		returning back to a node is cleared. In addition to enabling this option, you
		must also set the maximum number of hops for call packets entering the
		nodes.
		• Increase of map table entries: This feature lets you configure up to 500 entries
		in the SoTCP map table. This increase supports only the Vanguard 6520,
		Vanguard 6560 and Vanguard 6400 devices.
		Note
		With the exception of the SoTCP map table entries increase, these features are
		available in the IP+ License for all Vanguard 64xx, Vanguard 320, and Vanguard
		6560 products
		For more information, refer to the Serial Protocol over TCP Manual
		(Part Number T0100-06).
5.50	BSTD TPAD Response Timeout Value Decrease	Release 5.5 allows the reduction of the minimum value of the Burroughs Poll Select
		Response Timeout Value on a TPAD port from the current 400 milliseconds to 50
		milliseconds.
		This feature is available in the SNA+ Applications Ware License for all Vanguard
		products. For more information, refer to the Burroughs Polled Select Manual
		(Part Number T0102-02).
5.50	GSC Lottery (X.42) Protocol Enhancements	Release 5.5 provides for enhanced operation of certain GSC features. GSC is a
		8-bit asynchronous, polled protocol especially developed for lottery applications by
		the GTECH Corporation. This protocol is very similar to X.42 and typically is used
		for communication between GTECH's GTX polling controller at the central site and
		the lottery terminals located on a retail premise.
		These new enhancements provide the flexibility and cost advantages of packet-based
		technologies (X.25, Frame Relay,
		D-Channel packet, etc.). The GSC protocol is spoofed by the access device at either
		end (HPAD/TPAD), and only data is sent over the packet network.
		This feature is available in the SNA+ Applications Ware License for 6500 PLUS ,
		Vanguard 6520, Vanguard 6560, and Vanguard 305 products. For more information,
		refer to the X.42 Protocol Manual (Part Number T0102-10).
		Note
		The Vanguard documentation set refers to GSC as X.42 given the extensive
		similarities between the two.
5.50	PPP AT Dialer	This feature provides a mechanism for Point-to-Point Protocol to dial automatically
		over a dial up modem. The dialup numbers can be configured in the node, and the
		modem allows for both incoming and outgoing calls.
		This feature is available in the IP+ License for all Vanguard products. For more
		information, refer to the Point-to-Point Manual (Part Number T0106-08).
5.50	PPP Long Account Name and Password/Secret	This feature increases the length of the PPP Node Name and Account Name to 64
		characters. Additionally, up to 32 characters can be used in the PPP Node Name,
		Password, and Secret at the remote end. For more information, refer to the Point-to-Point
		Manual (Part Number T0106-08).
5.50	PPP over Channelized T1/E1	This feature allows for PPP over Channelized IP T1/E1 connections. For more
		information, refer to the Point-to-Point Manual (Part Number T0106-08).
5.50	Enhanced Ping	This feature is a debugging tool used for IP networks. Enhanced Ping allows you to
		specify both the source and destination IP address, as opposed to just the destination
		address as in normal Ping.
		This feature is available in the IP+ License for all Vanguard products. For more
		information, refer to the Vanguard Basic Configuration Manual
		(Part Number T0113).
5.50	Traceroute	Traceroute is a debugging tool that allows you to see the route IP datagrams follow
		to a certain destination. Traceroute displays a complete list of routers a datagram
		must cross in order to reach its destination as well as the RTTs between the host
		where the Traceroute program resides and each of these routers.
		This feature is available in the IP+ License for all Vanguard products. For more
		information, refer to the Vanguard Basic Configuration Manual
		(Part Number T0113).
5.50	Triple DES Encryption	This feature, sometimes referred to as 3-DES, is an encryption standard used to
		secure data. 3-DES uses two distinct keys of 64 bits each; DES uses only one distinct
		key to encrypt data. The combination of the two distinct keys provides 128 bits of
		encryption strength.
		Security Applications Ware Upgrade Licenses are for use on Vanguard 305, 6425,
		6435, 6455, 6520, and 6560 products. For more information, refer to the Data
		Encryption Manual (Part Number T0103-09).
5.50	Vanguard Voice Firewall Support	Corporate network security is necessary to protect vital and sensitive information, as
		well as to prevent the nuisance of hacker attacks. Firewalls are the standard method
		for achieving this security. One method firewalls use is to disallow calls that use the
		same UDP port for sending and receiving messages. This conflicts with the previous
		implementation of VoIP, as voice frequently uses the same UDP port for sending and
		receiving.
		Vanguard VoIP H.323 V2 software can support corporate firewall security after
		H.323 V2 and SoTCP are enhanced. The software also allows high-quality VoIP
		calls to be initiated by enabling support of different UDP ports for sending and
		receiving messages. This support provides VoIP without compromising voice quality
		or security. The Voice Upgrade License is for use on all Vanguard Products. UDP
		port numbers are available for VoIP/SoTCP. For more information, refer to the
		Vanguard Voice Manual
		(Part Number T0104-05).
5.50	H.323 V2 Support	Vanguard Voice has been enhanced to include H.323 Version 2, which provides a
		new range of features and enables the use of Gatekeepers for call control. New
		features include:
		• Fast connect – Mimics PSTN speed of a call connection, a weakness of
		H.323 V1
		• H.245 – Provides the necessary signaling to a Gatekeeper to support call
		control
		• Indirect call control – A standard telephone applications feature used in
		standard telephone applications, such as calling cards or pre-paid accounts
		where the caller is directed to enter DTMF (Dual Tone Multiple Frequency)
		tones for security and billing purposes.
		• H.323 Facility messaging – Allows for call redirection, for example to voice
		mail systems.
		The Voice Upgrade License is for use on all Vanguard Products. For more
		information, refer to the Vanguard Voice Manual (Part Number T0104-05).
5.50	Vanguard Voice Broadcast	The Vanguard Voice Broadcast feature can triggered automatically when the
		recipient picks up their phone and simultaneously broadcast a message to more than
		60 other phones. One or two phones can be used to originate phone messages. A
		typical application would be broadcasting a morning briefing session to employees.
		Vanguard products support this Vanguard Voice Broadcast feature. Vanguard Voice
		Broadcast operates with (G.723.1 (5.3 and 6.3 kbps); G.792A (8 kbps) and G.711
		(64 kbps PCM), H.323 VOIP, VOFR, or VoSoTCP and represents a cost-effective
		solution for communicating with large groups of people.
		The Voice Upgrade License is used for Vanguard 6560, 6520, 6435, 6450 and 6455
		for both source and reception; Vanguard 320 only for reception. For more
		information, refer to the Vanguard Voice Manual (Part Number T0104-05).
5.50	BRI Voice Support	Vanguard Voice Software is enhanced to include the support of ISDN Basic Rate
		Interfaces. This includes support for Q.Sig Basic Services (per ECMA 143
		standard), Supplementary Services (per ECMA 165 standard) and segmentation of
		messages longer than 255 bytes (per ECMA 143 Appendix ZA).
		For more information, refer to the Vanguard 6520/6560 Manual (Part Number
		T0103-05), Vanguard ISDN Manual (Part Number T0103-06) and Vanguard Voice
		Manual (Part Number T0104-05).
5.50	High Density Server Module (HDSM) for 6560	A new High-Density Voice Server Option for the 6560 replaces the current
		DSPM/SM. This software is backward compatible with the older card. Two new
		hardware options are available:
		• 32 Channel High-Density Server Card
		• 48 Channel High-Density Server Card
		For more information, refer to the 6560 Installation Manual (Part Number T0126).
5.50	Simultaneous Support for ISDN BRI Data and Voice	Vanguard Applications Ware provides additional features for the Vanguard 6455.
		The BRI Data Daughtercard and BRI Voice Daughtercard can operate in the same
		Vanguard 6455. For more information, refer to Vanguard 6435/6455 Installation
		Manual (Part Number T0166).
5.50	Vanguard 6455 VOIP Convergence Card Support	The VOIP Convergence Card, is an option card for the Vanguard 6450 and 6455.
		Coupled with DSP SIMM cards that mount to the option card, the VOIP
		Convergence Card provides the following features:
		• Support for 30 Voice Channels for the E1 card and 24 Voice Channels for the
		T1 card.
		• Supports 31 virtual data ports for the E1 card and 24 virtual data ports for the
		T1 card.
		• Supports two DSP SIMM cards: a card with two DSP (Eight Voice Channels)
		and a card with 4 DSPs (16 Voice Channels).
		- E1 should use two 16 Channel cards
		- T1 should use one 8 channel and one 16 channel card.
		• Supports any combination of voice and data.
		• Provides aggregate speed of 2.048 Mbps of data traffic on all virtual data
		ports.
5.50	G.711 Vocoder Support	Support for the G.711 Voice Coder is added for the Vanguard 6560 HDSM and
		645X VOIP Convergence Card for Voice Relay and SOTCP based voice ports.
		Support for G.711 over H.323 is not currently available within Release 5.5, but will
		be released subsequently as a software “patch” on top of Release 5.5. For more
		information, refer to the Vanguard Voice Manual (Part Number T0104-05).
5.50	G.723.1 and G.729 Compression Support	For the Vanguard 6560 HDSM and 645X VOIP Convergence Card, Customer
		Software Keys (CSKs) are not required for G.723.1 or G.729 compression. For more
		information, refer to the Vanguard Voice Manual (Part Number T0104-05).
5.50	Differentiated Services (Diff Serv) Enhancements	This feature builds on the Type of Service (TOS) to provide more granularity of QoS
		so that Service Level Agreements can be offered. Diff Serv uses all eight bits of the
		TOS Byte (now renamed the DS byte) to provide 64 traffic classes (versus eight
		previous traffic classes) for IP traffic. The Diff Serv specification defines certain
		hop-by-hop behaviors and how these are to be accomplished using different
		prioritization, queuing, and bandwidth management schemes. These Vanguard
		enhancements support:
		• Diff Serv behaviors
		• Class Queuing
		•Marking
		• Code points
		•Flow mapping
		• Expedite (highest priority queue)
		• Assured Per-Hop Behaviors (PHB’s)
		• Committed Access Rate (CAR)
		• Token Bucket, and various traffic-conditioning algorithms to support queues
		and provide rate-throttling mechanisms named Dropper, Shaper and Three
		Color Markers
		Weighted Random Early Detection (WRED) which takes advantage of TCP’s built-in
		congestion control mechanism is also supported. Network users who want to take
		full advantage of the business benefits of convergence have suitable QoS
		prioritization in the Intelligent edge, regarding network core size, speed and
		capability.
		This feature is available in the IP+ License for all Vanguard products. For more
		information, refer to the Quality of Service Manual (Part Number T0100-10).
5.50	FRI DCE	A new parameter, the Control Protocol Role, is added to the Frame Relay Interface
		(FRI) port record. If you specify the DCE parameter and either LMI, Annex_A, or
		Annex_D is the Control Protocol Support, the Vanguard sends an update status
		message to the DTE to stop transmission anytime packets queued for a station reach
		the flow control threshold. When packets queued is less than the threshold, the
		Vanguard sends an update status message to the DTE to send transmissions. For
		more information, refer to the Frame Relay Manual (Part Number T0106-02).
5.50	FRF.12	The Motorola Vanguard Series of products supports Frame Relay Fragmentation
		Implementation Agreement 12 (FRF.12). This feature allows long data frames to be
		fragmented into smaller pieces and interleaved with real-time frames. For more
		information, refer to the Frame Relay Manual (Part Number T0106-02).
5.50	Asynchronous Transfer Mode	Asynchronous Transfer Mode (ATM) is a cell-switching and multiplexing protocol.
		It combines the capacity and constant transmission delay aspects of circuit switching
		with the flexibility and efficiency of packet switching, allowing for scalability in
		bandwidth from megabits to gigabits per second. For more information, refer to the
		Asynchronous Transfer Mode (ATM) Manual (Part Number T0100-11).
5.50	IP Over ATM	The Vanguard Series of products provides for the support of mulitprotocol support of
		IP and IPX routing protocols as well as Ethernet and token-ring bridged protocols. IP
		Address Resolution compliant with RFC1577 as well as IPX Address Resolution,
		standard encapsulation compliant with RFC 1483 is as well as FR-ATM service
		interworking via RFC1294 and RFC 1483 are supported. For more information, refer
		to the Asynchronous Transfer Mode (ATM) Manual (Part Number T0100-11).
5.50	ATM Support Added to CLI	With the introduction of ATM support in Release 5.5, the standard Command Line
		Interface (CLI) function is modified to allow configuration of all ATM parameters.
		The CLI function now also supports node configuration changes made by the
		Vanguard Configuration Wizard. For more information, refer to the Asynchronous
		Transfer Mode Manual (ATM) (Part Number T0100-11).
5.50	ATM for E1/T1 Access	The ATM Feature Set supports the requirements of an access router that is
		interfacing with T1/E1 lines and supports UBR and CBR Traffic ATM and IP, and
		SNA+ Applications Ware Licenses for the Vanguard 6435/6455 only. For more
		information, refer to the Asynchronous Transfer Mode Manual (ATM)
		(Part Number T0100-11).
5.50	ATM Enhanced Daughtercard	The T1/E1 ATM Enhanced Daughtercard can be installed in either a Vanguard 6435
		or Vanguard 6455. These products support a maximum of two ATM EDCs; each
		connecting a single port to either a T1 or E1 leased line network. For more
		information, refer to the 6435/6455 Installation Manual (Part Number T0166).
5.50	VPN Tunnel Host Name	The name field in the node parameters is extended from eight characters to 64
		characters. This allows sufficient room to append domain name strings to the node
		name to support the customer’s VPN L2F tunnel identification, although Motorola
		does not support L2F Tunneling. When a router calls in to the VPN, and performs
		PAP or CHAP authentication, the network needs to identify the L2F tunnel to route
		the packets through the network to Worldspan’s data center. The method used by
		MCI/UUNET for tunnel identification is to append a domain name to the Name field
		used by PAP and CHAP.
		This feature is available in the Security Applications Ware License for all Vanguard
		products. For more information, refer to the Virtual Private Network Manual
		(Part Number T0103-10).
5.50	IPSec VPN	The Vanguard IPSec option enables Vanguard products to create secured VPNs over
		public networks or the Internet. IPSec is a widely-accepted Layer-3 security standard
		for protecting the integrity and the confidentiality of user data.
		This feature is available in the Security Applications Ware License for all Vanguard
		products. For more information, refer to the Virtual Private Network Manual
		(Part Number T0103-10).
5.50	Intranet VPN (for WAN-to-WAN or LAN-to-LAN Connection)	Intranet VPNs allow secure VPN connections to be enabled within a corporate
		Intranet. This feature is available in the Security Applications Ware License for all
		Vanguard products. For more information, refer to the Virtual Private Network
		Manual (Part Number T0103-10).
5.50	Fatal Report and Diagnostics Enhancements (FER)	Automatically captures the following:
		• Logged alarms into a report at the moment of crash
		• The DES file contents
		• The CMEM contents
5.50	Airline Control Support for Command Line Interface (ALC for CLI)	In CLI mode you can use CLI basic commands (create, get, set) for Airline Control
		module configuration. For more information, refer to the Airline Line Control ALC
		Manual (Part Number T0102-15).
5.50	Vanguard 6435/6455	The Vanguard 6435 and 6455 are flexible, RISC processor-based multiservice
		routers that provide increased performance and enhanced capability through high-speed
		interfaces for bandwidth-intensive LAN/WAN applications. An enhancement
		to the Vanguard 6400 Series, they offer cost-effective, simultaneous support for
		voice, fax, video, and mixed protocol data traffic over IP, Frame Relay, X.25, ISDN,
		or NX64 T1/E1 services. The Vanguard 6435 comes in a compact standalone
		version, where the Vanguard 6455 can be easily mounted in a 19 inch rack. They are
		SNMP-manageable and come with a variety of LAN, SNA, and IP networking
		features.
		The Vanguard 6435/6455 provides these hardware features:
		• A processor speed of 50MHz for fast performance.
		• Synchronous DRAM SIMM which must be installed for the node to function.
		- The Vanguard 6435/6455 requires a minimum of 16MB DRAM SIMM.
		- You can upgrade by replacing the 16MB DRAM SIMM with a 32MB
		DRAM SIMM.Vanguard 6435/6455 DRAM SIMMs are not compatible with the Vanguard 6425/6430/6450.
		• A 1MB Synchronous Static RAM on the Vanguard 6435/6455 main CPU card
		improves product performance.
		• Static RAM buffers on the main CPU card’s daughtercard interfaces to
		support high speed applications.
		• Real Time Clock (RTC) battery life of two years. You do not have to remove
		the RTC battery to prevent battery drain during short term storage.
		• New generation, Enhanced Daughtercard (EDC) interface.
		The Applications Ware software includes performance enhancements. For more
		information about the Vanguard 6435 and Vanguard 6455, refer to Vanguard
		6435/6455 Installation Manual (Part Number T0166).
5.50	New Vanguard 6435/6455 platforms and their 100BT Daughtercards	New Vanguard 6435/6455 platforms, new daughtercards and enhanced
		daughtercards previously supported by point releases based on release 5.4 are now
		supported by Applications Ware Release 5.5. IP+ License, SNA+ Applications Ware
		License, and Multi-Service Licenses are available for Vanguard 6435 and 6455. For
		more information, refer to Vanguard 6435/6455 Installation Manual
		(Part Number T0166).
5.50	Gen 1.5 & 100BT Vanguard 6435 and Vanguard 6455	The new platforms and daughtercards previously supported by point releases are
		now supported by the 5.5 Software Release. For more information, refer to Vanguard
		6435/6455 Installation Manual (Part Number T0166).
5.50	10/100BaseT Daughtercard	The Vanguard 6435 and Vanguard 6455 features the new Enhanced Vanguard
		Daughtercards. The 10/100BaseT Enhanced Vanguard Daughtercard is available for
		this release. This daughtercard conforms to the Fast Ethernet LAN specification
		(IEEE 802.3u) known as 100BaseT, which raises the Ethernet speed limit from 10
		Megabits to 100 Megabits per second. The daughtercard has an auto-sensing feature
		that determines whether the connection is 10BaseT or 100BaseT and adjusts its
		speed as required. For more information about the 10/100BaseT Enhanced Vanguard
		Daughtercard, refer to Vanguard 6435/6455 Installation Manual (Part Number
		T0166).
5.50	Ethernet Full-Duplex Capability for Ethernet 100 Base-T	100 Base-T is expanded to support Half-Duplex or Full-Duplex capability. This
	Daughter Card also can be configured for Full - Duplex	mode selection is configured in the Ethernet port record. This feature is available in
		the IP+ License for Vanguard 6435 and 6455 products. For more information about
		the Vanguard 6435 and Vanguard 6455, refer to Vanguard 6435/6455 Installation
		Manual (Part Number T0166).
5.50	Ethernet Frame Size-Extension	This feature allows the maximum frame size to be increased from the default of 1518
		bytes to 17800 bytes. This change is reflected in the Maximum Frame Size
		parameter found in the node record. Values of 1620, 2200, 4096 and 4590 bytes are
		now accepted. This feature is available in the IP+ License for all Vanguard products.
		For more information, refer to the Ethernet Basics Manual (Part Number T0109).
5.50	Accelerated IP Forwarding	Accelerated IP Forwarding uses Aggregate Cache to improve IP forwarding
		performance over normal path forwarding. This feature reduces the amount of
		processing that IP packets undergo during transmit in the node.
		Accelerated IP Forwarding is supported on the Vanguard 6435/6455 only. For more
		information, refer to the IP Routing Manual (Part Number T0100-03).
5.50	Infonet Terminal Setting Save (APAD RESELECT FOR INFONET)	With Release 5.5 you can log into the Infonet network through the PAD port. This
	Customer Software Key (CSK)	lets you connect to the server while the terminal retains its X.29 settings in order to
		reselect a call without having to use the intermediate processor. A CSK is required to
		activate this feature which is only available with the IP+ License for the
		Vanguard 6425.
5.50	4K Packet Size Support for X.25 Ports	Release 5.5 supports 4K packet size on the X.25 port. A CSK is required to activate
		this feature which is available in the IP+ License for all Vanguard products.
5.50	4-digit Subaddress Support	The Number of Subaddress Digits in X.25 Address parameter in X.25 port record is
		changed from 3 to 4. This feature is available in the IP+ License for all Vanguard
		products.
5.50	Hexidecimal and Alphanumeric Information on CUD (Call User Data)	In previous releases of Applications Ware, Vanguard products would only accept
		alphanumeric characters in response to an X.25 call packet built internally. This has
		been expanded to accept both alphanumeric and hexidecimal information on the
		CUD. This feature is available in the IP+ License for Vanguard products.
5.50	EPS Reroute	This feature is unique for EPS environments and allows re-routing based on EPS
		requirements for cause-and-fixed diagnostic code. This allows the call to be routed to
		an alternate port on the host if the call-handling process on a port hangs. A Customer
		Software Key (CSK) is required to activate this feature. This feature is available in
		the IP+ License for all Vanguard products.
5.60	Release 5.6 of the operating software for	Vanguard 320
	these Motorola Vanguard platforms:	• Vanguard 340
		• Vanguard 6425/6430/6450/6435/6455
		• Vanguard 6560
5.60	Release 5.6 does not support the following:	Vanguard 100 (supported by Release 5.3M)
		• Vanguard 200 (supported by Release 5.1M)
		• Vanguard 300 (supported by Release 5.4)
		• Vanguard 305 (supported by Release 5.5)
		• Vanguard 311 (supported by Release 5.1M)
		• Vanguard 311 PLUS and 312 PLUS (supported by Release 5.3M)
		• Vanguard 6520 (supported by Release 5.5)
		•6500 PLUS (supported by Release 5.1M)
		• 650D (supported by Release 5.0C)
		• Voice feature on the Vanguard 100 (supported by Release 5.2)
		Vanguard 7300 (supported by Release 5.4 P0LA)
5.60	Memory Changes for Release 5.6	Vanguard 320 8MB or 12 MB DRAM
		Vanguard 340 16MB or 32MB DRAM 4M Flash
		Vanguard 6400 16 MB DRAM 4M Flash
		Vanguard 6435 16MB or 32MB DRAM
		Vanguard 6455 32MB DRAM
		Vanguard 6560 8MB Global DRAM 4meg flash
		16MB Local DRAM
5.60	BRI SO Voice Feature	BRI SO Voice support is available with Release 5.6. For more information, refer to
		the Vanguard 340 Installation Manual (Part Number T0178).
5.60	H.323 V2 Enhancements	Vanguard Voice has been enhanced to include H.323 Version 2, which provides a
		new range of features and enables the use of Gatekeepers for call control. New
		features include:
		• Fast connect – Mimics PSTN speed of a call connection, a weakness of
		H.323 V1
		• H.245 – Provides the necessary signaling to a Gatekeeper to support call
		control
		• Indirect call control – A standard telephone applications feature used in
		standard telephone applications, such as calling cards or pre-paid accounts
		where the caller is directed to enter DTMF (Dual Tone Multiple Frequency)
		tones for security and billing purposes.
		• H.323 Facility messaging – Allows for call redirection, for example to voice
		mail systems.
		Block Alerting - This feature is specific to a PRI to E&M application. The
		E&M interface sends the alerting and connect messages at the same time.
		• E.164 Address Registration: The H.323 Version 2 Motorola gateway now
		supports the registration of E.164 numbers with the gatekeeper for phones
		connected directly to the gateway. This feature helps to expand the Vanguard
		interoperability capabilities with Cisco. Cisco utilizes the registration of an
		E.164 address. The E.164 address registration feature is applicable only with
		FXO/FXS interface types. The E.164 address registration can be configured
		on either a voice port or a virtual voice port. The phone number used in the
		Local Subscriber Address parameter is registered as E.164 numbers.
		• Alternate Gatekeeper: If the primary Gatekeeper goes down no calls can be
		made. This has an impact on both Infrastructure and application Gatekeepers.
		With this feature the Vanguard products are able to provide more redundancy
		by redirecting calls to a secondary or backup gatekeeper. This feature is
		available in 5.4P0KA
		• Clear Token Support - This is an important feature when using the NetSpeak
		Gatekeeper. This feature allows source based routing and custom dial plans to
		be implemented across domains and provide a 50% increase in routing
		performance when routing calls sourced out of domain. In the absence of the
		NetSpeak Clear Token, the destination side gatekeeper must reroute the call
		upon receipt of a setup. This feature is available in 5.4P0KA.
		• Can_MAP_Alias - This feature allows an infrastructure NetSpeak gatekeeper
		the capability to manipulate the dialing plan. The effected scenarios are:
		EVERY call model where a Vanguard Gateway is the source of a call and
		resides on an infrastructure (direct-mode) Gatekeeper and the gatekeeper is
		configured to do digit conversion. The Vanguard gateways support the feature
		on both source and destination gateways. The destination gateways would
		only work with E.164. This feature is available in 5.4P0KA
5.60	BSC 3270-to-LLC2 (SNA) Conversion for the Vanguard 6455	The Vanguard 6455 is a flexible, RISC processor-based multiservice router that
		provides increased performance and enhanced capability through high-speed
		interfaces for bandwidth-intensive LAN/WAN applications. An enhancement to the
		Vanguard 6455 Series is the addition of BSC 3270-to-LLC2 (SNA) Conversion.
		This feature is available in the SNA+ Applications Ware License for the Vanguard
		7300 Series and Vanguard 6455.
5.60	Intranet Virtual Private Network (VPN) for LAN Connection	Intranet VPNs allow secure VPN connections to be enabled within a corporate
		Intranet. This feature is available in the Security Applications Ware License for all
		Vanguard products.
5.60	Frame Relay Loopback Detection	When using Vanguard products the frame relay ports do not detect a condition in
		which transmit data is looped back to its received data. As a result, the Vanguard is
		unable to activate a backup link when the primary link is disrupted by an external
		loopback. The FRI port cannot detect the loopback condition when it receives a
		STATUS ENQ message. The FRI port automatically switches to bidirectional mode
		and responds with STATUS messages. The Vanguard does not realize the link is
		loopbacked when receiving STATUS messages in response to its own STATUS ENQ
		messages.
		Release 5.6 includes a new parameter option called DTE_ONLY. DTE_ONLY
		prevents the DTE from switching to bidirectional mode and causes incoming
		STATUS ENQ messages to be ignored. When the link does not receive a STATUS
		message in response to its ENQ message, it declares the link down and causes the
		backup to be activated. For more information about Frame Relay Loopback
		Detection.
5.60	FRF.12 Enhancements (Voice Header Insertion)	The Motorola Vanguard Series of products supports Frame Relay Fragmentation
		Implementation Agreement 12 (FRF.12). Release 5.6 introduces an additional
		parameter called Voice Header Insertion, located in the FRI Station Record
		Parameters.The Voice Header Insertion parameter controls the presence of the Voice
		Header in front of voice packets.
5.60	Simple Network Management (SNMP) for Quality of Service (QoS)	Simple Network Management Protocol (SNMP) support for Vanguard products
		provide SNMP functionality to Quality of Service configuration and statistics
		parameters.
5.60	RTP Header Compression w/Cisco Interoperability	RTP Header compression is available today on the Vanguard series products and the
		implementation is compliant with the written standards. What is being delivered in
		this 5.6 release is a version that will inter-operate with Cisco’s proprietary
		implementation over Frame Relay. Cisco only supports RTP header compression
		over Frame Relay links configured for “cisco” encapsulation. In Release 5.6 a new
		“CENCAP” encapsulation mode has been added to support inter-connection with
		cisco nodes running “cisco” Frame Relay encapsulation and RTP header
		compression. CENCAP encapsulation should only be used on Frame Relay links
		when interoperability with a cisco node and RTP header compression are required
		over Frame Relay.
5.60	Duplicate IP Address Detection	The 5.6 Duplicate IP Address Detection is used to detect if the same IP address has
		been configured on multiple IP devices on the same LAN. A new parameter has been
		added to the IP Interface Configuration Menu called Duplicate Address Detection.
5.60	New Motorola 56167 Chip for the Vanguard Voice Daughtercards	The Motorola 56166 DSP chip is no longer available. It has been replaced by the
		Motorola 56167 DSP chip. Existing Daughtercards are supported from a software
		perspective. The software solicits the DSP model type from the hardware and
		configures the software and DSP accordingly.
6.0.R00A	Release 6.0.R00A Software for these Vanguar platforms:	Vanguar 320
		Vanguar 340
		Vanguar 6425 6430 6450 6435 6455
		Vanguar 6560
		Vanguar 7310, 7330
6.0.R00A	Release 6.0.R00A does not support the following:	Vanguar 100 (supported by Release 5.3M)
		Vanguar 200 (supported by Release 5.1M)
		Vanguar 300 (supported by Release 5.4)
		Vanguar 305 (supported by Release 5.5)
		Vanguar 311 (supported by Release 5.1M)
		Vanguar 311 PLUS an 312 PLUS (supported by Release 5.3M)
		Vanguar 6520 (supported by Release 5.5)
		6500 PLUS (supported by Release 5.1M)
		650D (supported by Release 5.0C)
		Voice feature on the Vanguar 100 (supported by Release 5.2)
6.0.R00A	SAKs	Software Access Keys (SAKs) are not generally used with Release 5.2 and later
		products. Pre-Release 5.2 products, however, still use their SAKs. If you purchased
		SAKs for an earlier release, they can still be used with this release.
6.0.R00A	Memory Changes	Product Total Memory Required at Release 6.0.R00A
	for Release	Vanguard 320 8MB or 12 MB DRAM
	6.0.R00A	Vanguard 340 16MB or 32MB DRAM 4M Flash
		Vanguard 6400 16 MB DRAM 4M Flash
		Vanguard 6435 16MB or 32MB DRAM
		Vanguard 6455 32MB DRAM
		Vanguard 6560 8MB Global DRAM 4M Flash
		16MB Local DRAM
		Vanguard 7310, 7330 32M Flash 128M DRAM
6.0.R00A	Vanguard 7310 and 7330 Merge to Release 6.0.R00A	The Vanguard 7310 and 7330 routers have been added to Release 6.0.R00A. This
		release replaces previous 7300 Series 5.4 Point Releases. For more information on
		the Vanguard 7300 Series, refer to the Vanguard 7300 Installation Manual
		(Part Number T0185).
6.0.R00A	Four-Port FXS/FXO Cards for the Vanguard 340, 6435 and 6455	The Vanguard Quad FXS/FXO Daughtercard is supported on the Vanguard 340,
		6435, and 6455. The Four-Port Voice FXS and FXO Daughtercards provide four
		RJ11 connectors for FXS and FXO ports. Release 6.0.R00A or greater is required
		for the Quad FXS daughtercard. For more information, refer to the Vanguard
		Daughtercard Guide (Part Number T0020).
6.0.R00A	Vanguard 7300 Series T1/E1 Board Recovery Feature	The Board management feature is limited to board level actions, this includes
		resetting the hardware, testing the hardware, downloading any necessary software to
		the board, downloading any additional configuration information, activating and
		deactivating the board. The board management function supports recovery of T1/E1
		boards on the 7300 platform. For more information, refer to the Vanguard 7300
		Installation Manual (Part Number T0185).
6.0.R00A	Vanguard 7300 Exception Handling	The Vanguard 7300 system recovers well from node crashes. The node recovers and
		reports the situation to the users. This enables high availability and minimizes
		downtime. For more information, refer to the Vanguard 7300 Installation Manual
		(Part Number T0185).
6.0.R00A	Border Gateway Protocol (BGP-4)	BGP-4 is an inter-autonomous system routing protocol. A BGP router exchanges
		network reachability information with other BGP systems. For more information,
		refer to the Vanguard Border Gateway Protocol Manual (Part Number T0100-13).
6.0.R00A	BSC 2780/3780-to-SNA LU0 Conversion	The BSC 2780 and 3270-to-SNA/LU0 conversion was designed specifically for use
		in Tandem and IBM S/390 networks utilized by large financial institutions. For more
		information, refer to the BSC 2780/3780-to-SNA LU0 Manual
		(Part Number T0101-09).
6.0.R00A	Voice Call Statistics - Voice MIBs	Voice call statistics provide the user with a collection of statistical data to determine
		current and past performances. These statistics are available from the Control
		Terminal Port (CTP) and the SNMP. For more information, refer to the Vanguard
		Voice Manual (Part Number T0104-05).
6.0.R00A	PRI QSIG Supplementary Services - Vanguard 6435/6455	Release 6.0.R00A includes a PRI Supplementary Services for the Vanguard 6400
		Series. This Service provides transparent support for supplementary PBX services,
		so that proprietary PBX features are not lost when connecting PBX’s through the
		Vanguard Managed Solutions gateway networks. For more information about PRI
		Supplementary Services, refer to the Vanguard 6435/6455 Installation Manual
		(Part Number T0166).
6.0.R00A	ATM Enhancements - Vanguard 6435/6455	Release 6.0.R00A includes enhanced ATM functionality for the Vanguard 6400
		Series. These new enhancements are available:
		• Annex G Termination
		• Variable Bit Rate (VBR) - real time and non-real time
		For more information, refer to the Vanguard 6435/6455 Installation Manual
		(Part Number T0166).
6.0.R00A	Voice Switching Table Sizes Increased	Release 6.0.R00A includes a voice switching table size increase to 10,000 for the
		Vanguard 7300 Series, and 3,000 for the Vanguard 6455.
6.0.R00A	LAN Connection - New Default Encapsulation	Release 6.0.R00A uses RFC1294 as the default encapsulation for LAN connections.
		This is a more efficient encapsulation than the former default of Codex.
6.0.R00A	G.711 Enhancements
	Voice Activity Detection	Enables Voice Activity Detection (VAD) for the G.711 coder. When VAD is enabled,
		silent periods of voice conversation are not transmitted over the link and this reduces
		the requirement for wide area bandwidth. Enabling this feature results in a
		bandwidth savings of forty percent. For more information, refer to the Vanguard
		Voice Manual (Part Number T0104-05).
6.0.R00A	G.711 Enhancements
	Dynamic Modem Support - Vanguard 7300, 6455, (6560 with HDSM card)	Support for modem traffic on a voice port on G.711, including auto-detection of
		modem tone and switch over to G.711 when the modem is detected. Dynamic
		Modem support includes a new configuration parameter created to Enable or Disable
		DSP dynamically by switching to Codec G.711 after a modem is detected. This
		parameter is only supported on Texas Instruments (TI) DSP. For more information,
		refer to the Vanguard Voice Manual (Part Number T0104-05).
6.0.R00A	Vanguard Embedded Web Navigator	The Vanguard Embedded Web Navigator allows web management through a
		browser. This new feature is available for use on all Vanguard Products. The
		navigator, embedded inside the Vanguard products, provides web management
		functionality for the Vanguard Managed Solutions family of products. Using any
		web browser, such as Netscape or Internet Explorer (IE) you can access the web
		navigator through a TCP/IP network.
		Vanguard Web Navigator allows you to:
		• Configure nodes
		• Browse statistic information
		• Control network devices remotely
		• Monitor ports in real-time
		• Access multiple control terminal port (CTP) simultaneously
		• Access multiple browser sessions
		• View and save software description files (DES) and configuration scripts
6.0.R00A	Web Access	Note: Multiple users are able to access the Vanguard device at the same time.
		Vanguard Web Navigator
		Step Procedure
		1 Connect your Vanguard to a TCP/IP Network.
		2 Enable the Web Server: Go to the Main Menu->
		Configuration->Configure httpd->Enable Embedded Web
		Server->Enable (where http is the web access protocol).
		3 Enter the IP address of your Vanguard into your web browser:
		Example:
		http://150.83.12.xx
		4 You are able to get statistics and control the network device.
6.1R000	Release 6.1.R000 software for these Vanguard platforms:	Vanguard 320
		• Vanguard 340
		• Vanguard 6435/6455
		• Vanguard 7310, 7330
6.1R000	Release 6.1.R000 does not support the following:	Vanguard 100 (supported by Release 5.3M)
		• Vanguard 200 (supported by Release 5.1M)
		• Vanguard 300 (supported by Release 5.4)
		• Vanguard 305 (supported by Release 5.5)
		• Vanguard 311 (supported by Release 5.1M)
		• Vanguard 311PLUS and 312PLUS (supported by Release 5.3M)
		• Vanguard 6425/6430/6450 (supported by Release 6.0.R00A)
		• Vanguard 6520 (supported by Release 5.5)
		• Vanguard 6560 (supported by Release 6.0.R00A)
		• 6500PLUS (supported by Release 5.1M)
		• 650D (supported by Release 5.0C)
		• Voice feature on the Vanguard 100 (supported by Release 5.2)
6.1R000	Vanguard 7300 Series Token Ring	Token Ring has been added to the 7300 Series Products. The Token Ring port
		statistics screen has changed slightly in 6.1, three new statistics have been added:
		Frame Count, Frames-per-second Count, and Average Frame Size Count. For more
		information, refer to the Vanguard 7300 Installation Manual (Part Number T0185).
6.1R000	Vanguard 7300 Series, 6455 DS0 Switching	The Vanguard 7300 Series and the 6455 now include support for CAS and clear
		channel Timeslot Bypass. For more information, refer to the Vanguard Voice Manual
		(Part Number T0104-05).
6.1R000	Vanguard 7300 Series, 6435/6455, 320 and 340	Release 6.1 or greater now adds the option of loopback for port loopback on the
	Port and DS0 Remote Loopback	Vanguard 7300 Series, 6435/6455, 340, and 320. The ability to perform port/
		interface and DS0 loopbacks is added to all T1/E1 ports/interfaces in these
		platforms. Remote loopback is the loopback towards the carrier. A DS0 loopback
		will loopback anything received on a single or a group of timeslots back to the
		transmit side of the same timeslot(s). A full port loopback will loopback all DS0
		channels from the receiver to the transmitter. For more information, refer to the
		Vanguard Voice Manual (Part Number T0104-05).
6.1R000	Vanguard 6435/6455 and 340 Quad Card Enhancement	With release 6.1 the quad card can now establish an audio path for an Auto Call or
		No Signalling call type without detecting an off-hook condition. This permits the
		Vanguard’s to work in a radio network with base microphone transmissions and
		voice comparator’s functionality for incoming radio traffic. For more information,
		refer to the Vanguard Daughtercard Guide (Part Number T0020).
6.1R000	Vanguard 7300 Series Table Size Increases	Vanguard 7300 Series
	(Included in 6.0.P02A, 6.0.P02B, and 6.1.R000)	Original Maximum Limits - New Maximum Limits
		NAT Entries - Table Size 255 - 1,023
		Number of Static Routes 1,024 - 8,000
		Number of LCONS 2,000 - 8,000
		Number of Mnemonic Table Entries 2,000 - 8,000
		Outbound Translation Table Entries 1,600 - 16,000
		Number of Multi-link PPP Profiles 600 - 1,000
		Number of Bridge Link Entries 250 - 1,000
		MAC Filter Table Entries 300 - 1,200
		Transparent Bridge Forwarding Table 8,000 - 16,000
		Number of Frame Relay SLAC Stations 1,000 - 2,000
		LLC LAN Conversion Stations:
		Vanguard 7300 Series - 1,000 per interface, 2,000 per node (Release 6.0 and greater)
		Vanguard 340, 6435/55 - 250 per interface, 500 per node
		Vanguard 320 - 64 per node
		LLC FRI Conversion Stations:
		Vanguard 7300 Series - 2,000 per node (Release 6.1 and greater)
		Vanguard 7300 Series - 1,000 per node (Prior to Release 6.1)
		Vanguard 340, 6435/55 - 250 per node
		Vanguard 320 - 64 per node
6.1R000	Vanguard 7300 Series Software Performance - Annex G	Annex G performance can be increased by 40 percent with proper tuning. Release
		6.1 and greater includes a new parameter called Window Subtractor. The window
		subtractor parameter changes the point in the receive window that the layer 3
		acknowledgment is to be sent when there are not any packets to send in the reverse
		direction. The acknowledgment is sent when the number of packets equivalent to the
		W Packet Window minus theWindow Subtractor has been received. If theW packet
		Window is 32 and the window subtractor is 8, the layer 3 acknowledgment is sent
		once 24 packets have been received.
		Setting the Window Subtractor to a non-zero value when INL or INL+INLB are set
		has no impact on the functionality of the routing loop detection feature of INL. It
		only effects functionality when the layer 3 acknowledgment is sent. If INL is
		specified and the subtractor is zero, the router uses the previous setting of 2. If INL+
		INLB is specified and the subtractor is zero, the router will send an
		Acknowledgment for every packet received. This is also what occurs if INL or INLB
		are not specified and the subtractor is zero.
		You should increase the value of the subtractor when you are using high speed
		end-to-end connections or when path delays are unusually high. This sends the
		acknowledgments sooner so the remote window stays open and the remote node can
		continue to send data without being stopped (waiting for an acknowledgment).
		The "Window Subtractor" Value is dependent on the "W" (packet) window setting
		and interacts with many other settings and factors such as the speed of the line, the
		K (frame) window setting, circuit propagation delay, etc. Tuning can result in CPU
		utilization savings and higher throughput.
6.1R000	Annex G/X.25 Window Guidelines
		These recommendations were determined in a controlled environment. In links with
		long delays adjustments may be required. A general rule would be to be bring the
		Window Subtractor value close to or equal with the “W’ Packet window. This
		effectively allows the acknowledgments to be sent out faster accommodating the
		added delay.
		The new Window Subtractor parameter is downward compatible with previous
		releases. It can be set independently at one end of the link without effecting the
		remote node that may not have this parameter. In addition to the recommendations in
		the table above the following two parameters should be always be set as shown
		below:
		• Data queue upper threshold = 15
		• Data queue lower threshold = 4
		Note
		The Vanguard 7300 W Packet Window parameter’s default has been changed
		from 2 to 7 in release 6.1 and greater.
6.1R000	Improvements in Reporting and Diagnostics - All Products	This feature adds reporting and diagnostic enhancements. Release 6.1 and greater
		allows up to 20 alarm to be displayed in the Fatal Error Report (FER). The alarms are
		now organized to provide more useful information. There is a new Alarms Throttling
		feature that controls the number and levels of generated alarms, similar to the Trap
		Throttling feature. CSU/DSU alarm capturing history is shown in port statistics.
		Alarms are generated when DSU signals change (NIS, BPV, DL, C+, C-, RS, LL,
		CL, IDL, CLK). For more information, refer to the Alarms and Reports Manual
		(Part Number T0005) and Vanguard Basics Manual (Part Number T0113).
6.1R000	H.323 ISDN PRI/BRI Supplementary Services Support - All products	Release 6.1 provides transparent support for H.323 ISDN PRI/BRI for Voice over IP,
		Voice over Frame Relay (VoFR) and SoTCP. PBX supplementary service messages
		and information elements are passed transparently over H.323. The passing of
		Supplementary Service does not operate with third party equipment. This feature
		operates with Vanguard products only. For more information about H.323 ISDN
		PRI/BRI Supplementary Services, refer to the Vanguard Voice Manual
		(Part Number T0104-05).
6.1R000	Multiple IP Ping (Remote Ping)	Multiple IP Ping allows you create a maximum of ten ping entries. This created
		ping record is stored in CMEM. For a description of the new parameters, refer
		to the Vanguard Basics Manual (Part Number T0113).
6.1R000	Vanguard 6435/6455 and 7300 Series ISDN PRI AT&T 4ESS Switch	ISDN PRI AT&T switch type 4ESS is now supported in the Vanguard 7300 Series
		and 6435/6455 platforms. For more information, refer to the Vanguard Voice Manual
		(Part Number T0104-05).
6.1R000	Vanguard 6435/6455 and 7300 Series Calling Number	Currently incoming ISDN PRI data calls on Vanguard 6435/6455 and 7300 Series
		can be connected to a virtual port based upon the Called Party Number in the call
		setup message. This feature adds the option of connecting an incoming call based on
		the Calling Party Number. The calling number virtual port is used when a PRI
		interface has a single phone number associated to it, not individual phone numbers.
		This feature is used for data calls. For more information, refer to the Vanguard Voice
		Manual (Part Number T0104-05).
6.1R000	Serial over TCP (SoTCP) Support for X.25 Interrupt Packets	Serial over TCP (SoTCP) now supports X.25 Interrupt Packets by forwarding
		Interrupt and Interrupt Confirmation packets received. For more information
		refer to the Serial Protocol over TCP Manual (Part Number T0100-06).
6.1R000	Release 6.1V anguard 7300 Chassis Redesign (Version 2)	The Vanguard 7300 Series chassis has been redesigned. The redesigned chassis is
		referred to as The Vanguard 7300 Series Version 2. Software must be configured to
		match the chassis type and version. (DRFaa20456)
		The table below summarizes common and distinct features of each Vanguard
		Version 1 Series enclosure:
		The table below summarizes common and distinct features of each Vanguard
		Version 2 Series enclosure:
6.1R000	Set the Chassis Version Settings	When upgrading a 7300 Series Version 1 to release 6.1.R000 or greater, you must set
		the chassis version setting. If the setting is incorrect (for example, when a CPU card
		is swapped from one chassis to another of a different version) the interface cards will
		not be recognized by the node in the correct physical slot location. Incorrect settings
		can be fixed by setting the software Chassis Version through the ZAP diagnostics
		menu.
		Note
		Units shipping from the factory with Release 6.1.R000 or greater will have the
		version set to match the chassis. Release 6.1.R000 or greater software is
		recommended for Vanguard 7310 and 7330 Version 2.
		Verification
		Verification can be done by checking the Chassis Version printed at the top right of
		page one of the Detailed Node Statistics.

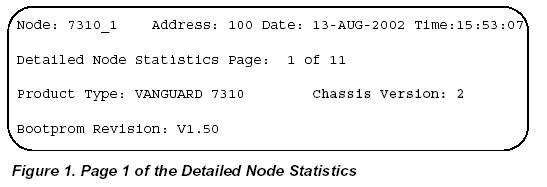

6.1R000	Configuration	If a Vanguard 7300 Series Version 1 is set to Version 2 and needs to be configured,
		use the ZAP menu to set it to Version 1. This is required for the old CMEM to work
		properly. Follow the steps below to set the correct version.
6.1R000	The Vanguard 7300 family of high-performance, redundant, multiservice	CompactPCI architecture designed for carrier class requirements.
	routers includes Models 7310 and 7330 Version 2 with the following	• Rack-mountable 5-slot and 8-slot chassis with AC or DC power.
	features:	• MCP750 processor card with industry-standard peripheral and I/O options.
		The following table lists Vanguard 7300 high-density port capacities. Port counts are
		given for both the Vanguard Model 7310 and the Vanguard Model 7330, along with
		the total port capacity for a typical seven-foot rack of Vanguard 7330 routers.
		For more information on the Vanguard 7300 Series, refer to the Vanguard 7300
		Installation Guide (Part Number T0185) is included on this CD-ROM.
6.1.S100	Vanguard 6435 and 6455 Voice Switching Table Entry Increase	An increase to the voice switching table entries from 3,000 to 6,000 on the Vanguard
		6435/6455 is available with Service Pak 6.1.S100 and greater software.
		(DRFaa20092)
		Note
		Save your CMEM before configuring a large number of entries. If your CMEM
		becomes too large, you might not be able to save it. (DRCaa23348)
6.1.S100	All Vanguards - Software Images Using TFTP	With Service Pak 6.1.S100 and greater software images, Vanguard Routers may now
		act as a TFTP server for CMEM and software image transfers. Using TFTP software
		on a PC, users may now upload the software image the node is currently running to
		the PC. Another aspect of the feature is a node to node download mechanism, where
		a single server node can download CMEM and software images to multiple client
		nodes (up to ten). (DRFaa20656)
		Note
		When using a TFTP application to connect to a Vanguard Router running release
		6.0.R00A or greater software through its WAN link, use the WAN address
		instead of the internal or LAN address. (DRFaa21052)
		For more information regarding the Vanguard TFTP Server, access the Vanguard
		Managed Solutions Product Documentation web site at:
		http://www.vanguardms.com/support/documentation
		TFTP Server information is included in the Installation and Coldloading Manual
		(Part Number T0028).
6.2.R000	Release 6.2.R000 Supports these platforms	• Vanguard 320
		• Vanguard 340, 342
		• Vanguard 6435, 6455
		• Vanguard 7310, 7330
6.2.R000	Release 6.2.R000 Does NOT support these platforms	• Vanguard 100 (supported by Release 5.3M)
		• Vanguard 200 (supported by Release 5.1M)
		• Vanguard 300 (supported by Release 5.4)
		• Vanguard 305 (supported by Release 5.5)
		• Vanguard 311 (supported by Release 5.1M)
		• Vanguard 311PLUS and 312PLUS (supported by Release 5.3M)
		• Vanguard 6425/6430/6450 (supported by Release 6.0.R00A)
		• Vanguard 6520 (supported by Release 5.5)
		• Vanguard 6560 (supported by Release 6.0.R00A)
		• 65 00PLUS (supported by Release 5.1M)
		• 650D (supported by Release 5.0C)
		• Voice feature on the Vanguard 100 (supported by Release 5.2)
6.2R000	Memory Changes for Release 6 2 R000
6.2.R000	Vanguard 342 (Second LAN Port)	The Vanguard 342 is a flexible, high performance RISC based multiservice router
		designed for small branch, and home offices that depend on efficiently consolidating
		serial protocols such as, SNA/SDLC, BSC with LAN traffic over dedicated or
		switched services. The Vanguard 342 offers cost-effective integrated solutions that
		simultaneously supports:
		• Data
		• Fax
		• Voice over Frame Relay and Voice over IP
		• Virtual Private Network (VPN)
		• Broadband access
		• Two 10/100BT LAN Ports (The second LAN port is port 8.)
		The Vanguard 342 includes support for a compression and encryption interface.
6.2.R000	Vanguard 340 Compatible FLASH SIMM Devices are as follows:	4-Meg FLASH Devices
		PN - "EDI7F292MC100BNC"
		PN - "SM70848XA2JIES2"
6.2.R000	Vanguard 342 Compatible FLASH SIMM Devices are as follows:	8-Meg FLASH Devices
		PN - "IW-388DL3-R-120"
		PN - "CT8M8FJV120.M1M"
6.2.R000	Vanguard Point-to-Point Protocol over Ethernet (PPPoE)	Release 6.2 or greater now enables Vanguard 7300 Series, 6435/6455, 340, 342 and
		320 to utilize high-speed WAN access applications with broadband modems. A
		typical environment would be DSL, cable and wireless. For more information, refer
		to the Point-to-Point Protocol Manual (Part Number T0106-08).
6.2.R000	Vanguard 6435/6455 Flash and CMEM Increase	Release 6.2 and greater allows the Vanguard 6435 and 6455 to increase the FLASH
		memory and expand the CMEM area. Existing Vanguard 6435 and 6455’s can be
		updated to 8 Mbyte SIMM as long as the bootprom is also updated. A new
		bootprom is required to support the 12MB Flash option with the 128 kbyte CMEM.
		To use 128k CMEM, 8 Mbyte SIMM must be installed and the bootprom updated.
		Note
		The 8meg SIMM is not officially supported prior to release 6.2, however it can
		be installed in a 6455 running a 6.1 release without harm. It will simply be
		recognized and treated as a "4 Meg SIMM".
		Once a node is running 6.2 with the presence of an 8meg flash SIMM you cannot
		downgrade either the software or SIMM size as the configuration will be deleted.
6.2.R000	Vanguard 6400 Compatible FLASH SIMM Devices are as follows:	4-Meg FLASH Devices
		PN - "EDI7F292MC100BNC"
		PN - "SM70848XA2JIES2"
		8-Meg FLASH Devices
		PN - "IW388X1-R-120"
		PN - "EDI7F492MC120BNC"
		The FLASH SIMM Device Part Number (PN) can be found in small print on the face
		of the SIMM device. For further assistance, please call VanguardMS Service. For
		more information on the Vanguard 6435 and 6455 Series increases, refer to the
		Installing Flash and CMEM section of the 6435/6455 Installation Manual
		(Part Number T0166).
6.2.R000	Vanguard Dynamic Host Configuration Protocol (DHCP)	Dynamic Host Configuration Protocol (DHCP) is a communications protocol that
		allows administrators to automate the assignment of Internet Protocol (IP) addresses
		in a network. Every unit connected to the Internet needs a unique IP address. This
		feature enables the Vanguard to act as a DHCP client and request configuration
		information for a DHCP server. For more information, refer to the Vanguard IP
		Routing Manual (Part Number T0100-03).
6.2.R000	Vanguard Ethernet QoS 802.1 P & Q VLAN Support	A Virtual LAN (VLAN) is a switched network that is logically segmented on an
		organizational basis rather than on a physical or geographical basis. Workstations or
		servers used by a particular work group team, can be connected to the same VLAN,
		regardless of their physical connection to the network. For more information, refer to
		the Vanguard IP Routing Manual (Part Number T0100-03).
6.2.R000	Vanguard Interoperability with RADIUS Authentication	The purpose of Remote Authentication Dial-In User Server (RADIUS) is to enable
		Vanguard routers to interoperate and support RADIUS attributes. Vanguard routers
		are able to act as a RADIUS client. For more information, refer to the Vanguard IP
		Routing Manual (Part Number T0100-03).
6.2.R000	Vanguard 6455 T1/E1 DC/FC Performance Improvement	Increased T1/E1 feature card performance for the Vanguard 6455 is available with
		Release 6.2 and greater software. For more information, refer to the Vanguard 6435/
		6455 Installation Manual (Part Number T0166).
6.2.R000	Vanguard V.90 Daughtercard	A V.90 Daughtercard provides dial back-up for a customers PPP async applications.
		The V.90 enables our service organization to dial in to a customer node and get a
		CTP prompt to configure or debug a customers node. The V.90 Daughtercard
		connects to the Vanguard 320, 340, 342, 6435 and 6455 through a 68-pin connector.
		For more information, refer to the Vanguard Daughtercard Guide (Part Number
		T0020).
