Handenarbeid met hout

Figuurzagen een levenslange hobby

We waren amper een maand gerepatrieerd, juli 1950, toen Vaandrig (Verkennerij) van Steden ons kwam opzoeken in het Opvangcentrum Tollenstraat Nijmegen

Hij was op de terugweg uit Roermond waar hij als jeugdleider de ouders van zijn pupillen had bezocht.

"Vaan" zag hoe wij behuisd waren (vader, moeder en tien kinderen in twee kamers van een houten barak) en zei tegen me: "Jij gaat met me mee naar Zweeloo."

Ik kwam als 11-jarige in een groep van 15-jarigen, die allemaal vriendelijk voor me waren. Met hen leerde ik figuurzagen tijdens de handenarbeidlessen.

Met Sinterklaas 1950 kreeg ik mijn eerste beugelzaag. En ik nam deel aan "De Kleine Academie": eens per week na schooltijd handenarbeid voor de lagere scholen van de Parochie.

Na mijn pensionering meld ik me elk jaar aan voor de houtclub van het wijkcentrum De Schelf te Almelo. We werken er met figuurzaagmachines van Hegner onder de bezielende leiding van Willy Raue.


The name "fretsaw" could refer to one of its original functions: Cutting the very narrow slots across the neck of a guitar or mandolin to insert the thin metal strips known as frets, or to cut the decorative ornamentation that usually accompanied such instruments. (Today the typical fretsaw as used to cut the 'frets' is done with a fine pull-saw)

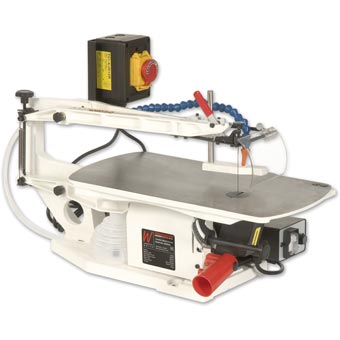

Axminster AWFS18


# Amperage1.8 amps
# Variable Speed Scroll Station
# Cut Length2(50mm) at 0-degree, 1/2 inch (12mm) at 45-degrees
# Weight (lbs.)49 lbs. (22kg)
# Blade Length5 Plain and Pin-end
# Hertz60 Hz
# Stroke LengthStroke 3/4 inch (19mm)


Continu variabel zaagbeweging 400 tot 1400 slag/min; slag: 16 mm


V-riem 4 reducties: 700, 1100, 1270, 1600 slag/min; slag: 14 mm of 22 mm

Detailles van de Polycut-3 Te zien op de site van Advanced Machinery.

HEGNER mainframe parts are crafted from cast iron to provide optimum strength and dampening characteristics, while the light alloy arms afford complete control with minimal reciprocating weight. As a result, HEGNER saws are known for being smooth and quiet. Just as important, their unique blade motion lifts the work less than a typical scroll saw, so using your HEGNER is more comfortable and relaxing than working with a lesser saw. You don't have to hold the work down as hard, so you can saw comfortably for hours, and the reduced friction also increases blade life as well as the quality of your cuts!


Global Machinery Company, Australië, LS1620



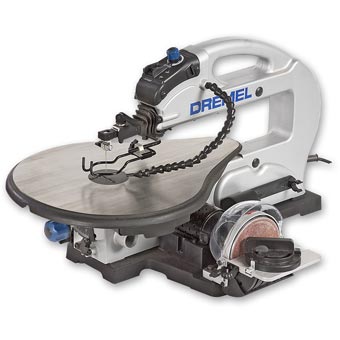

Silicon carbide abrasive is aggressive enough to cut as well as sand in most materials.


Dekupiersäge

Technische Daten

Wie beschikt over krachtstroom moet op marktplaats.nl kijken

Voor een hobbyist onbereikbare machines komen binnen de mogelijkheden....

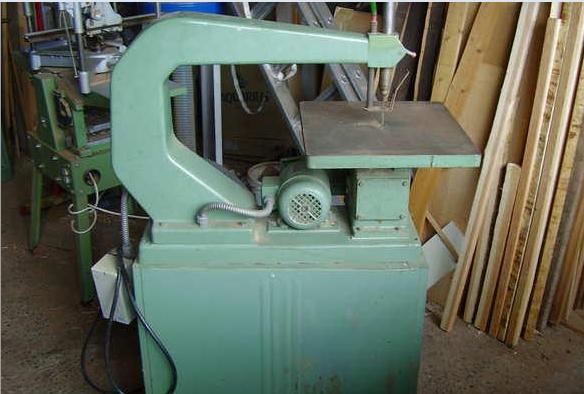

Machinefabriek ABH, Ate Beuving Heerenveen, in de dertiger jaren in het kader van de (her-) ontwikkeling van het Oost-Groningse platte land, verplaatst naar Stadskanaal, voerde een groot assortiment in machinale houtbewerkingsmachines. ABH had een eigen gieterij en daarmee ook een specifiek eigen vormgeving ontwikkeld (bijv. mooi donker rood in de handwielen). In de zeventiger jaren werd ABH overgenomen (Verboom) en nog in ditzelfde decennium was het definitief voorbij. In 2000 stonden de laatste rudimenten van de gieterij nog op het voormalige fabriekscomplex in Stadskanaal. Tegelijkertijd was er in het Streekhistorisch centrum ter plaatse slechts 1 boekje te vinden met een paar foto's van de ABH-bedrijfsgebouwen; al het overige was men al vrijwel vergeten alsof het nooit bestaan had.


Leerzame analyse van het proces figuurzagen. Eclipse Review


Leer the hobbyist kennen: Biografie van een scrallsawyer Rick Hutcheson
Most of the cutting is done on a Delta Q3 scrollsaw with a 5R Olson blade.


Voorbeelden van figuurzaagpatronen: Jenpru's photostream at Flickr


Scroll Saw Blade types include: Skip Tooth, Reverse Tooth, Double Tooth, Spiral, Crown Tooth, Thick Wood, Mach Speed, PGT (Precision Ground Tooth), and Pin End.

There is a choice of tooth styles that includes Regular, Hook, Skip and Skip Reverse. Teeth per Inch vary from the most coarse- 7TPI, to the finest- 25TPI.


Pégas scroll saw blades are manufactured in Switzerland from high quality carbon steel and contain the highest possible carbon content for saw blade applications. Pégas also makes use of a proven fabricating process that produces crisp, sharp, precisely formed teeth. All the blades are heat treated and tempered to maintain uniform grain structure and to achieve the highest hardness possible. This process creates long lasting durable blades, making them the finest in the world. Additionally, all Pégas scrollsaw blades are capable of performing in power saw applications.


Tool Masters (India): Hacksaw cutter
These cutters are produced in high speed steels in a wide variety of diameters and lengths according to the application and machine.Our cutters are utilised to machine all types of bandsaw forms including vari-pitch, hook and positive rake. We produce hacksaw cutters that manufacture fretsaw blades with a pitch as fine as 120 TPI.

Sprunger Brothers 20" belt driven jig/scroll saw, model JS20.

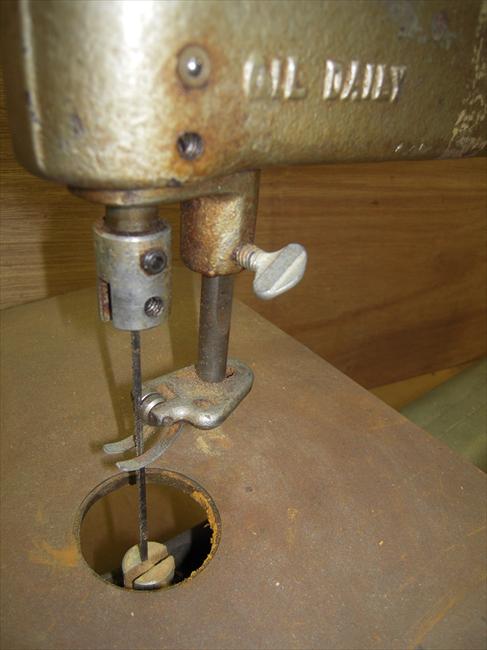

Serial number 74281, dates this machine to 1972, built in the Ligonier Indiana factory. The rotary crank drive mechanism runs in an oil bath. The assembly is enclosed in its own housing and located inside the base casting. The 2" drive pulley bore is parallel to the base and arm. Recommend motor is 1/4 or 1/3 hp, 1725 rpm, with a 2½" pulley. The body is a one piece iron casting. The table is also machined cast iron. The machined steel chuck jaws have an index pin in the back of the slot. This pin aligns the back of the blade during installation (nice feature).





Marktplaats 29apr09 €50,-

SPRUNGER 20" ELECTRIC & BELT DRIVEN JIG SAWS

UNPACK AND INSPECT: The Sprunger 20" jigsaw is a precision built machine, thoroughly inspected and test run before leaving the factory, assuring perfect condition at that time. However, we cannot be responsible for damages in transit. In case of damage you must file a claim at once with your carrier.

ASSEMBLY AND CARE: After being completely assembled and test run the table, table lock and blade are removed and packaged separately in the box.

Assemble table on two pivot pins and insert table lock. Place blade in lowerchuck with teeth hook down. Be sure blade is down and back against pin and in roller guide. Then lock set screw securely. Pull top chuck down on blade, push back against pin, lockset screw securely.

The hardened roller blade guide does not have to be set for different width blades. The tension foot should be set with a light pressure against the work. A few drops of oil on the blower assembly each time machine is used will assure longer and smoother operation. Oiler is located on upper arm on side. This also holds blade breakage to a minimum.

Drive boxes are filled at factory with #30 motor oil. Oil level screw on right side should be checked and filled when necessary.

A few drops of oil on table pivot pins, blade roller, and lock screw will assure ease of operation and longer life.

The motor on the motorized unit should be oiled every three months or sooner if used daily. This is done by tipping saw toward the left, the two holes on the lower right side of base is for this purpose. Do not put over 5 to 8 drops of oil each time.

INSTALLATION: Both machines can be mounted on table, but the belt driven machine must have a hole in table to clear belt, since motor must be mounted below for safety. The machine pulley is completely enclosed in base for greater safety and modern design. Your local Sprunger dealer can supply you with a special engineered steel stand at a reasonable price for your jig saw.

POWER AND SPEED: The motorized jig saw has a self contained motor and is ready for use after assembly and mounting. The belt driven machine comes with 2" diametermachine pulley. Blade speed is approximately 2575 strokes per minute. A l/4 or 1/3 H.P. motor 1725 R.P.M. with a 21/2" pulley will give you the desired speed.Both units run in a bath of oil. Can be used for filing, sanding and other operations adaptable to jig saws.

TABLE: The large precision machined table gives ample support for those small and larger jobs you will be doing on your Sprunger Jig Saw. The table tilts 45° to the right and 30° to the left. When not in use it should be slightly oiled to prevent rust.

The table tilt protractor is located underneath the table and is fastened to the table. The pointer is fastened to the base. To set pointer use a square or a square block of wood. Square table with side of blade, lock and set pointer at zero.

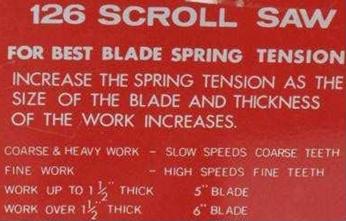

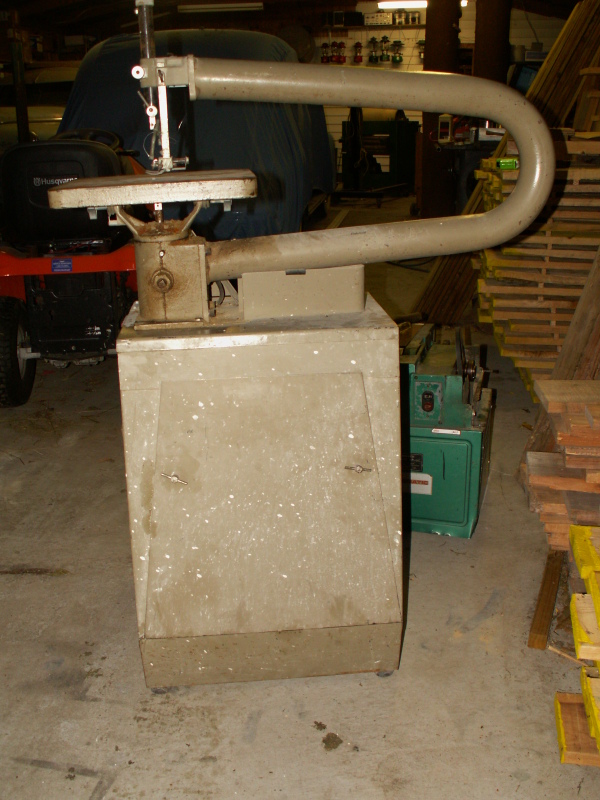

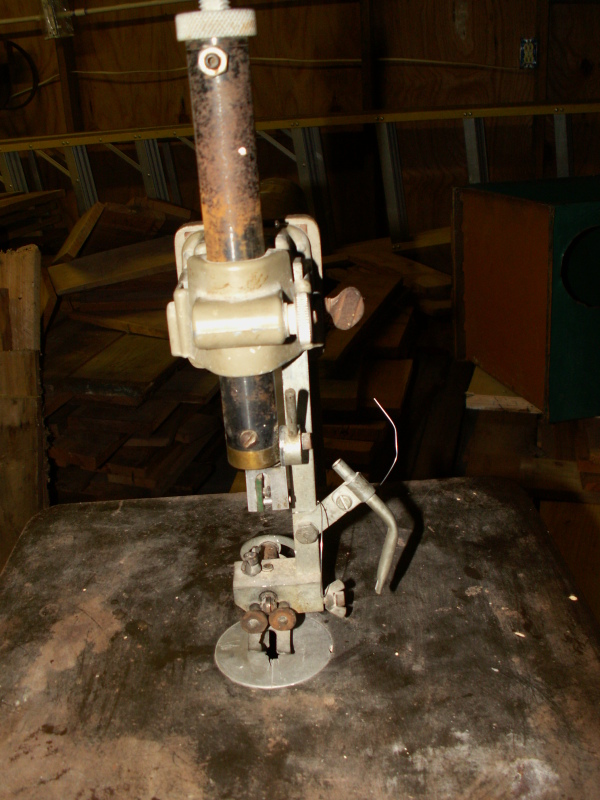

Eigenlijk een Vega 126 Scroll Saw


11/2 inch = 37 mm   5 inch = 12,25 cm   6 inch = 14,7 cm




Ook een figuurzaag...

Te koop: Marktplaats 17okt09 € 75,-
Figuurzaag en vijl machine.
Ideaal voor fijn zaag en strak vijlwerk,gaat razend snel.
Is ook een nieuwe set vijlen bij.
Machine is zo goed als nieuw.
De snelheid is traploos regelbaar.

Miksch jigsaw

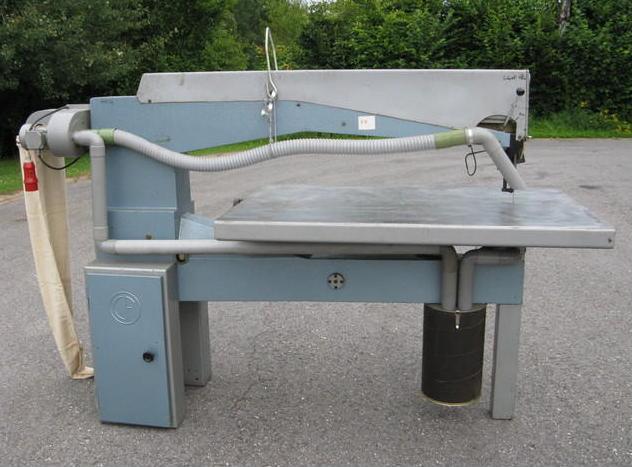

Miksch 5002-150 jigsaw
