Inverter DC Arc Welding Machine

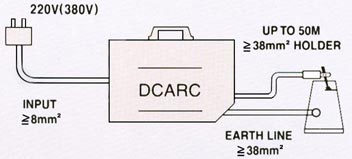

	INVERTER DC ARC WELDING MACHINE - Used for MS, SUS, Copper, etc - Stablity of welding condition - Adjustment of low current welding - Soft Arc start - Low spatter - Deep welding Arc - Power saving (single phase) - Long output holder cable avaiable (max. 50M)
DC-150DP

G E N E R A L S P E C I F I C A T I O N

ITEM	MODEL	DC-150DP	REMARKS
MAXIMUM OUTPUT	A	150
INPUT VOLTAGE	V	220	Optional
INPUT PHASE	ø	1
INPUT FREQUENCY	Hz	50 / 60
INPUT WATTAGE	KVA	5 (4kw)
NO-LOAD VOLTAGE	V	60
LOAD VOLTAGE	V	25
OUTPUT CURRENT	A	10-150
DUTY CYCLE	%	40	At 25°C
PROTECTED SURGE	-	0
CASE DIMENSION	mm	135x325x220	WxDxH
WEIGHT	Kg	9
REMOTE CONTROL	-	-

FEATURES

PROTECTED SURGE BUILT-IN
FOR WELDING OF MILD STEEL, STAINLESS STEEL, COPPER AND OTHERS
STABLE WELDING CONDITION
ADJUSTMENT OF LOW CURRENT WELDING
SOFT ARC START
LOW SPATTER
POWER SAVING (SINGLE PHASE)
LONG OUTPUT HOLDER CABLE AVAILABLE
