VAZ-2108 "Lada Samara" (domestic name - Sputnik) (1984-1996). This is 5 seats, 3 doors liftback. Drive: front, 4x2. Suspension: front - independent (MacPherson struts), rear independent (torsion-beam axle, coil springs). Motor: VAZ-2108 type - gasoline (carburetor), ohc, 4 cylinders in line, displacement 1,289 cc (bore/stroke = 2.99/2.8"), compression ratio 9.9:1. Max. power 63 hp @ 5,600 rpm. Torque 70 ft.-lb. @ 3,500 rpm. 5 steps gearbox, top speed 92 mph, acceleration 0 to 62 mph - 16 s. Brakes: front - disks, rear - drums, with hydraulic control. Measures: LxWxH=13'1.7"x5'3.8"x4'6.3", wheel base 7'10.5". Track front/rear: 4'6.7"/4'5.5". Maneuverability: turning circle 33', ground clearance 6.3". Trunk space is 9.6 (seats up) / 21.3 (seats down) cu. ft. Curb weight: 1,984 lbs. Max. trailer towing weight: 1,962 lbs. Tyres 165/70R13, pressure front/rear 29 p.s.i. Fuel tank: 11.4 gal. Fuel economy: 31.8 mpg (average). Coefficient of drag (Cx)=0.38. Price: $2,700-4,600 (1996 made).
There are variants with different motors: VAZ-21083 and VAZ-21083-20. Plus, there are VAZ-2108-91 with rotary motor and VAZ-210834 "Tarzan" 4x4 model.
VAZ-21083 (s. 1987). It has VAZ-21083 type engine of 1,499 cc (bore/stroke = 3.23/2.8"), compression ratio 9.9:1. Max. power 70 hp @ 5,600 rpm. Torque 81 ft.-lb. @ 3,400 rpm. Top speed 97 mph, acceleration 0 to 62 mph 15.3 s. Fuel economy: 30.6 mpg (average). Price: $4,200.
VAZ-21083-20 (s. 1993). There is VAZ-2111 type engine under its hood: gasoline (single injection), ohc, 4 cylinders in line, displacement 1,499 cc (bore 3.23", stroke 2.8"), compression ratio 9.8:1. Power 71 hp @ 4,800 rpm, torque 87 ft.-lb. @ 2,800 rpm. Top speed 99 mph, acceleration 0 to 62 mph - 14 s. Fuel economy: 31 mpg (average). Price: 4,500.

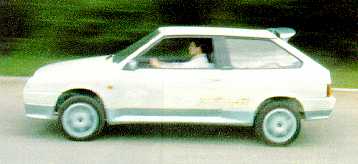

VAZ-2108-91. Engine: [2000 VAZ-21099-91 model data is in brackets] VAZ-415 type, 2 disks rotary (Wankel), gasoline (carburetor), ohc, displacement (brought about piston engine) 2,616 cc, compression ratio 9.4:1. Max. power 120 [135] hp @ 6,000 rpm (redline is 8K). Torque 129 ft.-lb. @ 4,000 [4,500] rpm. 5 steps gearbox and clutchVAZ-2112, top speed 122 [119] mph, acceleration 0 to 62 mph - 8.5 s. Brakes: vent front disks. Tyres R16 [R14]. Fuel economy: 31.4 [29] mpg (at 56 mph), 18.8 [23.5] mpg (at 75 mph). Run to capital repairs - up to186K. Price: + $2,000-2,500 extra [<5,700 total].
There're also VAZ-2109-91, VAZ-21099-91, VAZ-2115 with this engine.
