The Electronic Enterprise
Version 0.05
25th January 1998
Editor: Martin Bryan, The SGML Centre
Contributors: Members of the XML/EDI working group, including Benoít Marchal, Norbert H Mikula, Bruce Peat and David RR Webber.
XML/EDI Group Home Page URL: http://www.xmledi.org
Copyright © 1998. XML/EDI Group. All rights reserved, no part of this document may be commercially reproduced in part or in whole without consent and prior approval.
Addition of figures used in presentation to W3C in January 1998.
Brief explanation of differences in business processes between client-centric electronic business transactions and server-centric web retailing.
Rules templates now linked to messages via a processing instruction rather than XLL simple link (for conformance to way in which style sheets are linked to the message.

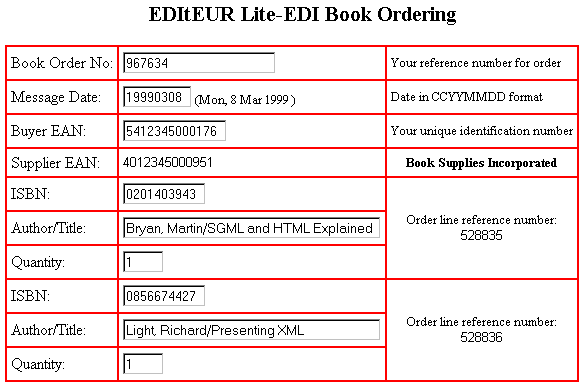

The examples in Annex A have been updated to show an XML book order that can be displayed using Micorsoft's MSXSL beta add-on to Internet Explorer 4.0. On-line link to demonstration software now provided.
Put simply, the goal of XML/EDI is to deliver unambiguous and durable business transactions via electronic means.
Associated with this is a goal to establish a standard for commercial electronic data interchange that is open and accessible to all, and which delivers a broad spectrum of capabilities suitable to meet the full breadth of business needs.
To achieve this requires the use of a methodology that it is not only extensible enough to meet future requirements but also adaptable enough to incorporate new technologies and requirements as they emerge. To ensure broad adoption the technology selected needs to be widely and freely available. The Extensible Markup Language (XML) developed by the World Wide Web Consortium (W3C) provides such a freely available, widely transportable, methodology for well-controlled data interchange.
XML was designed principally for the exchange of information in the form of computer displayable "documents". Not all commercial data is interchanged in a displayable format. In particular data designed for electronic data interchange typically needs to be processed before it can be displayed. For this to be possible the data must be mapped, using some form of template, to a set of processing rules. These XML/EDI guidelines provide a standardized way in which such rules templates can be added to interchanged data.
These XML/EDI guidelines begin by formally defining the terms used in the text. This is followed by an impact statement that makes predictions from various viewpoints. The guidelines then give a background on the tools and standards which XML/EDI is built.
Note: These guidelines form the basis for development work on XML/EDI. They form an precursor to a formal "Specification of an EDI Application for XML". As a document designed to be a lighting rod for ideas, this working document has been, and will continue to be, released in draft form. Comments on this draft should be sent to the XML/EDI working group at xml-edi@riv.be.
Electronic commerce has been defined in the European Workshop on Open System's Technical Guide on Electronic Commerce (EWOS ETG 066) as "Electronic exchange of data to support business transactions, i.e. the exchange of value through the delivery of a product from a seller to a buyer". As such it encompasses much more than what has been possible using traditional methods of Electronic Data Interchange (EDI) such as EDIFACT. Electronic commerce is defined by EWOS as covering activities such as marketing, contract exchange, logistics support, settlement and interaction with administrative bodies (e.g. tax and custom data interchange). Electronic commerce covers all industrial and service operations, including services such as insurance, healthcare, travel and interactive home shopping.
Many people use the term EDI to refer to the set of messages developed for business-to-business communication as part of the United Nations Standard Messages Directory for Electronic Data Interchange for Administration, Commerce and Transport (EDIFACT). EDIFACT messages are transmitted in compressed form, using predefined field identifiers, which must occur in a predefined sequence. While EDI is, strictly speaking, wider in scope than EDIFACT, for the purposes of these guidelines EDI will be used in this restricted sense when not otherwise qualified.
The basic unit of information in an EDI message is the data element. For an EDI invoice, each item being invoiced would be represented by a data element. Data elements can be grouped into compound data elements, and data elements and/or compound data elements may be grouped into data segments. Data segments can be grouped into loops; and loops and/or data segments form business documents.
The EDIFACT standards define whether data segments are mandatory, optional, or conditional, and indicate whether, how many times, and in what order a particular data segment can be repeated. For each EDI message, a field definition table exists. For each data segment, the field definition table includes a key field identifier string to indicate the data elements to be included in the data segment, the sequence of the elements, whether each element is mandatory, optional, or conditional, and the form of each element in terms of the number of characters and whether the characters are numeric or alphabetic. Similarly, field definition tables include data element identifier strings to describe individual data elements. Element identifier strings define an element's name, a reference designator, a data dictionary reference number specifying the location in a data dictionary where information on the data element can be found, a requirement designator (either mandatory, optional, or conditional), a type (such as numeric, decimal, or alphanumeric), and a length (minimum and maximum number of characters). A data element dictionary gives the content and meaning for each data element.
Originally, EDI translation software was developed to support a variety of private system formats. Most often, the sender and receiver were required to contract in advance for a tailored software program that would be dedicated to mapping between their two types of datasets. Each time a new sender or receiver was added to the client list, a new translation program would be needed by the new party to format their data to conform to the standards in use by the participants. Of course, this becomes expensive. Such static systems do not easily allow synchronization of business transactions in distributed business processes that involve global rules, but with participants and actions that are not predetermined. To solve these issues it is desirable to develop automated tools and techniques that are easy to use and allow decomposition of transactions in actions to be performed locally and mapping of local actions onto efficient protocol exchanges.
The Electronic Enterprise

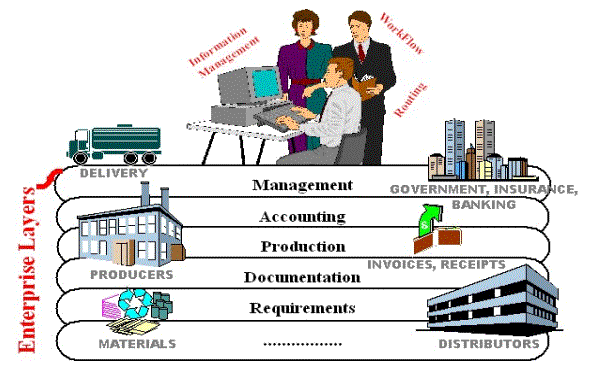

The concept of the Electronic Enterprise requires a transition away from paper form based EDI. Key concepts that are required are the encapsulation of agreed sets of business rules (in EDI parlance the Implementation Guidelines) and also mechanisms to handle state and flow control (such as those provided by hyperlink anchors in HTML files). Also message sets must be able to handle partial information, where the complete information is not yet available, or simply is not required for the particular business process. This allows different parts of an enterprise to selectively contribute only the information that is germane to their business functions.
A fundemental difference between the proposals in these XML/EDI Guidelines and those found in other proposals for XML-based web retailing, such as those covered in the Open Trading Protocol (OTP), is the client-centric nature of the business processes, as contrasted with the server-centric nature of electronic retailing. To distinguish these two terms, we use the term "Electronic Business" to refer to the processes of fulfilling customer requirements through the application of negotiated business processes leading to the supply of manufactured goods to retailers and service providers, and "Web Commerce" to describe the process of selling manufactured goods to consumers.
Electronic business is client-centric in that is starts with a specification of a client's requirements, rather than a statement of what the supplier has to offer. The specification of requirements gets sent to a number of potential suppliers, who are asked to tender for the business by a predefined date/time. The purchaser is, as a result of this process, provided with more than one choice, and must determine which quotation to accept. This may require a period of contract negotiation to ensure that adequate terms and conditions, including delivery criteria, are met. This may require a looping of the processes, with a need to cross-refer between successive documents.
Once the purchaser has selected a supplier the business processes involved are very similar to those involved in web commerce, but there are subtle differences. For example, electronic payment before delivery is unlikely to be required for electronic business transactions. Instead of being an integral part of the negotiation phase, with payment being made at the time the order is placed, payment in the electronic business scenario is a separate process that occurs immediately after delivery. This introduces concepts such as statements, which do not occur in web commerce scenarios.
XML is the Extensible Markup Language subset of ISO's Standard Generalized Markup Language (SGML) developed by the World Wide Web Consortium (W3C) SGML on the Web working party during the latter half of 1996 and early 1997. The formal recommendation was submitted for approval by W3C members on 8th December 1997.
On 10th September 1997 a proposal for a new form of XML Style Language (XSL), which incorporates the ECMAScript standardized variant of JavaScript, was published by a consortium led by Microsoft, ArborText and the Inso Corporation. This version of the XML/EDI specification uses the power provided by this new advanced language combination to show how control of XML/EDI document processes can be achieved in a distributed manner.
In October 1997 a specification for a formal Document Object Model (DOM) for XML documents was published by W3C. This model provides a standardized API for XML-based tools.
Combining XML and EDI to develop XML/EDI suggests that the main method of capturing and coding EDI information will be through XML-coded electronic forms. At present the form handling characteristics of XML are yet to be fully agreed (agreement is expected during 1998). To allow interaction with existing sytems the XML/EDI Guidelines show how EDIFACT messages can be generated from XML/EDI forms, and vice versa.
XML/EDI isn't creating a new standard. XML/EDI is defining how companies can use current standards to solve their business problems.
Detail of the scope of XML/EDI, and the impact it is expected to have on business communities, are covered in Introducing XML/EDI.... To help readers of this document to appreciate the differences in practice between traditional EDIFACT-based web transactions and XML/EDI this section discusses some of the differences between traditional business-to-business electronic data interchange systems and the new breed of interactive electronic business tools being provided through the Internet.
Electronic Data Interchange (EDI) has been used for business-to-business communication for almost a quarter of a century. Initial efforts involved inter-company agreements on how to exchange commercial data, initially as information stored on tape and later as messages sent over dedicated data lines. To avoid having to use different protocols to move data between different companies, various industry groups identified sets of data that could form the basis of individual agreements. The industry groups also sought to agree the format in which fields in such data sets were interchange so that a company only needed to develop one methodology for decoding information received without resource to human intervention.
The Achilles Heel for this approach has always been two fold. Firstly, companies require flexibility in, and wish to deviate from, doctrinaire standards that do not fully meet their business needs. Secondly, because the standards are pre-ordained there is no mechanism provided to transfer processing rules and associated information. It is assumed that the data meets the defined constraints and if not, has been duly modified to conform. This means that companies must conduct exacting analysis to determine precisely how they are going to move their business data to and from the predefined EDI formats. The cost of these constraints has been borne as excessively long and complex implementation cycles for traditional EDI systems.
The world has changed from thirty years ago, and now requires more dynamic and vibrant services that match the organized yet ad hoc nature presented by both modern business practice, and particularly its manifestations on the Internet. The Internet is re-writing the rules on how people interact, buy and sell, and exchange goods and services. In particular the Internet is showing us that EDI is not only relevant for business-to-business communications. The same concepts are also relevant for all consumer-to-supplier relationships, whether the consumer is an end-user, a manufacturer, a service organization such as a hospital or a hotel, a governmental organization or a virtual organization.

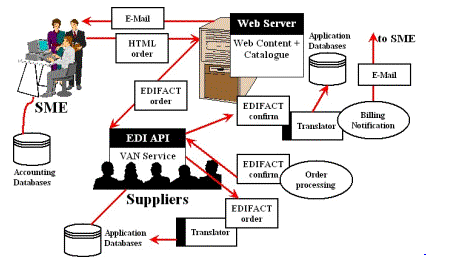

Electronic Commerce in 1997
With the arrival of the Internet in the last decade of the 20th century the pattern of electronic commerce has dramatically changed. In particular, the Internet has introduced many new ways of trading, allowing interaction between groups that previously could not economically afford to trade with one another.
Whereas previously commercial data interchange involved mainly the movement of data fields from one computer to another, without human intervention, the new model for web-based commerce introduced by the Internet is typically dependent on human interaction for the transaction to take place. The new model is based principally on the use of interactive selection of a set of options, and on the completion of "electronic forms", to specify user requirements.
As this new model develops there has been a fundamental shift in how data used for commerce should be processed. The original create-->transmit-->receive-->process cycle of information processing, using individual programs, is beginning to be replaced by the concept of active objects which have inherent processes associated with them, based on the class of information they contain. Today an invoice may no longer contain a copy of the information stored in the database it was generated from: instead it contains a pointer that says where it expects to get the data from, and this data will be fetched from its managed source each time the invoice is processed.
Such interactive programs require us to review the underlying philosophy of electronic commerce. What are the characteristics of a system designed for "electronic business transactions" in an international marketplace?
To be truly interactive you need to be able to:
To do this you need to be able to:
Because these interactions can be complex, and potentially require specialized knowledge, the rule templates can be supplemented by XML/EDI data manipulation agents (DataBots) to ensure that users can express their requirements in high-level, natural language, terms. DataBots automatically create appropriate rule templates and XML syntax to match user requirements and broker the entire interchange.
When DataBots are being used XML/EDI is identified as being robot generated by adding an R to its name to become XML/EDI-R.
At this point in time the ECMAScript subset of the Java programming language provides the vehicle that permits the DataBots to be deployed and received along with XML/EDI messages.

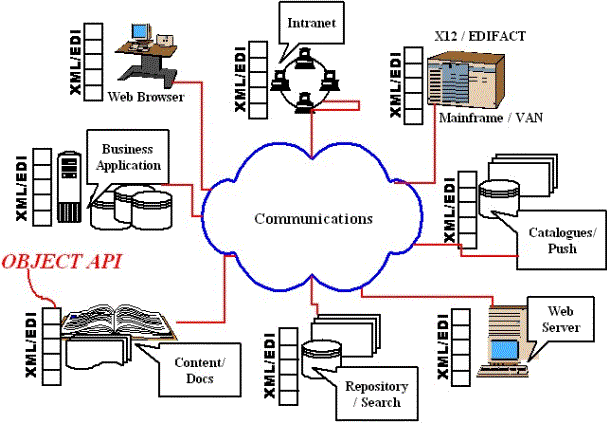

Future based on XML/EDI
XML/EDI is a synthesis of many concepts. XML/EDI:

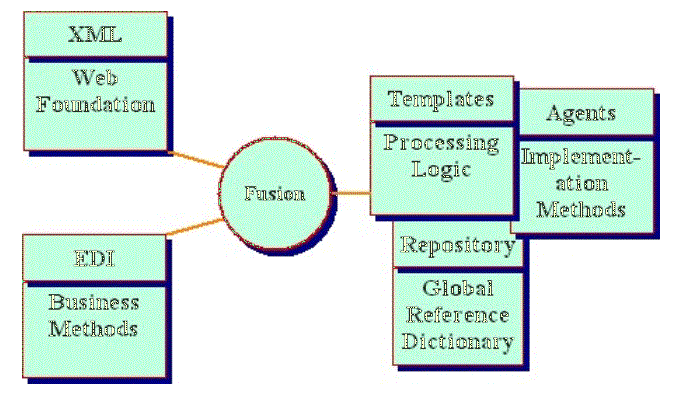

XML/EDI can be seen as the fusion of five existing technologies:
The Five Technologies of XML/EDI
XML will be native language for the next generation of most of the popular WWW browsers. XML/EDI seeks to leverage the work and support (technically and financially) which XML is receiving. With traditional EDI, the infrastructure was built from the ground up, without being able to share resources with other programs. This paradigm is no longer appropriate in today's world of shared software development. By adopting XML/EDI, the EDI community can get to share the cost of extension and future development.
In 1986 the International Organization for Standardization (ISO) published an international standard defining a Standard Generalized Markup Language (SGML) that allowed its users to:
SGML has formed the basis of many of the large, multinational, documentation projects that have developed in the decade since its publication. It also formed the basis for the formalization of the HyperText Markup Language (HTML) that led to the formation of the World Wide Web of documentation that has become available on the Internet.
Key to the success of HTML was the development of the concept of Uniform Resource Locators (URLs) that allow users to identify the source of each piece of shared data in a consistent manner. Whilst the original concept has limitations as to the granularity of data access, its universality has greatly improved computer-to-computer communications.
In July 1996 the World Wide Web Consortium (W3C) set up a working group to study how SGML could be simplified to allow for its efficient use over the Internet. The result was the development of an Extensible Markup Language (XML) that combined the expressive power of SGML with the Internet-aware functionality of HTML.
XML provides an ideal methodology for electronic business because:
XML can be integrated with existing EDI systems by:
XML can extend existing EDI applications by:

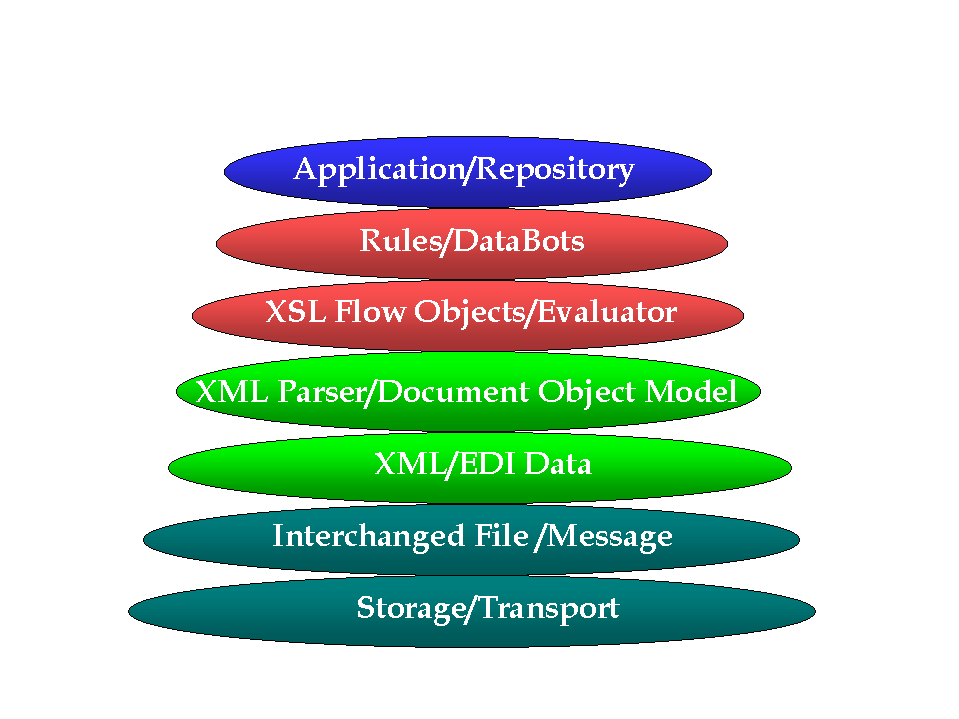

The following figyre illustrates the main layers of a fully integrated XML/EDI system.
The layers of an XML/EDI system
The XML/EDI specific components are built on top of existing standards for transmitting and processing XML-encoded data. These standards define shared features such as:
XML parsers, document browsers, page markup programs and related software functions are available of-the-shelf today. XML/EDI isn't, therefore, a new standard; it simply provides a framework for using existing standards to tackle existing problems in a new way.
XML/EDI specific components will either manifest themselves as built-in components into existing products, plug-in programs to existing tools or standalone applications. It is anticipated that new applications will be created from the spark of XML/EDI implementation.
The following examples of the type of facilities that could be built into an XML/EDI implementation isn't comprehensive, but a starting place for discussion:
Each of these options is explained in more detail in the following subsections.
A primary component of XML/EDI is its dynamic common language and syntax repository. The various type of repositories include:

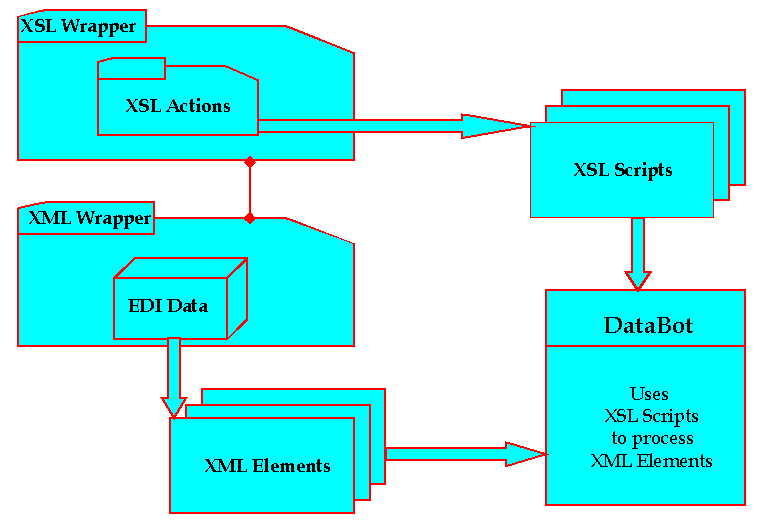

The central goals behind the development of the concept of DataBots are:
All these goals are realizable using XML/EDI-R.
DataBots and their associated XSL scripts provide facilities that allow XML/EDI systems to:
It should also be noted that the template method that XML/EDI DataBots implement is extremely compact and concise. This means that it is a low-bandwidth, efficient protocol, which is required to meet high volume constraints in batch EDI delivery systems.
Some additional considerations also need to be taken into account include Process Control and Object Oriented support. Process Control can be easily accommodated using through the trend towards the use of the Integrated Computer Aided Manufacturing (ICAM) Definition Language (IDEF) process modelling language or Documented Petri Nets. Developers can either assign XML tokens to IDEF entities, and then process control lines added to the template format, or IDEF can be defined as a notation that can be processed by an XML/EDI-aware browser. Object oriented support can be provided through W3C's Document Object Model (DOM), which provides a CORBA IDL definition for XML objects.
Editor's Note: To do - explain how Documented Petri Nets could be used.
In summary, the optional DataBots component provides the agent that brokers, controls, corrects, directs and ensures that the XML/EDI-R method can progress information transfers correctly.
XML/EDI business objects will be available off-the shelf, created by developers, with rule sequences devised by users. The usage of these objects can be defined by their sphere of influence. Business objects can be:
Business objects, in most but not all cases, will be invoked by the XML/EDI Data Manipulation Agents. It is anticipated that for efficiency these object manipulation DataBots will be written in Java, or using similarly dirstributed programming language tools. End-users will be supplied with tools that automatically generate the relevant agents from information provided about the application.
Below are just a few examples of the many possible classes of XML/EDI business objects:
Used for the interactive creation and completion of form-based EDI, XML/EDItors are predicated to become the front-end for business applications. XML/EDI editors will reference Lexicon Repositories to prompt users for appropriate data using XML parse trees to request related fields.
It is anticipated that message stores will require extensions to provide the types of complex workflow management needed to ensure the correct delivery and processing of XML/EDI messages. For example, a message store should not be able to acknowledge receipt of a message until its contents have been parsed by an XML parser to ensure that the unencrypted data stream still forms a valid message.
In time it is anticipated that message stores will mutate to use XML natively. This is not because of XML/EDI directly but because message stores that know how to identify, search for and process objects within multimedia streams or business messages will be required for a wide range of application scenarios.
Based on ad-hoc, learned or profiled information, search engines will recognize XML/EDI specific tagging and be able to reference suitable private and public message stores, using standard WWW interfacing, to extract data intelligently. This will allow for the best combination of free-text and fielded search. Catalogs and buyer agents will be among the first to use XML/EDI technology in this way.
XML/EDI will use a mix of today's X.500 technology, security certificates, "yellow pages", Email look-up, and verified characteristics of entities. This is a critical component of performing business, much more so when employing electronic means. Subsystems will undoubtedly develop along these lines: they will have to support XML/EDI interfacing of basic CRUD functions (Create, Revise, Update, Delete) as a minimum. XML/EDI Data Manipulation Agents shall be able to draw upon these resources to validate transactions.
The following stages are involved in using XML for the interchange of commercial EDI messages:
An application does not need to use all of the levels of processing shown in Figure 1 and the above list: it can stop at whichever level in the hierarchy suits it. For example, an application can confine itself to checking incoming and outgoing EDI messages using a document object model that has been formally defined in an XML DTD.
Identification of data sets for electronic business transactions will often be the responsibility of industry associations and various standardization bodies such as UN/EDIFACT and EBES (the European Board for EDI standardization).
Whereas existing EDI definitions are primarily concerned with the way in which a set of fields forms a message, the concepts required for XML/EDI are based more on the definition of independent classes of information that can be combined together with other classes of information to form interchangeable messages. As such the concepts are more akin to the idea of a Basic Semantic Repository (BSR) being proposed by ISO, and of the Business Systems Interconnection (BSI) proposal from University of Melbourne.
There is, however, one basic difference between using XML/EDI for defining data classes and using the BSR or BSI methodologies. In XML/EDI the order and number of subclasses of a data class can be altered by message creators without having to formally register that fact with any centralized organization. For example, if it was necessary for an application to separate building numbers or names from information about the street the building is located within, XML/EDI would allow system developers to define two new subclasses that would be combined to provide the information needed for an existing EDI address component.
One of the advantages the accrues from XML/EDI's ability to subclass fields is that such fields can be developed interactively using information supplied from more than one location. For example, telephone order processing systems in today's world of electronic business transactions often start by asking users for their postcode. This tells the system which region, town and street the user is located in, but not which building they are in. To find this out you need to ask the user for a number or name that uniquely identifies the building within the street identified by the postcode. Using these two related pieces of information it is possible to interactively complete a standardized class of information, an address, that can then be shared by an order, its delivery note, and the invoice required for settlement.
Once information has been captured once, and used to create an instance of the relevant class of data, it should not be necessary to recreate the information each time it is required. All that should be needed is that business processes that need this information reference the point at which the data was originally captured, e.g. the address associated with the order for the goods.
An essential precursor to the design process of an XML/EDI application is a study of how business processes re-utilize stored information. Where suitable business models already exist, these can be represented in XML form. Where there are no existing model, or the existing models do not meet the requirements of the trading partners for some reason, developers should perform a full analysis of the relevant business processes, and seek to identify similarities between these processes and those already formally documented for use by other applications. Knowledge of the source and contents of public repositories of resusable data segments will help to simplify this process. One of the goals of XML/EDI, therefore is to encourage the setting up of such repositories of knowledge.
To ensure that users can guarantee the long-term maintenance of data set components repositories of formal XML definitions will need to be created, and unique object identifiers will need to be assigned to each set of components. While initially testing can be done using system identifiers that resolve to Internet Unique Resource Locators (URLs), in the longer term a mechanism for identifying shared data sets using formally registered SGML public identifiers associated with URLs will need to be developed. A system for resolving public identifiers to obtain copies of the registered definitions will also be required.
Messages that pass between systems will typically conform to a previously agreed XML document type definition (DTD) that formally describes, in terms interpretable by both humans and computers, an internationally accepted message type.
Note: The structure of XML DTDs and document instances is formally defined in Extensible Markup Language (XML). A bried introduction to the components of XML can be found in An Introduction to the Extensible Markup Language. More complete information on the the structure of SGML DTDs, including those that implement the Web SGML extensions, can be found in Web SGML and HTML 4.0 Explained, which contains examples of the use of each of the constructs used in SGML and XML, and explains how these facilities are used within HTML.
Warning: The following text presumes some knowledge of SGML and/or XML.
XML DTDs can be developed by:
Declarations that form a standardized XML DTD will typically be stored in separate files, which can be referenced, as an XML external subset, by those wishing to use it through the Internet Uniform Resource Locator that its originator has assigned to a publicly available copy of the data. Alternatively, if public access is to be restricted, the document type definition can be stored as the internal subset within the document type definition sent with the message.
Where the document type definition is based on classes of information shared by more than one message, each class of information can be defined in a separate file, known in XML as an external entity, these files being referenced in a suitable sequence from within the external or internal subset of the XML DTD.
For example, an XML DTD could have the form:
%address; %items;
This DTD fragment defines two external and one internal parameter entity,
four locally defined elements and contains two parameter entity references (%address;
and %items;) that call in the contents of the external entities at
appropriate points in the definition. Both of the parameter entity references
are preceded by explanatory comments.
Note that the source of each class of information is identified not in the
call to the class itself (%address;) but within a formal
definition of the data storage entities required to process the class
definition references (e.g. the first two lines of the DTD). This technique
allows files to be moved without having to change the main definition of the
DTD.
Typically the entity definitions will be stored outside the DTD, which will contain a reference to the URL of the point at which the latest details of library file locations can be found. For example:
%library; %address; %items;
where %library; references a file containing the entity
definitions given at the start of the previous example.
XML provides (experimental) facilities for ensuring that data modules taken from libraries do not introduce name clashes in their elements. The names of elements within each module can be qualified by a module (namespace) identifier. Each namespace identifier can be associated with a URL that uniquely identifies where the module is formally defined. For example, the contents of the library file referenced above could be defined as:
"> ">
XML permits entities and attributes that are defined in the external subset to be redefined in the internal subset. This facility allows XML/EDI users to develop locally significant subclasses. It can also be used to create subsets of messages by removing unused fields from the data model.
For example, the internal subset of a DTD based on the above standardized
DTD could contain the following local redefinition for the %items;
parameter entity:
">
In this case the optional item:database-key field could
contain a direct pointer to the database entry from which the EAN and associated
product name were obtained. This key could be used by a DataBot to process the
item information without having to generate a query based on the EAN normally
provided by the identifier field as the basis for a
slower-to-process database query.
An XML/EDI electronic business message consists of a pointer to the document type definition, any definitions required in the internal subset of the DTD, and entries for each of the fields required for the message. For example, the following document type declaration could be used to extend the external DTD shown in the first of the examples shown above, which is identified by its Internet Unique Resource Locator:
