MISC FLOW CHARTS
These numbers were copied from http://users.erols.com/srweiss/tablehdc.htm#Chrysler, and converted into flow charts.
These numbers were taken at 28 inches water.

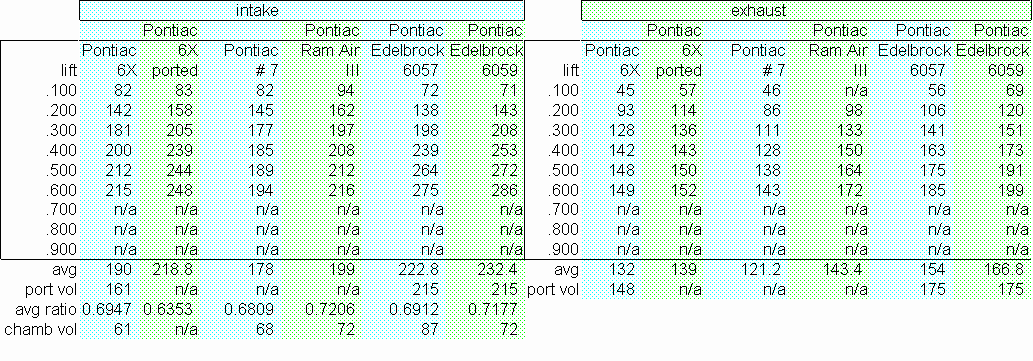

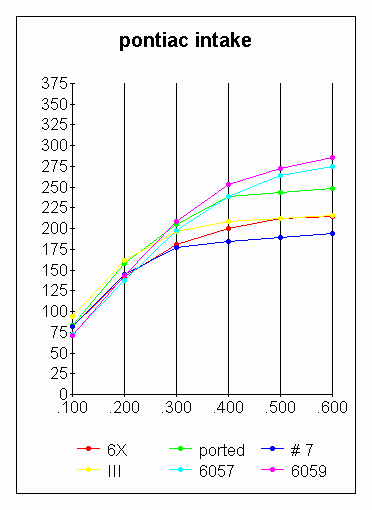

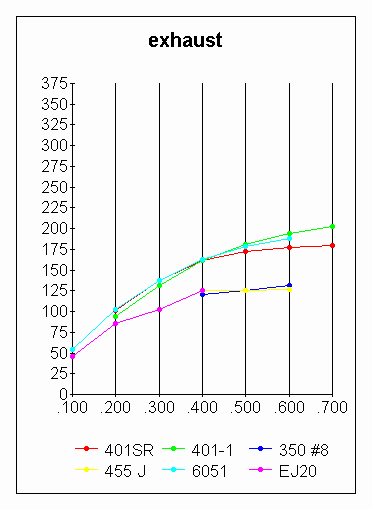

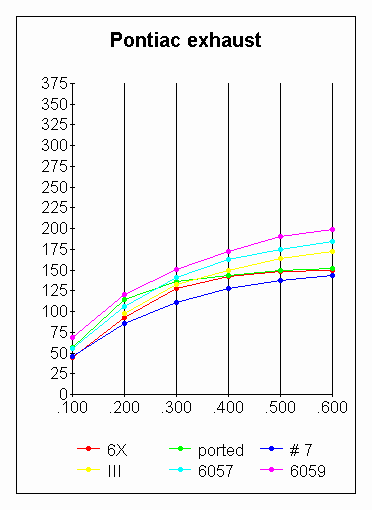

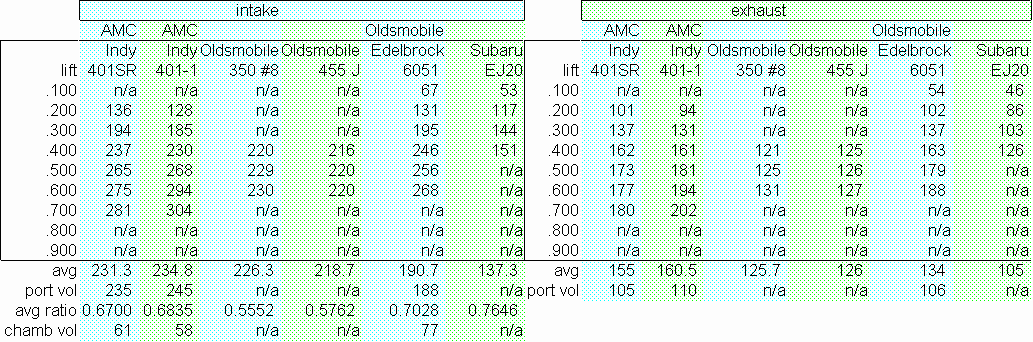

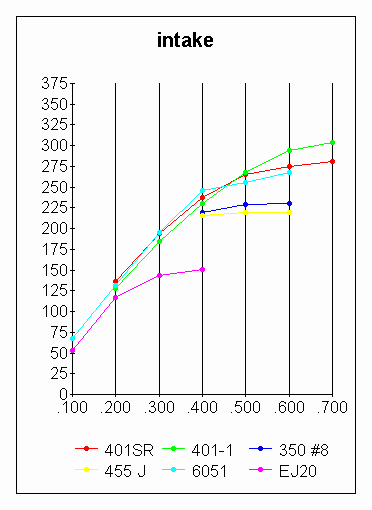

In the charts, the flow ratings are the vertical numbers and the horizontal numbers are the lift in inches.
