- Forward Scatter Meteor Detection
- of the Space shuttle STS-90
- Norman Davis
- Position 38 Dec 41'12"/120 Deg.. 57' 33" Shingle Springs, Ca
- Receiving Setup Icom R7000, Antenna: 3 element Beam looking up 40 Degrees
- Looking east.
- Receiving Frequency 67.249 Mhz USB mode
- 10 DB pre amp at antenna.
- Audio from R7000 analyzed via Sound blaster AWE-64 sound card and FFTDSP
- Software
|
|
 |
| May 3 1998 |

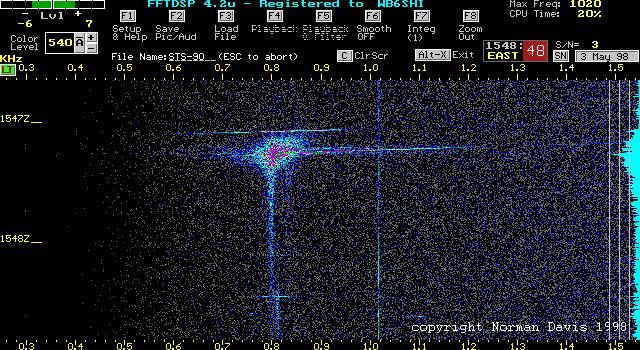

The above Pix was of the over flight of Shuttle mission STS-90. It was
reentering the earth atmosphere just north of my location at a approximately
238 thousand feet and the orbiter had a velocity of 22,000 ft/sec. Thanks
to Ken Webb Senior Test Project Engineer at NASA for this info. A Wav file
was also recorded of the above Pix and is available for download.
sts_d.wav.
Preliminary Analysis by Jim Richardson.
For more information on the Software that took this picture check out Mike Cooks Web page at http://www.webcom.com/~af9y/
- The above Pix is one taken during a full blown radio
meteor peak. Can anyone tell me what the sweeps are that climb in frequency
the drop back to the center?
